1.Automatic folding and sealing of the carton in one go.The machine uses a pneumatic device to automatically fold the rear cover in,which is reliable,easy to operate and maintain.
2.The height of the sealing rack is adjustable,and the position of the lifting handle is ergonomic,which makes it more comfortable to adjust the height of the sealing rack.The width between the conveyor belts is adjustable, which can fix the position of the box,so that the tape seals in the center, and the sealing is firm and beautiful.
3. This machine can be used alone or in conjunction with an assembly line.
 |

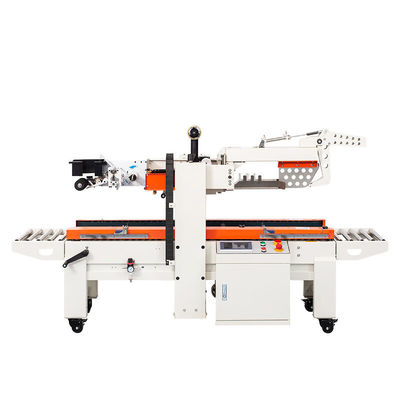

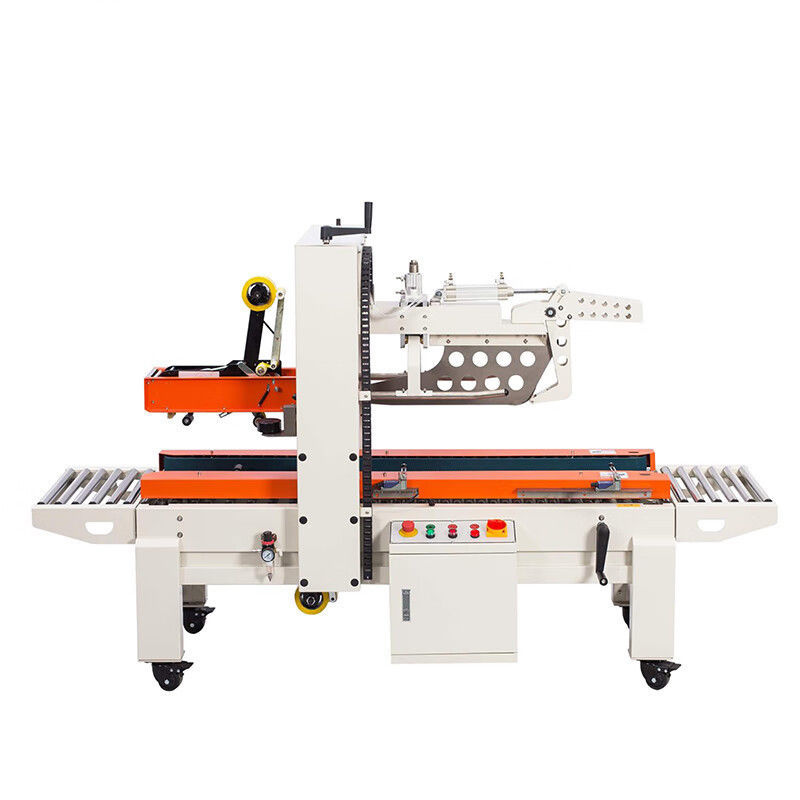

Work Table 600-700mm Flaps Folding Carton Sealing Machine with 28m/min Sealing Speed
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $4,399.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Commodity, Chemical, Machinery & Hardware, Beverage | Packaging Type: | Cartons, Case |
|---|---|---|---|
| Packaging Material: | Carton | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric | Voltage: | 220v, 220V/50HZ |
| Dimension(L*W*H): | 1830*670*1230mm | Weight: | 106 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Core Components: | Other | After-sales Service Provided: | Video Technical Support, Online Support |
| Model: | DFXZ-3030IG | Power: | 500W |
| Max Carton Size: | W300*H300*L350mm | Min Cartron Size: | W80*H90mm |
| Sealing Speed: | 28m/min | Tape Width: | 30mm/45mm |
| Dimension: | L2410*W745*H1200mm | Label Size: | Foldable Sticker Size,20-75mm Width |
| Work Table: | 600-700mm | ||
Product Description
Products Description
Product Feature:

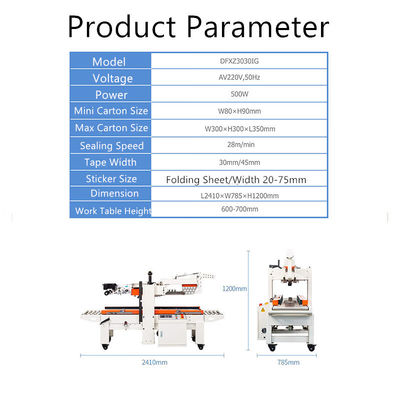

Product Parameter
Model | DFXZ-3030IG |
Voltage | 220V/50HZ |
Power | 500W |
Max Carton Size | W300*H300*L350mm |
Mini Carton Size | W80*H90mm |
Sealing Speed | 28m/min |
Tape Width | 30mm/45mm |

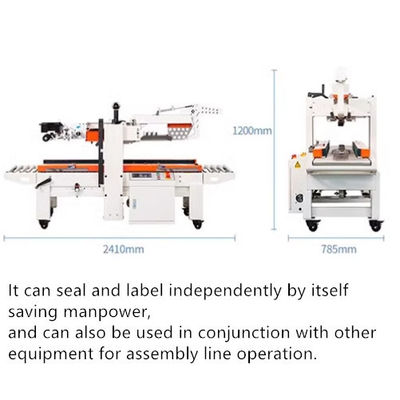

Dimension | 2410*785*1200mm(L*W*H) |
Label Size | Foldable Sticker,20-75mm Width |
Work Table Height | 600-700mm |
Product details
Recommend Products
Certifications
Packaging&Shipping
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical services, relying on technology to provide customers with packaging equipment solutions.
The company's main products are: granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, packing machine, palletizing machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc. packaging machinery and supporting production lines.
Our products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries. After several years of development and growth, the company has established a sound sales network and service network, products sold well throughout the country, and exported to Europe, America, Southeast Asia and other countries all over the world
Over the years, our company has been praised and appreciated by the vast number of new and old customers in line with the purpose of "high quality and perfect service". In order to thank the vast number of new and old customers for their great love for Yifei packaging machinery, we solemnly promise that we are willing to repay our customers with the management concept of high quality and high service.
Warmly welcome You to Y-F Packaging Machinery for inspection and business negotiation.
Want to Know more details about this product
