The system consists of carton erector,automatic carton folding sealing machine and corner sealing . It is full automatic control and reliable working, convenient operation and simple maintenance while, all machine can be used separately. This carton Packing Line is widely used in food, medicine, beverage, tobacco, daily chemical and other domestic and foreign industries.
 |
Automatic Pneumatic Box Bottom Case Erecting Machine for Corrugated Carton Packaging
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $6,500.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Warranty: | 1 Year | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Condition: | New | Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles |
| Packaging Type: | Cartons | Packaging Material: | Paper |
| Automatic Grade: | Semi-automatic | Driven Type: | Pneumatic |
| Voltage: | 220V/50HZ | Weight: | 1025 KG |
| Dimension(L*W*H): | 1900x2080x1492mm | Key Selling Points: | Easy To Operate |
| Model: | YPK-09 | Unpacking Speed: | ≤12Pcs/Min |
| Apply Carton Length: | 200-500mm | Apply Carton Width: | 150-400mm |
| Apply Carton Height: | 120-350mm | Tape Width: | 48/60/72mm |
Product Description
Products Description

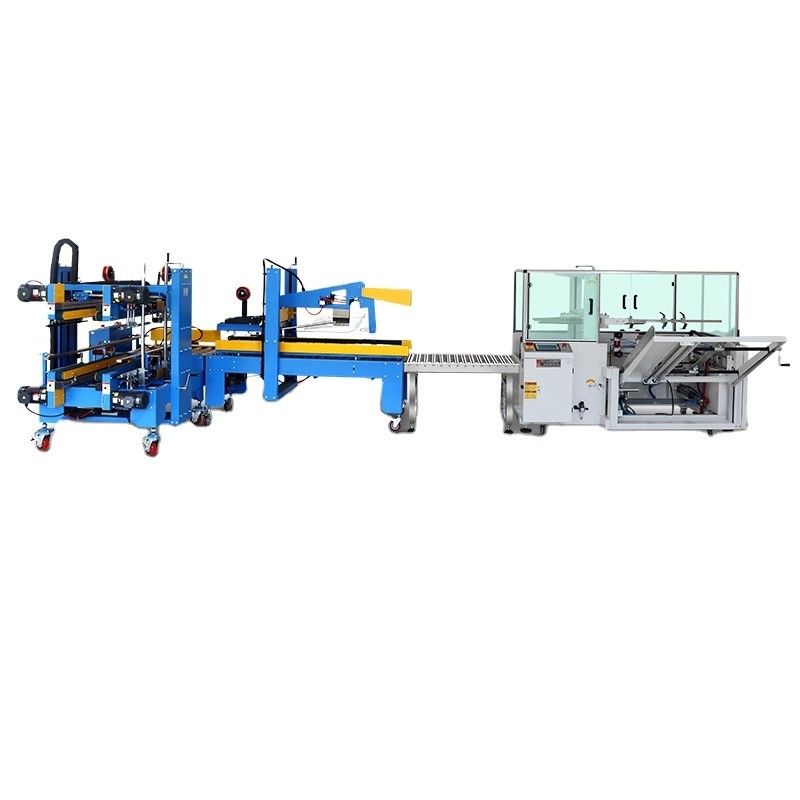

Full Automatic Carton Packing Line
Product Paremeter

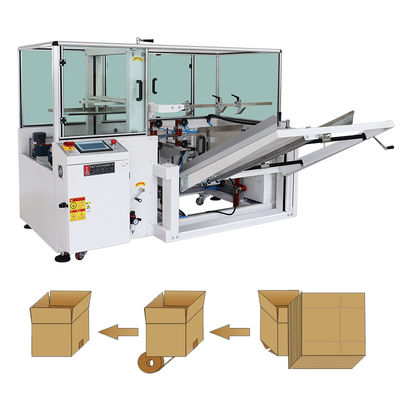

Carton Erector
Automatic carton erector set auto unpacking, folding of the bottom cover,sealing carton bottom,machine using PLC Intelligent
control panel+ man-machine interface control,folding bottom does not stay,box sealing at the same time to complete the suction,molding,folding bottom,sealing the whole process.
control panel+ man-machine interface control,folding bottom does not stay,box sealing at the same time to complete the suction,molding,folding bottom,sealing the whole process.
Model | YPK-09 | YPK-09M | YPK-09Z |
Unpacking Speed | ≤12pcs/min | 4-10pcs/min | 15-18pcs/min |
Carton Size(L*W*H) | 200-500*150-400*120-350mm | 250-650*150-500*120-500mm | 200-450*150-400*120-350mm |
Machine Size(L*W*H) | 1900*2080*1492mm | 2150*2080*1492mm | 2460*2080*1492mm |
Table Height | 620+50mm | 620+50mm | 620mm |
Power | 200W | 240W | 640W |
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Adhesive Tape Width | 48/60/72mm | 48/60/72mm | 48/68/75mm |
Weight | 450kg | 500kg | 500kg |

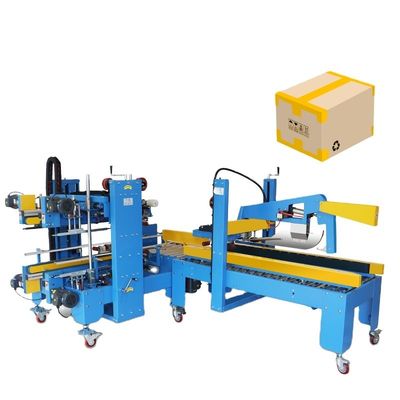

Automatic Folding Sealing Machine
Automatic fold flaps carton sealing machine will automatically folds the upper cover and automatically pastes the tape up and down without manual work,the use of instant adhesive tape carton for sealing not only has a beautiful sealing effect, but also has a firm sealing.
Model | FXJ-5050Z |
Tape Specification | 48-75mm |
Sealing Speed | 0-20m/min |
Table Height | 600-800mm |
Max Carton Size(L*W*H) | 600*500*500mm |
Min Carton Size(L*W*H) | 200*200*160mm |
Power | 400W |
Voltage | 220V/50HZ |
Driving Mode | Left-Right Driving |
Weight Of Machine | 125KG |
Barometric Supply | 2/3L,5kgf/cm2 |
Machine Size | 2680*900*(1480-1680)mm |
Corner Sealing Machine
Fully automatic carton corner sealing machine, brand configuration, wide sealing range, high sealing efficiency, beautiful
packaging
Model | FXJ-555H | FXJ-755H | FXJ-766H | FXJ-877H | |||
Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | |||
Work speed | 500-750Pcs/H | 500-750pcs/h | 500-750pcs/h | 500-750pcs/h | |||
Power | 1KW | 1KW | 1KW | 1KW | |||
Tape width | 48/60/72mm | 48/60/72mm | 48/60/72mm | 48/60/72mm | |||
Machine size | L1900*W1200*H1530mm | L1900*W1200*H1530mm | L1900*W1200*H1530mm | L1900*W1200*H1530mm | |||
Carton size | L 320-500mm W 180-500mm H 190-500mm | L 320-700mm W 180-500mm H 190-500mm | L 320-700mm W 180-600mm H 190-600mm | L 320-800mm W 180-700mm H 190-700mm | |||
Product Details

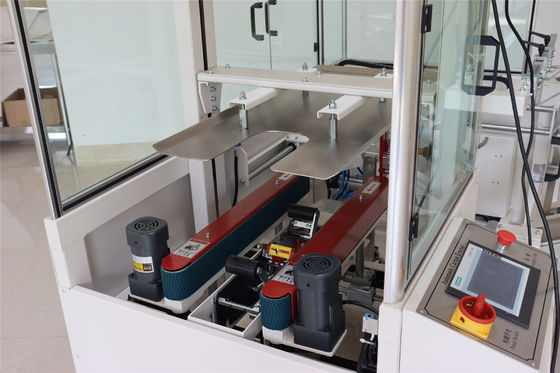

Carton Erector

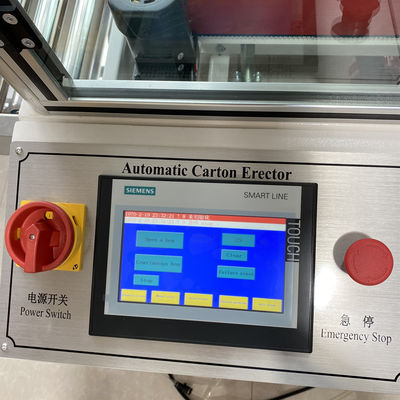

Intelligent control panel, intuitive interface, easy to operation with emergency stop switch, convenient and safe
Siemens PLC control, it is durable and stable with long service life and high efficiency
Adopt Taiwan Air TAC brand, the machine runs stably and has a long service life, reliable quality
Automatic Folding Carton Sealing Machine
Filter regulator,ensure smooth pressure output
Stabilize brake casters, any sliding, can also drop the wheel fixed up, not easy to slide

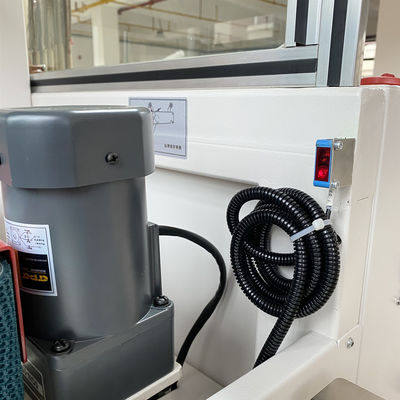

Double motor power, strong, smooth delivery and long life
Corner Sealing Machine
The belt replacement is simple and convenient, the transmission design of sealing head is reasonable, and the sealing is more
smooth
The advanced sealing parts are used to flatten the protruding part of the carton, so that the adhesive tape is attached to the surface of the carton, cut flat, beautiful, firm and wear-resistant
Equipped with sensor device, it can realize photoelectric detection and automatic alarm function, and can completely unmanned
packaging operation
packaging operation
