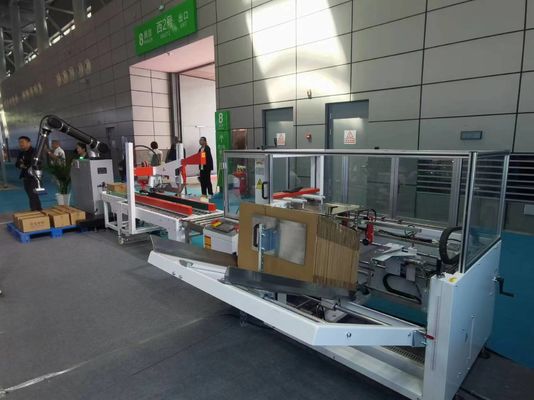

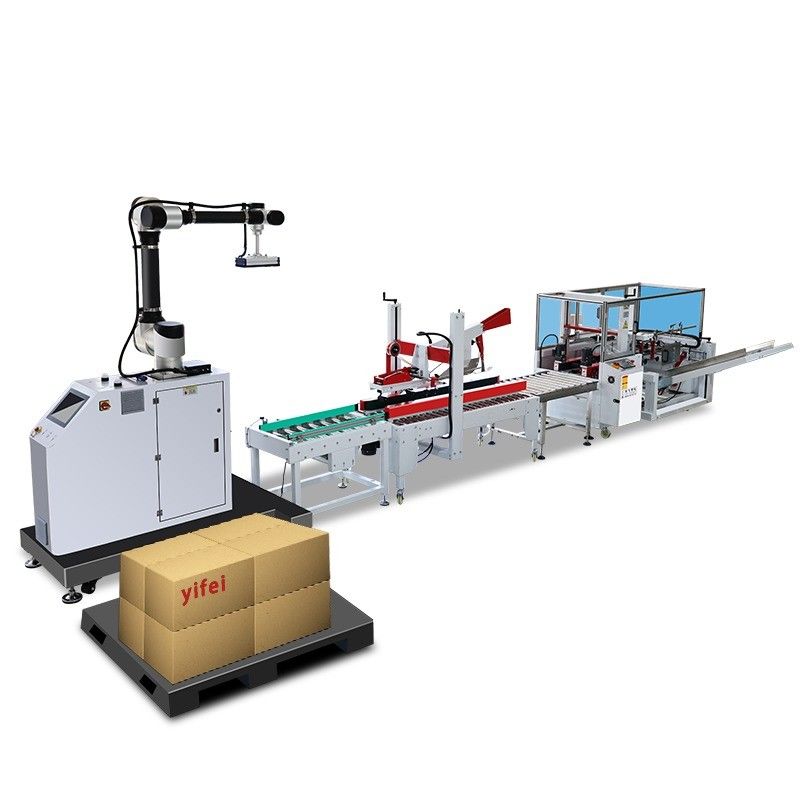

IP65 Packaging Line with Case Carton Bag Box Erector Folding Sealer Palletizer System
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $25,999.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Warranty: | 1 Year | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Condition: | New | Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles |
| Packaging Type: | Cartons | Packaging Material: | Paper |
| Automatic Grade: | Semi-automatic | Driven Type: | Pneumatic |
| Voltage: | 220V/50HZ | Weight: | 1025 KG |
| Key Selling Points: | Easy To Operate | Model: | 20KG Robot Palletizer |
| Loading: | 20kg | Working Radius: | 1650mm |
| Pallet Specification: | 1200*1200*200mm | Vertical Distance: | 1700mm(Extender To 2200mm) |
| Palletizing Speed: | 8-12Pcs/Min | Air Pump: | 440L/Min |
| Repeat Positioning Accuracy: | ±0.02mm | IP Grade: | IP65 |
| Temperature Control: | 0-50°C | ||
Product Description
Products Description
Product Paremeter
Carton Erector

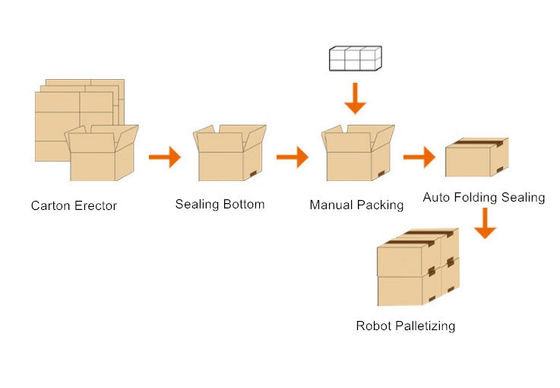

Automatic carton erector set auto unpacking, folding of the bottom cover,sealing carton bottom,machine using PLC Intelligent
control panel+ man-machine interface control,folding bottom does not stay,box sealing at the same time to complete the suction,molding,folding bottom,sealing the whole process.
control panel+ man-machine interface control,folding bottom does not stay,box sealing at the same time to complete the suction,molding,folding bottom,sealing the whole process.
Model | YPK-09 | YPK-09M | YPK-09Z |
Unpacking Speed | ≤12pcs/min | 4-10pcs/min | 15-18pcs/min |
Carton Size(L*W*H) | 200-500*150-400*120-350mm | 250-650*150-500*120-500mm | 200-450*150-400*120-350mm |
Machine Size(L*W*H) | 1900*2080*1492mm | 2150*2080*1492mm | 2460*2080*1492mm |
Table Height | 620+50mm | 620+50mm | 620mm |
Power | 200W | 240W | 640W |
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Adhesive Tape Width | 48/60/72mm | 48/60/72mm | 48/68/75mm |
Weight | 450kg | 500kg | 500kg |

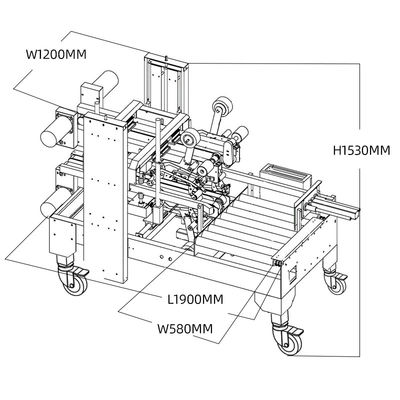

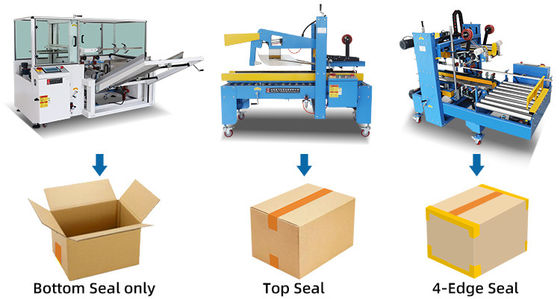

Automatic Folding Sealing Machine
Automatic fold flaps carton sealing machine will automatically folds the upper cover and automatically pastes the tape up and down without manual work,the use of instant adhesive tape carton for sealing not only has a beautiful sealing effect, but also has a firm sealing.
Model | FXJ-5050Z |
Tape Specification | 48-75mm |
Sealing Speed | 0-20m/min |
Table Height | 600-800mm |
Max Carton Size(L*W*H) | 600*500*500mm |
Min Carton Size(L*W*H) | 200*200*160mm |
Power | 400W |
Voltage | 220V/50HZ |
Driving Mode | Left-Right Driving |
Weight Of Machine | 125KG |
Barometric Supply | 2/3L,5kgf/cm2 |
Machine Size | 2680*900*(1480-1680)mm |

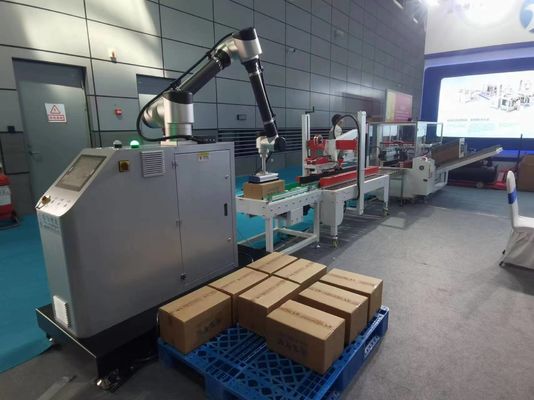

Robot Palletizer
Stack the packed cartons onto the pallet
Model | SQXZMD-20-V1.0 | SQXZMD-30-V1.0 | |
Loading | 20kg | 30kg | |
Working radius | 1650mm | 1600mm | |
Pallet size | 1200*1200*200mm (maximum | 1200*1200*200mm (maximum) | |
Vertical distance | 1700mm (expandable to 2200mm) | 1700mm (expandable to 2200mm) | |
Palletizing speed | 8-12 pieces/min | 8-12 pieces/min | |
Reference gas consumption | 440L/min | 480-660L/min | |
Repeat positioning accuracy | ±0.02mm | ±0.02mm | |
Communication method | EtherCAT interface, extension 10 | EtherCAT interface, expansion I0 | |
IP grade | IP65 | IP65 | |
Temperature range | 0-50℃ | 0-50℃ | |
Maximum power consumption | 2500W | 4100W | |
Rated voltage | 220V | 220V | |
Machine weight | 350KG | 440KG | |
Occupancy area | 1260*780mm (excluding pallet and roller line) | 1972*1488mm (excluding pallet and roller line) | |
Product Details
Intelligent control panel, intuitive interface, easy to operation
End effector,Strong and stable suction cup, strong load capacity
Flexible application,Flexible work, operating radius up to 1650mm
