1.Using international advanced technology manufacturing, and use imported parts, electrical components.

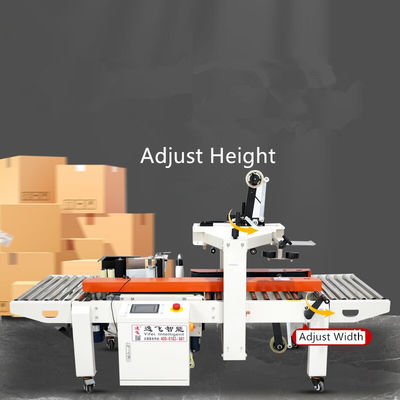

2.Manually adjust the width and height according to the carton specifications.
3. Automatic left and right folding, up and down sealing, economical, fast and smooth.
4. Equipped with blade guard to avoid accidental stab wounds.
5. It can be alone work, but also can be used with the automated packaging line.
6.Conveying roller design conveys more smoothly
 |
Convey Speed 18m/min Electric Driven Small Carton Box Case Sealer with Belt Conveyor
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $1,999.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Commodity, Chemical, Machinery & Hardware, Beverage | Packaging Type: | Cartons, Case |
|---|---|---|---|
| Packaging Material: | Carton | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric | Voltage: | 220v, 220V/50HZ |
| Dimension(L*W*H): | 1830*670*1230mm | Weight: | 106 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Core Components: | Other | After-sales Service Provided: | Video Technical Support, Online Support |
| Model: | DFXC4030XFI | Power: | 500W |
| Reserved On Both Sides: | Within 50mm | Convey Speed: | 18m/min |
| Tape Width: | 30mm 45mm | Transfer Method: | Conveyor Belt Drive On Both Sides |
| Max Carton Size: | W300*H400mm | Mini Carton Size: | W80*H90mm |
Product Description
Products Description
Product Feature:
Product Parameter
Model | DFXC4030CI | DFXC5050XI | |
Power | 500W | ||
Voltage | 220V/50HZ | ||
Convey Speed | 18m/min | ||
Working Table Height | 600mm | ||
Max Carton Size Mini Carton Size | W300*H400mm W80*H90mm | W500*H500mm W80*H90mm | |
Tape Width | 30mm.45mm | ||
Transfer Method | Conveyor belt on both sides | ||
Sticker Specification | Folding sheet，20-100mm Width | ||
Dimension | L2090*W975*H1455mm | L1410mm*W952mm*H1420mm | |
When these models don't suit your needs, you have the option of customizing the model as you require
Product details
Large Space,Label Folded Flat

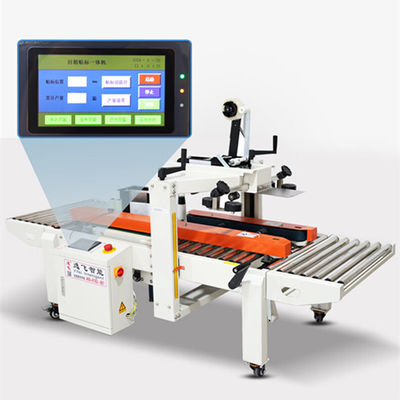

PLC Control Panel
Adjust it according to the carton position
Reel Design
Reasonable transmission title
not easy to break
Tape the sealing ends
Changing the tape is simple
convenient and time-saving
