The system consists of carton erector&bottom sealer, automatic carton sealer, four-corner sealing operation. It is full automatic control and reliable working, convenient operation and simple maintenance while, all machine can be used separately. This type of sealing machine is widely used in food, medicine, beverage, tobacco, daily and other domestic and foreign industries.
 |
Automatic Carton Erector Sealing Machine for Video Technical Support and After Service
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $5,500.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, Case |
|---|---|---|---|
| Packaging Material: | Plastic, Paper | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220/380V |
| Dimension(L*W*H): | L1899*W2080*H1492mm | Weight: | 500 KG |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Other, Motor, Engine |
| Usage: | Packaging Carton Box | Material: | Stainless Steel |
| Characteristic: | Customizable | Factory: | 21 Years Experience |
| Keyword: | High Effieciency | Tape Width: | 48/60/75mm |
| ODM,OEM: | Welcome | Keyword 1: | Easy To Operate |
| Conveying Speed: | 18-20m/min | Work Speed: | 12pcs/min |
| Type: | Wrapping Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
Product Description
Products Description

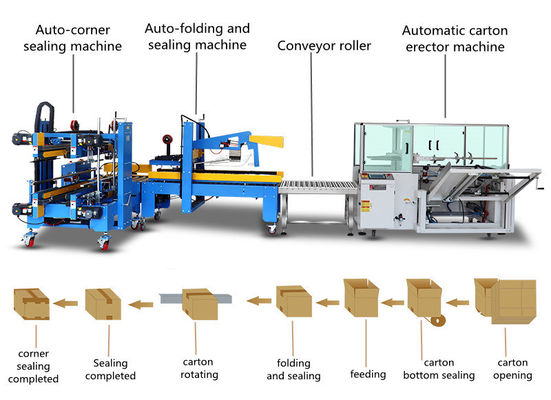

Full Automatic carton packing line:
Product Parameter
Model | YPK-09 |
Voltage | 220/380V,50/60Hz |
Table height | 625mm |
Pneumatic | 6kg/cm2, 450NL/min |
Tape width | 48/60/75mm |
Carton size | L200-500mm W150-400mm H120-400mm |
Work speed | max12pcs/min |
Machine size | L1899*W2080*H1492mm |
Weight | 600kg |
Model | YPC-05 |
Voltage | 220/380V,50/60Hz |
Table height | 600-750mm |
Belt speed | 18-20m/min |
Machine size | L1756*W830*H1450mm |
Tape width | 48/60/75mm |
Power | 400W |
Air pressure | 5kg.f/cm2 |
Carton size | L200-600mm W150-500mm H150-500mm |
Model | FXJ-55H |
Voltage | 220V/50Hz |
Work speed | 500-750pcs/h |
Power | 1KW |
Tape width | 48/60/72mm |
Machine size | L1900*W1200*H1530mm |
Carton size | L 320-500mm W 180-500mm H 190-500mm |
Electrical configuration 1.Motor:GPG 2.PLC: Mitsubishi/Siemens 3.Touch Screen: WEINVIEW/Siemens 4.Cylinder,Solenoid valve: AirTAC 5.Vacuum generator: CHELIC 6.AC contactor, intermediate relay, button switch, air switch: Schneider 7.Sucker: CHELIC 8.Bearing: NSK 9.Photoelectric sensor: SICK
* If you need more advanced configuration, we can customize it for you
Product details
Touch screen control panel
Touch screen setting, intuitive interface, easy to operation with emergency stop switch, convenient and safe
Imported PLC control system
Siemens PLC control, it is durable and stable with long service life and high efficiency
Wear-resistant conveyor belt
Imported conveyor belt, the movement and the belt cooperate to complete the sealing, the sealing effect is beautiful, no wrinkles high-quality cutting tape movement, smooth delivery
Flaps folded device
Folding flaps automatically,and this part was tested for more than 100000 times, very steady and durable.
Conveyor roller
The roller is smooth and textured, and the conveying is more labor-saving
Sealing head
The belt replacement is simple and convenient, the transmission design of sealing head is reasonable, and the sealing is more smooth
Filter pressure reducing valve
Adopt AirTAC brand, Ensure stable pressure output and has a long service life, reliable quality
Certifications
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd.
YIFEI integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
Warmly welcome to visit YIFEI factory.
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
Customer comments
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
