1.Using international advanced technology manufacturing, and use imported parts, electrical components.
2.Manually adjust the width and height according to the carton specifications.
3. Automatic left and right folding, up and down sealing, economical, fast and smooth.
4. Equipped with blade guard to avoid accidental stab wounds.
5. It can be alone work, but also can be used with the automated packaging line.
6.Conveying roller design conveys more smoothly
 |

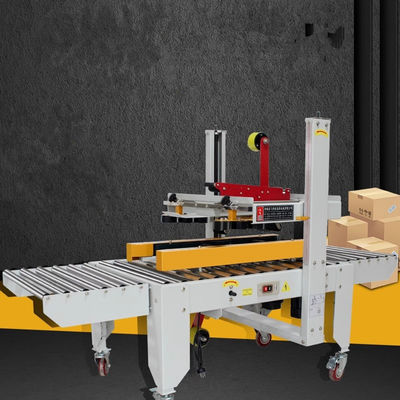

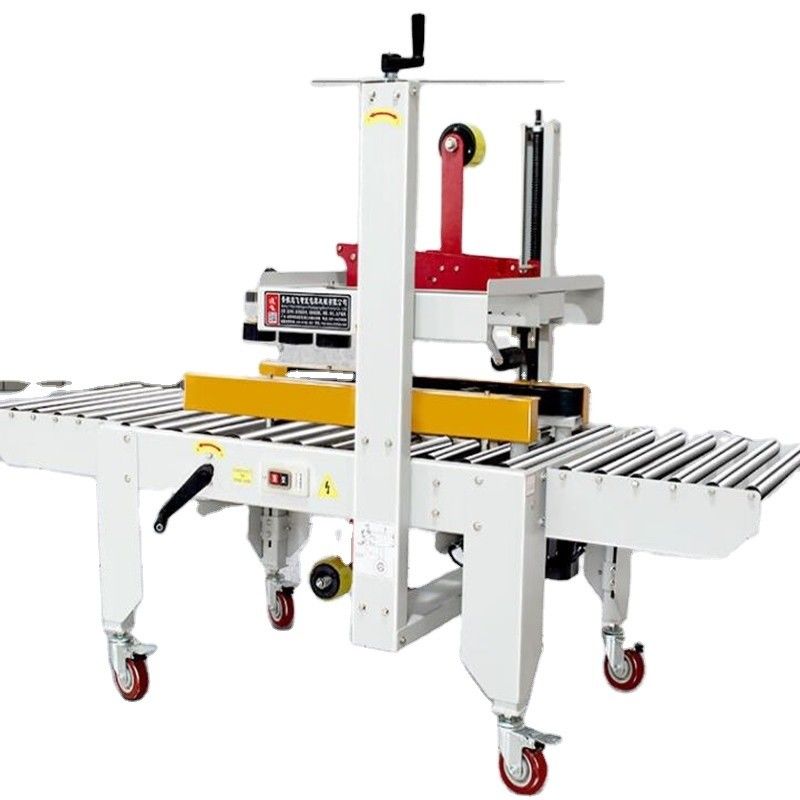

Automatic Left And Right Drive Belt Carton Case Box Sealing Machine with Easy Operation
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $690.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Warranty: | 1 Year | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Condition: | New | Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles |
| Packaging Type: | Cartons | Packaging Material: | Paper |
| Automatic Grade: | Semi-automatic | Driven Type: | Electric |
| Voltage: | 220V/50HZ, 220V/50HZ | Power: | 180W, 180W |
| Weight: | 106 KG | Dimension(L*W*H): | 1830x670x1230mm |
| Key Selling Points: | Easy To Operate | Model: | FXJ-4030X |
| Working Speed: | 10-20Pcs/Min | Tape Size: | 36-48mm |
| Machine Size: | 1830x670x1230mm | ||
Product Description
Products Description
Product Feature:
Product Parameter
Model | FXJ-4030X | FXJ-5050Ⅰ | FXJ-6050Ⅰ | ||
Voltage | 220V/50HZ(Support Customize) | ||||
Power | 180W | 240W | 180W | ||
Driving Mode | Left-Right Driving | Left-Right Driving | Up-Down Driving | ||
Tape Specification | 36-48mm | 48-72mm | 48-72mm | ||
Table Height | 570-780mm | ||||
Weight | 106kg | 150kg | 145kg | ||
Carton Size | L: At least 130mm W: 80-300mm H: 90-400mm | L: At least 150mm W: 150-520mm H: 180-520mm | L: At least 150mm W: 150-500mm H: 110-600mm | ||
Carton Size
When these models don't suit your needs, you have the option of customizing the model as you require
Product details
Sealing Head
The belt replacement is simple and convenient, the transmission design of sealing head is reasonable, and the sealing is more smooth

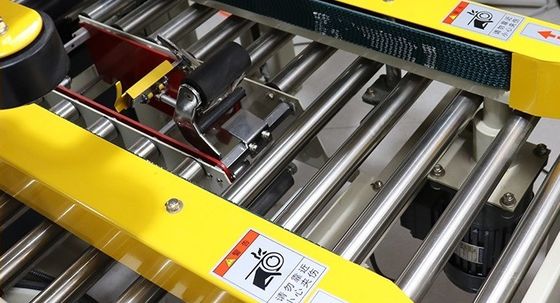

High Quality Conveyor Belt
Adopt imported conveyor belt, which is good quality, high efficiency and wear resistance, less noise
Double Imported Motor
Low noise and stable conveying

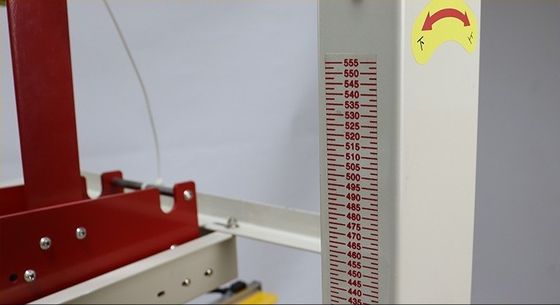

Height Adjustment
Adjust the height of the pressing plate according to the height of the carton top cover,and adjust the hand wheel to make the carton pressing plate in the appropriate position

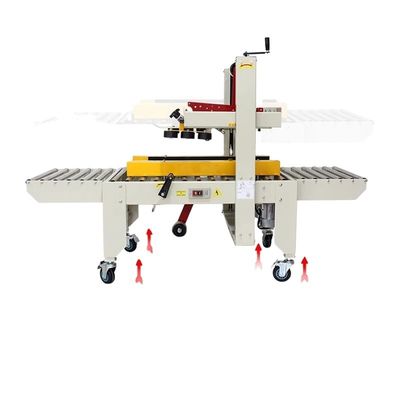

Adjustable Casters
It can slide freely or be fixed
