Product Details:

Place of Origin: Anhui, China

Payment & Shipping Terms:

Price: $4,500.00/sets 1-4 sets
Get Best Price Contact Now

Detail Information
Warranty: 1 Year Type: Other
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Not Available
Warranty Of Core Components: 1 Year Core Components: Other
Condition: New Application: Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Cartons Packaging Material: Paper
Automatic Grade: Semi-automatic Driven Type: Pneumatic
Voltage: 220V/50HZ, 220V/50HZ Power: 1000W, 1000W
Weight: 500 KG Dimension(L*W*H): 1900x1200x1530mm
Key Selling Points: Easy To Operate Model: FXJ-555H
Tape Size: 48/60/72mm Machine Size: 1900X1200X1530mm
Sealing Length: 320-500mm Sealing Width: 180-500mm
Sealing Height: 190-500mm

Product Description

Products Description
Automatic L Type Tape Sealer for Quick and Simple Corner Edge Sealing of Carton Boxes 0
Automatic Carton Corner Sealing Machine Feature
1.Use Siemens parts and electrical components
2.Manually adjust the width and height of the machine according to the carton specifications
3.Automatically fold the top cover of the carton,automatically attach the tape up and down,economical,smooth
4.Install blade guards to avoid accidental punctures during operation
5.The automatic sealing machine can be used in a single machine or in conjunction with an automated packaging line.
Product Paremeter
Model
FXJ-555H
FXJ-755H
FXJ-766H
FXJ-877H
Voltage
220V/50HZ
Work Speed
500-750Pcs/h
Power
1KW
Tape Specification
48/60/72mm
Machine Size
L1900*W1200*H1530mm
Sealing Length
320-500mm
320-700mm
320-700mm
320-800mm
Sealing Width
180-500mm
180-500mm
180-600mm
180-700mm
Sealing Height
190-500mm
190-500mm
190-600mm
190-700mm
Motor
GPG
Cylinder

AirTAC
Solenoid Valve
AC Contactor


Schneider
Intermediate Relay
Button Switch
Air Switch
PLC
Mitsubishi/Siemens
Touch Screen
WEINVIEW/Siemens
Photoelectric Sensor
SICK
Product details
Automatic L Type Tape Sealer for Quick and Simple Corner Edge Sealing of Carton Boxes 1



Touch Screen Control Panel
Touch screen setting,intuitive interface,easy to operation with emergency stop switch, convenient and safe

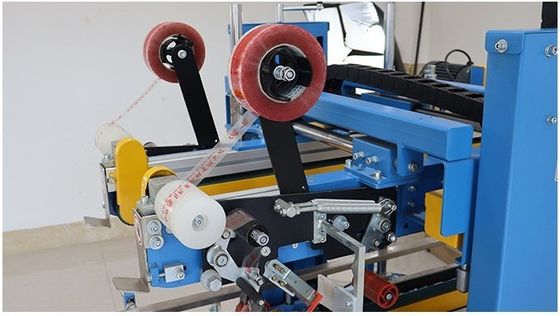

Sealing Head
The belt replacement is simple and convenient, the transmission design of sealing head is reasonable, and the sealing is more
smooth
Automatic L Type Tape Sealer for Quick and Simple Corner Edge Sealing of Carton Boxes 2
Automatic L Type Tape Sealer for Quick and Simple Corner Edge Sealing of Carton Boxes 3

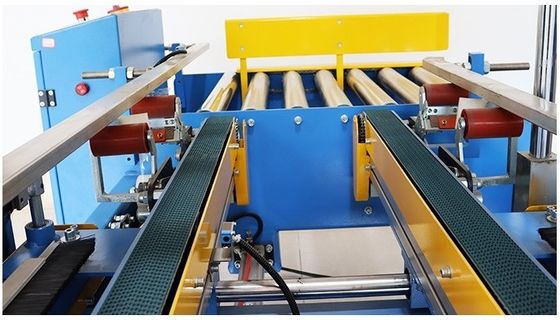

Internal structure of box sealing machine
The advanced sealing parts are used to flatten the protruding part of the carton,so that the adhesive tape is attached to the
surface of the carton,cut flat,beautiful,firm and wear-resistant

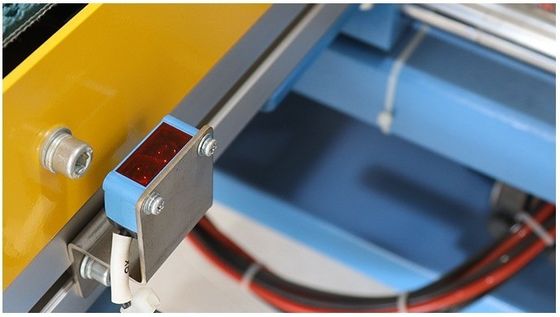

Sensor Device
Equipped with sensor device, it can realize photoelectric detection and automatic alarm function, and can completely unmanned
packaging operation
Automatic L Type Tape Sealer for Quick and Simple Corner Edge Sealing of Carton Boxes 4
