This machine is widely used in foreign trade export, chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc, increase production efficiency, but also After winding and packaging, the goods are more stable, beautiful and neat, to prevent the damage of the goods in the handling process, and play Dust, moisture，anti-scatter, anti-theft, convenient to enter and ship. All the electrical components are branded to ensure that the overall performance is more stable and the service life is long.
 |
2400mm Column Height Electric Driven Pallet Strech Film Strapping Machine for Products
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $2,400.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Film, Case |
|---|---|---|---|
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | AC110V/220V |
| Dimension(L*W*H): | 2600*1500*2550mm | Weight: | 700 KG |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Other, Motor, Engine, Bearing |
| Turntable Speed: | 0-10r/min(Adjustable) | Turntable Diameter: | 1500mm/1650mm/1800mm (Customizable) |
| Wrapping Height: | 500-2000mm(Customizable) | Column Height: | 2400mm |
| Max Loading: | 1500kg / 2000kg | Optional: | Ramp Equipment |
| Film Size: | Height: 100-500mm, Thickness: 17-25um | Film Tightness: | The Tightness Of The Film Can Be Controlled By Handle Adjustment |
| Keyword: | OEM, ODM | Advantage: | High Efficiency |
| Type: | Wrapping Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Warranty Of Core Components: | 1 Year | Marketing Type: | New Product 2021 |
| Port: | Shanghai Ningbo Guangzhou | ||
Product Description
Products Description

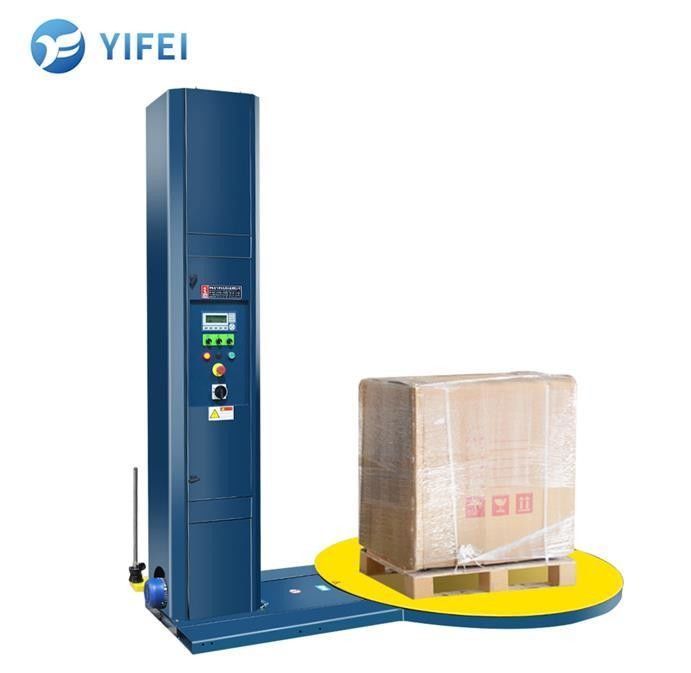

Automatic pallet stretch film wrapping machine
Model | YF-2000A | |
Voltage | 1P, AC220V/110V, 50Hz/60Hz | |
Power | 1KW | |
Turntable rotation speed | 0-10r/min（Adjustable） | |
Film tightness | The tightness of the film can be controlled by handle adjustment | |
Turntable diameter | 1500mm/1650mm/1800mm （Customizable） | |
1650mm Wrapping Size | L500-1100mm, W500-1200mm（Customizable） | |
Wrapping Height | 500-2000mm（Customizable） | |
Column height | 2400mm | |
Max loading | 1500kg / 2000kg | |
Machine weight | 650-750kg | |
Optional | Ramp equipment | |
Dimension | 2600*1500*2550mm | |
Film size | Height: 100-500mm, Thickness: 17-25um | |
Electrical configuration | ||
Button switch | Siemens | |
Photoelectric sensor | YOUNGSUN | |
Electromagnetic sensor | YOUNGSUN | |
Frequency converter | INOVANCE | |
Text controller | XINJIE | |
Motor | MEIWA | |
Features of Automatic Pallet Wrapping Stretch Film Wrapper Machine
•Open door film carriage •Limit built-in •2000mm wrapping height •2000kgs loading •Spring break stretch •Home position: the turntable always stops at the same position •Speed control on turntable •Choose between 1 & 9 top and bottom wraps with re-enforce wrap •Up & down or up only wrap cycle •Semi auto and manual wrap options •Adjustable pallet height photo sensor •Secure Top Sheet Function •Lockable control panel •Adjustable tension with quick release •Soft start and stop •Machine can be paused during cycle •Magnetic brake holds turntable still during loading/unloading •Audible warning when running a cycle

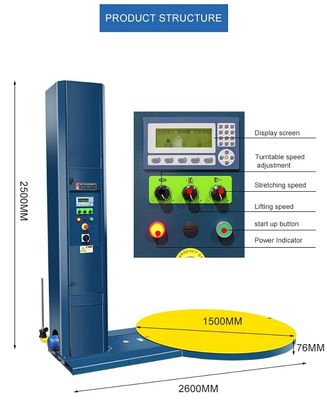

Product details

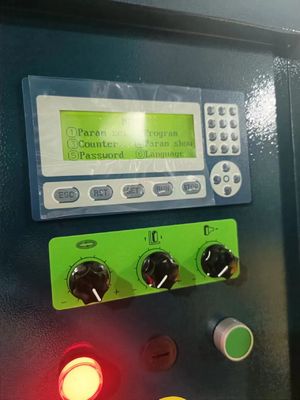

PLC control panel
The advanced PLC programmable controller is connected with the touch screen, the operation of the equipment is clear at a glance, and the winding layers and times are adjustable

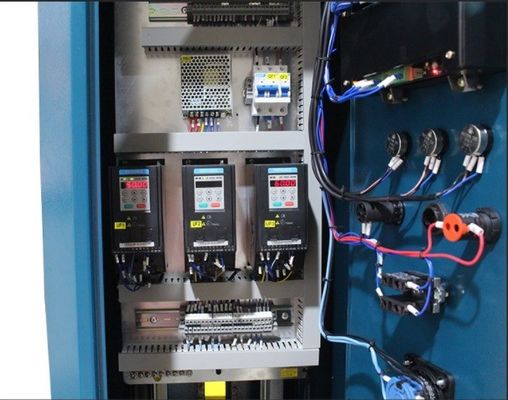

Electrical configuration
It adopts well-known brand components, Siemens frequency converter, stable performance, quality assurance, export quality and CE certification
High quality lift
High quality metal lift design makes the machine work more stable
Load bearing turntable
The turntable starts and stops slowly to prevent the package from falling
High power motor
High quality large motor, stable performance and longer service life

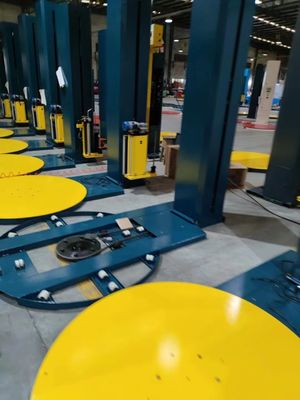

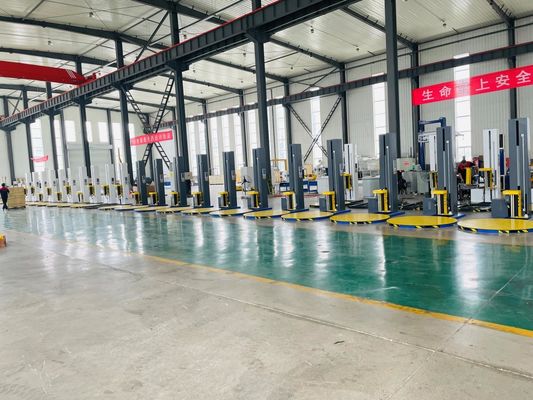

Actual picture of factory machine
