This machine is widely used in foreign trade export, chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc, increase production efficiency, but also After winding and packaging, the goods are more stable, beautiful and neat, to prevent the damage of the goods in the handling process, and play Dust, moisture，anti-scatter, anti-theft, convenient to enter and ship. All the electrical components are branded to ensure that the overall performance is more stable and the service life is long.
 |
Electric Pallet Wrapper for Stretch Film Wrapping Innovate Your Packaging Process
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $2,400.00/sets 1-9 sets |
|---|
|
Detail Information |
|||
| Type: | Boxing Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Other | Condition: | New |
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Case |
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/110V, 1P,220V/110V.50HZ/60HZ |
| Dimension(L*W*H): | 2.8*1.78*0.8m | Weight: | 600 KG, 650-750kg |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Model: | YF-2000A | Power: | 1000W |
| Turntable Speed: | 0-10r/min | Turntable Dimaeter: | 1500mm/1650mm/1800mm |
| Column Height: | 2400mm | Loading: | Regular≤1.5T,Big Motor≤2T |
| Max Package Height: | 2000mm | Machine Dimension: | 2600*1500*2550mm |
Product Description
Products Description
Automatic pallet stretch film wrapping machine
Model | YF-2000A（Anti Stretch） | |
Voltage | 1P, AC220V/110V, 50Hz/60Hz | |
Power | 1KW | |
Turntable rotation speed | 0-10r/min（Adjustable） | |
Film tightness | The tightness of the film can be controlled by handle adjustment | |
Turntable diameter | 1500mm/1650mm/1800mm （Customizable） | |
Wrapping Height | 500-2000mm（Customizable） | |
Column height | 2400mm | |
Max loading | 1500kg / 2000kg | |
Machine weight | 650-750kg | |
Optional | Ramp equipment | |
Dimension | 2600*1500*2550mm | |
Film size | Height: 100-500mm, Thickness: 17-25um | |
Model | YF-2000B(Pre Stretch) | |
Voltage | 1P,AC220V/110V,50/60HZ | |
Power | 1.25KW | |
Film tightness | can be automatically adjusted through frequency conversion adjustment | |
Turntable rotation speed | 0-10r/min（Adjustable） | |
Turntable diameter | 1500mm/1650mm/1800mm （Customizable） | |
Column height | 2400mm | |
Package Material | LLDPE stretch film，Width≤500mm,Outer Diameter≤280mm | |
Column Height | H=2400mm(Customizable) | |
Max Loading | Regular≤1.5T,Bigger Motor≤2T | |
Max Packaging Height | Column Height-400mm | |
Machine Weight | 650-750kg | |
Dimension | 2600*1500*2550mm | |
Film Specification | Height 100-500mm,Thickness 17-25μm | |
Stretch ratio | 100%-250% | |
Electrical configuration | ||
Button switch | Siemens | |
Photoelectric sensor | YOUNGSUN | |
Electromagnetic sensor | YOUNGSUN | |
Frequency converter | INOVANCE | |
Text controller | XINJIE | |
Motor | MEIWA | |
Features of Automatic Pallet Wrapping Stretch Film Wrapper Machine
•Open door film carriage •Limit built-in •2000mm wrapping height •2000kgs loading •Spring break stretch •Home position: the turntable always stops at the same position •Speed control on turntable •Choose between 1 & 9 top and bottom wraps with re-enforce wrap •Up & down or up only wrap cycle •Semi auto and manual wrap options •Adjustable pallet height photo sensor •Secure Top Sheet Function •Lockable control panel •Adjustable tension with quick release •Soft start and stop •Machine can be paused during cycle •Magnetic brake holds turntable still during loading/unloading •Audible warning when running a cycle
Product details

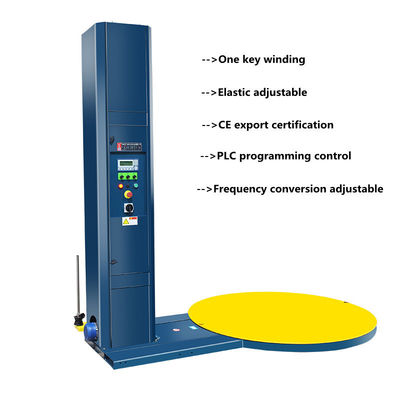

PLC Control Panel
The advanced PLC programmable controller is connected with the touch screen, the operation of the equipment is clear at a glance, and the winding layers and times are adjustable
Electrical Configuration
It adopts well-known brand components, Siemens frequency converter, stable performance, quality assurance, export quality and CE certification
High Quality Lift
High quality metal lift design makes the machine work more stable
Load Bearing Turntable
The turntable starts and stops slowly to prevent the package from falling
High Power Motor
High quality large motor, stable performance and longer service life

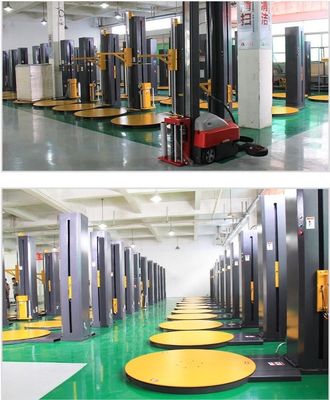

Actual picture of factory machine

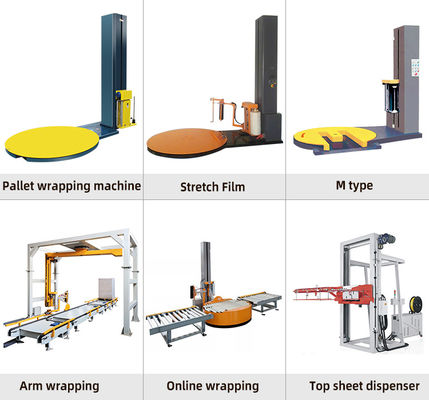

Related Equipment
VIEW
VIEW
VIEW
VIEW
Certifications
Why Choose Us
1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
In addition,if you have any idea or special requirement for plastic sealer machine details, we will do our best to solve for you. We believe our sincerity and specialty, could bring good user experience to customers.
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
In addition,if you have any idea or special requirement for plastic sealer machine details, we will do our best to solve for you. We believe our sincerity and specialty, could bring good user experience to customers.
High Quality Customer Feedback
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Our Advantages
Our Advantages
*Best product and factory price
*On-time delivery and the shortest delivery time.
*OEM and customized service.
*User manuals will go with relative machines.
*User manuals will go with relative machines.
*1-Year warranty
If our product cannot function properly within 12 months,
we'll offer spare parts for free ; and you need to pay for the delivery.
Product packaging
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical services, relying on technology to provide customers with packaging equipment solutions.
The company's main products are: granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, packing machine, palletizing machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc. packaging machinery and supporting production lines.
Our products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries. After several years of development and growth, the company has established a sound sales network and service network, products sold well throughout the country, and exported to Europe, America, Southeast Asia and other countries all over the world
Over the years, our company has been praised and appreciated by the vast number of new and old customers in line with the purpose of "high quality and perfect service". In order to thank the vast number of new and old customers for their great love for Yifei packaging machinery, we solemnly promise that we are willing to repay our customers with the management concept of high quality and high service.
Warmly welcome You to Y-F Packaging Machinery for inspection and business negotiation.
Want to Know more details about this product
