The machine has the function of variable frequency speed regulation, which can adjust various speeds at any time according to the object, so as to control the film tension and the film overlap width, so that the whole winding process is uniform and stable, and prevent the goods from falling
 |
Effortless Packaging with YF 's Automatic Stretch Film Wrapping Machine
Product Details:
| Place of Origin: | Anhui,China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $2,499.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Case |
|---|---|---|---|
| Packaging Material: | Film | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/110V |
| Dimension(L*W*H): | 2600*1500*2550mm | Weight: | 750 KG |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate, Long Service Life | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Gear, Other, Motor, Engine, Bearing, Pump |
| Advantage: | High Efficiency | Service: | 24h |
| Color: | Same As The Picture | Keyword: | Pallet Stretch Wrapping Machine |
| Control System: | PLC | Speed: | 0~10r/min |
| Stretching Ratio: | 100%~250% | Lubricating Material: | General Purpose Grease 0 |
| Environmental Conditions: | Relative Humidity <90%,temperature-10℃~40℃ | Type: | Wrapping Machine |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Comp | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | Canada, United States | Showroom Location: | United Kingdom, United States |
| Condition: | New | Warranty Of Core Components: | 1 Year |
| Marketing Type: | Hot Product | Port: | Shanghai Ningbo Guangzhou |
Product Description
Products Description

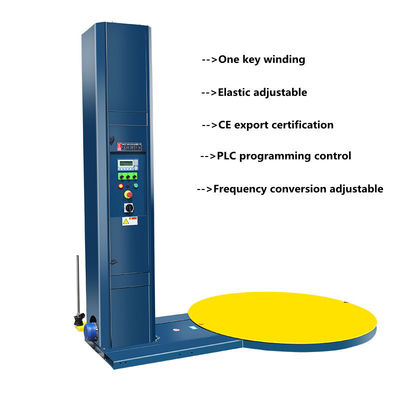

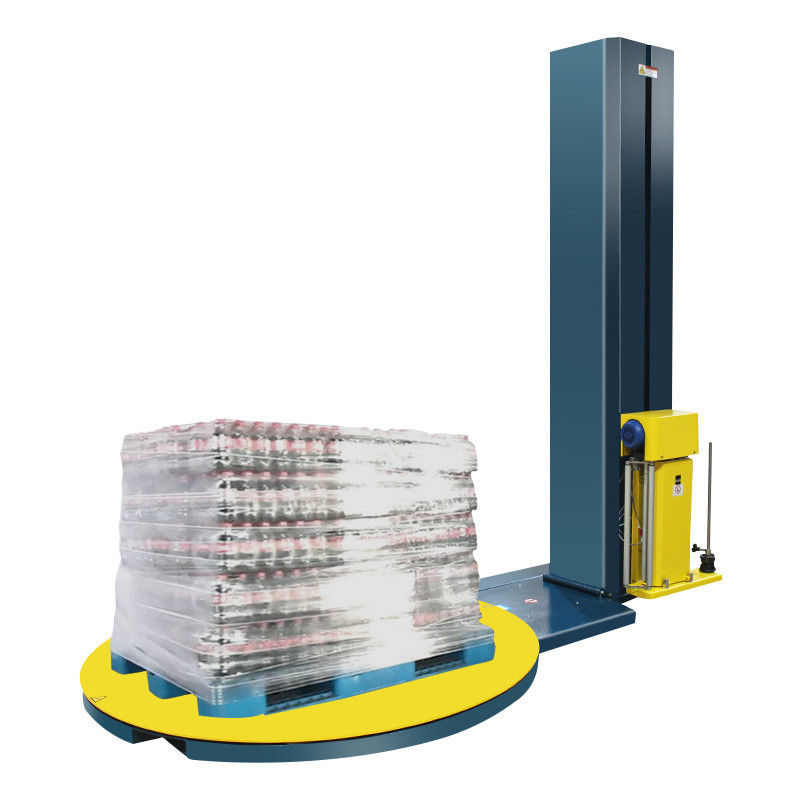

Automatic pallet stretch film wrapping machine
Intelligent control panel
Using PLC programmable control, the system is stable and durable, LED display, can directly set parameters, high degree of automation, easy to operate, intuitive and clear, powerful, only need to press the button to complete the operation.
Wide Range Of Application
Use flexible film,multi-purpose more advantages, absorb vibration,weaken the impact, protect the cargo
Product Parameter
Model | YF-2000A (Resistance Tensile Type) |
Voltage | 1P, AC220V/110V, 50Hz/60Hz |
Power | 1KW |
Turntable rotation speed | 0-10r/min |
Film tightness | The tightness of the film can be controlled by handle adjustment |
Turntable diameter | 1500mm/1650mm/1800mm/2000mm （Customizable） |
Wrapping Height | 500-2000mm |
Column height | 2400mm（Customizable） |
Max loading | 1500kg / 2000kg |
Machine weight | 650-750kg |
Optional | Ramp equipment |
Dimension | 2600*1500*2550mm |
Film size | Height: 100-500mm, Thickness: 17-25um |
Model | YF-2000B(Pre-stretched Type) |
Voltage | 1P, AC220V/110V, 50Hz/60Hz |
Power | 1.25KW |
Turntable rotation speed | 0-10r/min |
Film tightness | The tightness of the film can be controlled by frequency conversion |
Turntable diameter | 1500mm/1650mm/1800mm/2000mm （Customizable） |
Wrapping Height | 500-2000mm |
Column height | 2400mm（Customizable） |
Max loading | 1500kg / 2000kg |
Machine weight | 650-750kg |
Optional | Ramp equipment |
Dimension | 2600*1500*2550mm |
Film size | Height: 100-500mm, Thickness: 17-25um |
Matching Ramp Parameters(mm) | ||||||||
Turntable Diameter | Ramp Radius | Ramp Width | Ramp Length | Height | ||||
1500 | 760 | 1060 | 1500 | 75 | ||||
1650 | 835 | 1060 | 1500 | 75 | ||||
1800 | 910 | 1260 | 1500 | 75 | ||||
2000 | 1010 | 1260 | 1500 | 75 | ||||
Product details
PLC control panel
The advanced PLC programmable controller is connected with the touch screen, the operation of the equipment is clear at a glance, and the winding layers and times are adjustable
Electrical configuration
It adopts well-known brand components, Siemens frequency converter, stable performance, quality assurance, export quality and CE certification
High quality lift
High quality metal lift design makes the machine work more stable

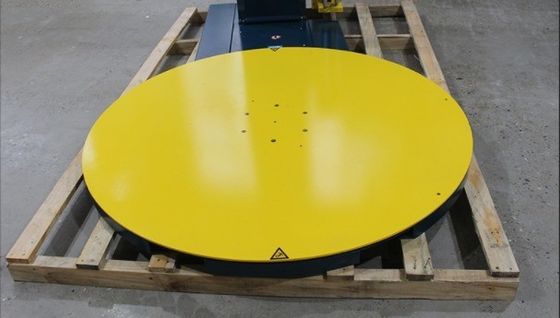

Load bearing turntable
The turntable starts and stops slowly to prevent the package from falling
High power motor
The high-power motor is used to ensure the smooth movement of the lifting frame up and down, which can ensure the stability and safety of the goods in the operation process.
Related Equipment
VIEW
Certifications
Our Advantages
Our Advantages
*Best product and factory price
*On-time delivery and the shortest delivery time.
*OEM and customized service.
*User manuals will go with relative machines.
*User manuals will go with relative machines.
*1-Year warranty
If our product cannot function properly within 12 months,
we'll offer spare parts for free ; and you need to pay for the delivery.

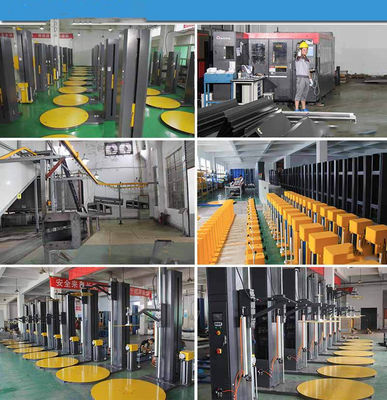

Company Profile
COMPANY
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical servicesThe company's main products are: horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, pallet wrap machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc.
EXHIBITION
We are developing the new market and researching the new products for various kinds of market ceaseless on the basis of European and American market
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
Customer comments
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Want to Know more details about this product
