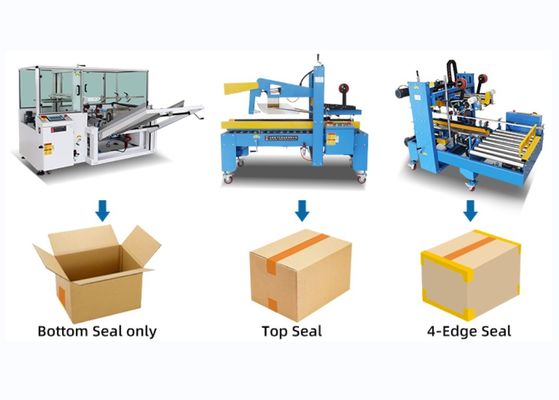

The system consists of carton erector,automatic carton folding sealing machine and corner sealing . It is full automatic control and reliable working, convenient operation and simple maintenance while, all machine can be used separately. This carton Packing Line is widely used in food, medicine, beverage, tobacco, daily chemical and other domestic and foreign industries.
 |
Year 2021 Automatic Carton Erector Sealer Machine for Four-corner Sealing Packing Line
Product Details:
| Place of Origin: | Anhui,China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $14,999.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Year: | 2021 |
|---|---|---|---|
| Dimension(L*W*H): | / | Weight: | 850 KG |
| Automatic Grade: | Automatic | Voltage: | 220V |
| Power: | 1KW | Machinery Capacity: | 8-10pcs/min |
| Key Machines: | Sealing Machines, Wrapping Machines, Packaging Forming Machines | Packaging Material: | Wood |
| After Warranty Service: | Video Technical Support/Online Support | Key Selling Points: | Long Service Life |
| Advantage: | High Efficiency | Service: | 24h |
| After-sales Service Provided: | Automatic Carton Sealing Packing Line | Function: | Sealing Cartons |
| Module: | Carton Erector+Automatic Folding Cover Sealing Machine+Corner Sealing | Capacity: | 480-600pcs/h |
| Suitable For: | Box/Case/Carton | Port: | Shanghai Ningbo Guangzhou |
Product Description
Products Description

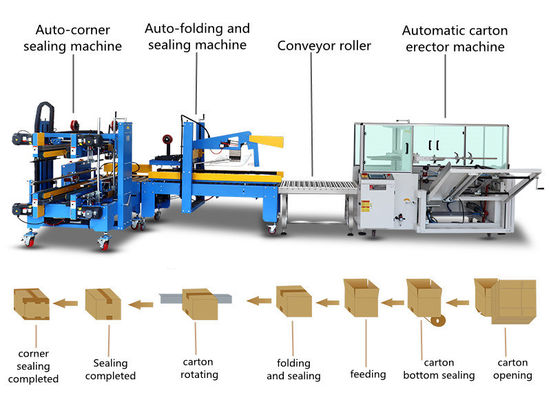

Full Automatic Carton Packing Line
Product Parameter

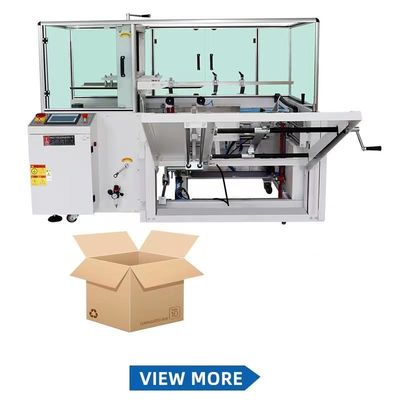

Carton erector
Automatic carton erector set auto unpacking, folding of the bottom cover, sealing carton bottom,machine using PLC Intelligent
control panel+ man-machine interface control，folding bottom does not stay, box sealing at the same time to complete the suction,molding, folding bottom, sealing the whole process.
control panel+ man-machine interface control，folding bottom does not stay, box sealing at the same time to complete the suction,molding, folding bottom, sealing the whole process.
Model | YPK-08 | YPK-09 | YPK-09M | YPK-09Z |
Unpacking Speed | 8-10pcs/min | ≤12pcs/min | 4-10pcs/min | 15-18pcs/min |
Carton Size(L*W*H) | 130-450*80-400*90*350mm | 250-500*150-400*120-400mm | 250-650*150-500*120-500mm | 250-500*200-400*120-400mm |
Machine Size(L*W*H) | 1900*2080*1492mm | 1899*2080*1492mm | 2150*2080*1492mm | 2460*2080*1492mm |
Table Height | 620+50mm | 620+50mm | 620+50mm | 620+50mm |
Power | 240W | 240W | 240W | 240W |
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Adhesive Tape Width | 48/68/75mm | 48/68/75mm | 48/68/75mm | 48/68/75mm |
Weight | 450kg | 600kg | 650kg |
Intelligent control panel, intuitive interface, easy to operation with emergency stop switch, convenient and safe
Siemens PLC control, it is durable and stable with long service life and high efficiency
Adopt Taiwan Air TAC brand, the machine runs stably and has a long service life, reliable quality

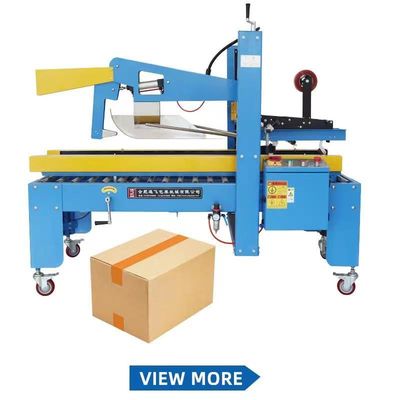

Automatic folding sealing machine
Automatic fold flaps carton sealing machine will automatically folds the upper cover and automatically pastes the tape up and down without manual work,the use of instant adhesive tape carton for sealing not only has a beautiful sealing effect, but also has a firm sealing.
Model | FXJ-5050Z |
Tape Specification | 48-75mm |
Sealing Speed | 0-20m/min |
Table Height | 600-800mm |
Max Carton Size(L*W*H) | 600*500*500mm |
Min Carton Size(L*W*H) | 200*200*160mm |
Power | 400W |
Voltage | 220V/50HZ |
Driving Mode | Left-Right Driving |
Weight Of Machine | 125KG |
Barometric Supply | 2/3L,5kgf/cm2 |
Machine Size | 2680*900*(1480-1680)mm |
Filter regulator,ensure smooth pressure output
Stabilize brake casters, any sliding, can also drop the wheel fixed up, not easy to slide
Double motor power, strong, smooth delivery and long life

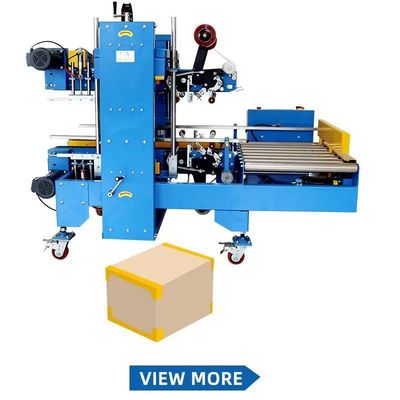

Corner Sealing Machine
Fully automatic carton corner sealing machine, brand configuration, wide sealing range, high sealing efficiency, beautiful
packaging
Model | FXJ-555H | FXJ-755H | FXJ-766H | FXJ-877H |
Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Work speed | 500-750pcs/h | 500-750pcs/h | 500-750pcs/h | 500-750pcs/h |
Power | 1KW | 1KW | 1KW | 1KW |
Tape width | 48/60/72mm | 48/60/72mm | 48/60/72mm | 48/60/72mm |
Machine size | L1900*W1200*H1530mm | L1900*W1200*H1530mm | L1900*W1200*H1530mm | L1900*W1200*H1530mm |
Carton size | L 320-500mm W 180-500mm H 190-500mm | L 320-700mm W 180-500mm H 190-500mm | L 320-700mm W 180-600mm H 190-700mm | L 320-800mm W 180-700mm H 190-700mm |
The belt replacement is simple and convenient, the transmission design of sealing head is reasonable, and the sealing is more
smooth
The advanced sealing parts are used to flatten the protruding part of the carton, so that the adhesive tape is attached to the surface of the carton, cut flat, beautiful, firm and wear-resistant
Equipped with sensor device, it can realize photoelectric detection and automatic alarm function, and can completely unmanned
packaging operation
packaging operation
