Automatic carton erector set auto unpacking, folding of the bottom cover, sealing carton bottom,machine using PLC Intelligent control panel+ man-machine interface control，folding bottom does not stay, box sealing at the same time to complete the suction, molding, folding bottom, sealing the whole process.
 |
Max Speed 20M/MIN High Speed Box Case Making Automatic Carton Erector for Bottom Sealing
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
| Certification: | CE/ISO9001 |
Payment & Shipping Terms:
| Price: | $4,499.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Max Speed: | 20M/MIN | Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles |
|---|---|---|---|
| Packaging Type: | Cartons, Case | Packaging Material: | Wood |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 220V | Dimension(L*W*H): | 2460*2080*1492mm |
| Weight: | 650 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate, Long Service Life | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | Other, PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure Vessel, Pump |
| After Warranty Service: | Video Technical Support/Online Support | Function: | Carton Unpacking Machine |
| Name: | Carton Erector | Advantage: | High Efficiency |
| Service: | 24h | Color: | Same As The Picture |
| After-sales Service Provided: | Free Spare Parts/Video Technical Support/Online Support | Sealing: | Bottom Sealing |
| Type: | SEALING MACHINE | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Other |
| Showroom Location: | Canada, United States | Condition: | New |
| Warranty Of Core Components: | 1 Year | Port: | Shanghai Ningbo Guangzhou |
Product Description
Products Description
Automatic Carton Erector

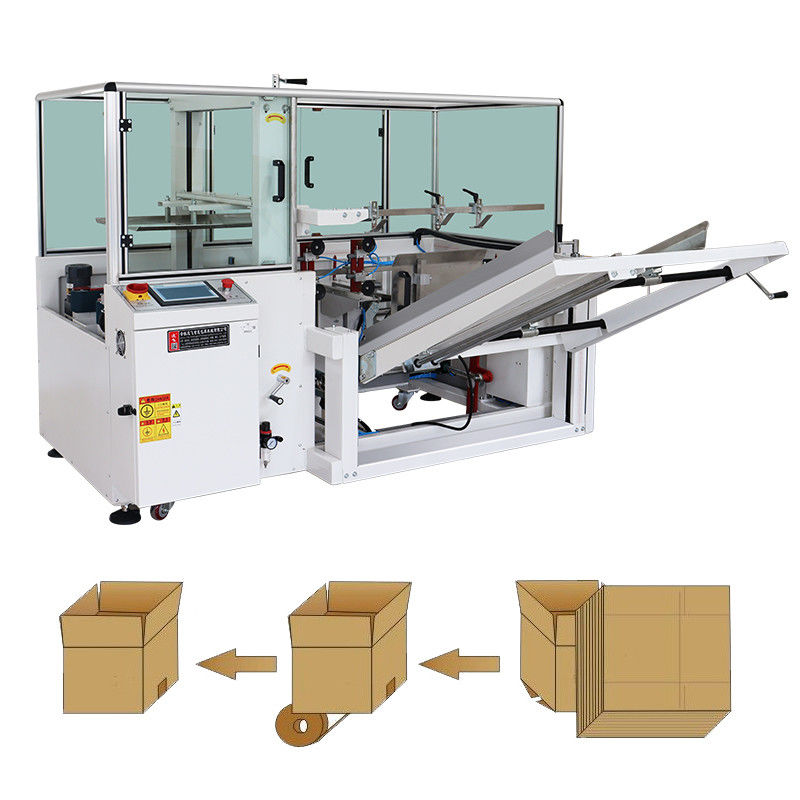

Process of unpacking
The carton is placed on the storage board of the machine, and the machine will automatically pull the carton apart (suction cup type) to form the bottom folding and automatic sealing
Product Parameter
Model | YPK-08 | YPK-09 | YPK-09M | YPK-09Z |
Unpacking Speed | 8-10pcs/min | ≤12pcs/min | 4-10pcs/min | 15-18pcs/min |
Carton Size(L*W*H) | 130-450*80-400*90*350mm | 250-500*150-400*120-400mm | 250-650*150-500*120-500mm | 250-500*200-400*120-400mm |
Machine Size(L*W*H) | 1900*2080*1492mm | 1899*2080*1492mm | 2150*2080*1492mm | 2460*2080*1492mm |
Table Height | 620+50mm | 620+50mm | 620+50mm | 620+50mm |
Power | 240W | 240W | 240W | 240W |
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Adhesive Tape Width | 48/68/75mm | 48/68/75mm | 48/68/75mm | 48/68/75mm |
Weight | 450kg | 600kg | 650kg | 600kg |
ELECTRICAL CONFIGURATION | ||
Motor | GPG | |
PCL | Mitsubishi / Siemens | |
Intelligent Touch Screen | Taiwan Weinview / Siemens | |
Cylinder, Solenoid Valve | AirTAC | |
Vacuum Generator | Chelic | |

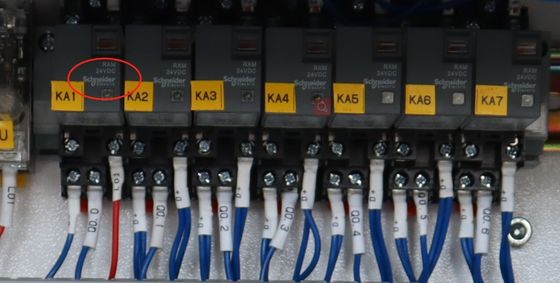

AC Contactor, Intermediate Relay, Button Switch, Air Switch | Schneider | |
Sucker | Schneider | |
Bearing | NSK | |
Photoelectric Sensor | SICK | |
Product details

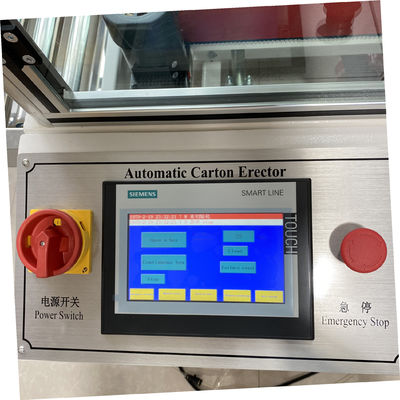

Intelligent control panel
Touch screen setting, intuitive interface, easy to operation with emergency stop switch, convenient and safe
Imported PLC control system
Siemens PLC control, it is durable and stable with long service life and high efficiency
Taiwan brand sucker
Adopt Taiwan brand suction cup with high working efficiency, durable, suction box satable, carton does not fall
Pneumatic components
Adopt Taiwan Air TAC brand, the machine runs stably and has a long service life, reliable quality

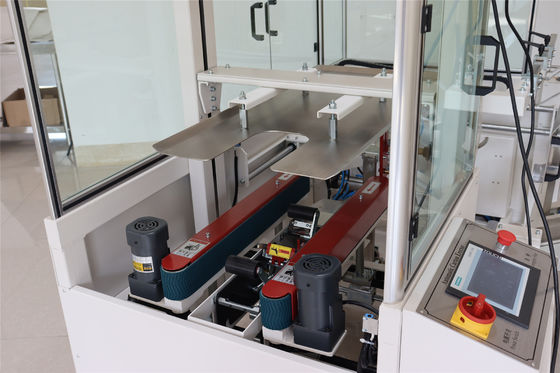

Wear-resistant conveyor belt
Imported conveyor belt, the movement and the belt cooperate to complete the sealing, the sealing effect is beautiful, no wrinkles high-quality cutting tape movement, smooth delivery
Gas source processor
Adopt Air TAC brand, reliable quality. it can drain the water through the filter,and the pressure can be adjusted

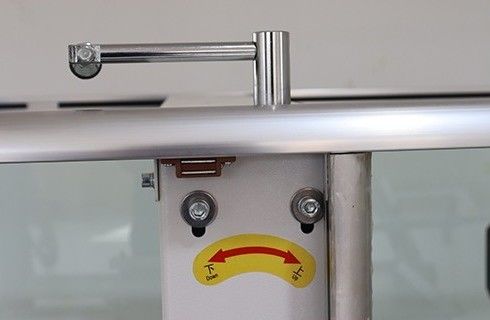

Height adjustment
Adjust the height of the pressing plate according to the height of the carton top cover, and adjust the hand wheel to make the carton pressing plate in the appropriate position

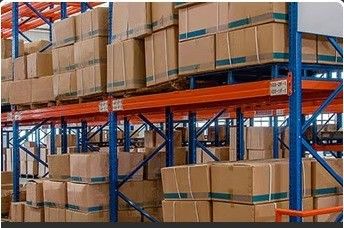

Suitable for a variety of industries
warehouse carton sealing and packing
e-commerce industry box packaging and delivery
storage center carton packing
shopping malls box sealing and deliver
