Glass Packaging Material High Speed 25 Cartons Per Minute Automatic Sealing Machine
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Yifei |
Payment & Shipping Terms:
| Price: | $4,499.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 3000 Set/Sets per Month |
|
Detail Information |
|||
| Max Speed: | 12m/min | Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles |
|---|---|---|---|
| Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case, Cartons, Case | Packaging Material: | Plastic, Paper, Metal, Glass, Wood |
| Automatic Grade: | Semi-automatic | Driven Type: | Electric, Electric |
| Voltage: | 220V/50HZ | Dimension(L*W*H): | 1899*2080*1492mm,2150*2080*1492mm,2460*2080*1492mm |
| Weight: | 600 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate, Good Operation, Stable Operation And High Efficiency | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided, Provided | Core Components: | Other, PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure Vessel, Pump |
| Type: | SEALING MACHINE, SEALING MACHINE | Showroom Location: | None, None |
| Warranty Of Core Components: | Provided, 1 Year | Product Name: | Carton Erector |
| After Warranty Service: | Spare Parts | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energ |
| Condition: | New | Marketing Type: | New Product 2020 |
| Port: | Shanghai Ningbo Guangzhou | ||
Product Description
Products Description

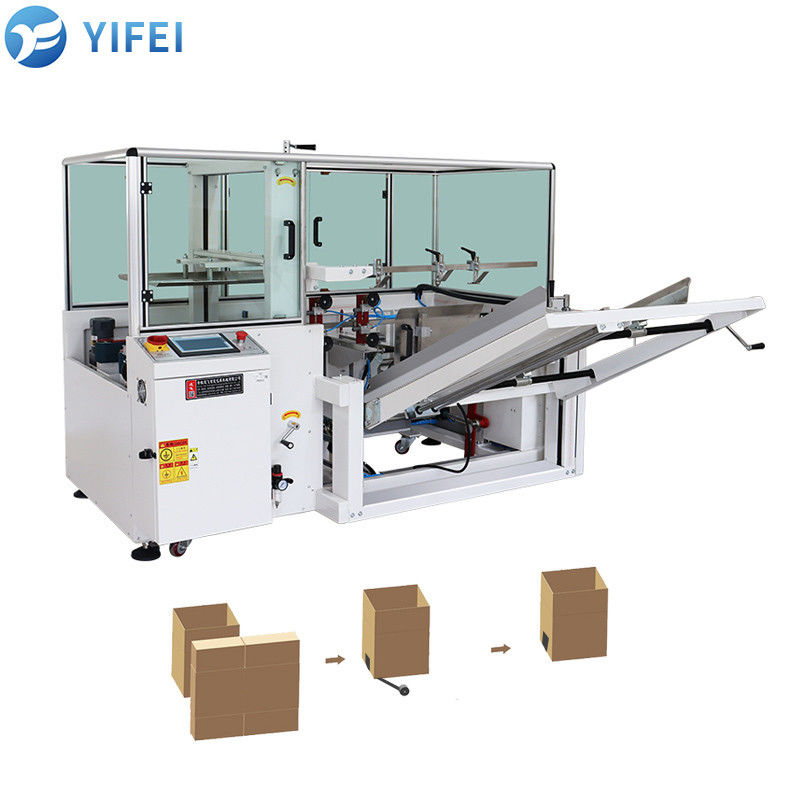

Carton Erector
Carton Erector is Let cartons placed in the machine's storage board manually, the machine will automatically pull the carton shape, automatically folded the bottom of the page and automatically sealed. The carton erector is a Semi-auto carton sealing machine which can fold the bottom cover of carton and seal; it can be operated separately, economic and high-efficiency, which is an ideal packaging machine.
Product Details
Product Parameter
Model | YPK-09 | YPK-09L | YPK-09M | ||
Voltage | 220/380V,50/60Hz | ||||
Table height | 625mm | ||||
Pneumatic | 6kg/cm2,450NL/min | ||||
Tape width | 48/60/75mm | ||||
Carton size | L200-500mm,W150-400mm,H120-400mm | L250-650mm W150-500mm H120-450mm | |||
Work speed | max12cartons/min | 15-18cartons/min | 4-10cartons/min | ||
Machine size | L1899*W2080*H1492mm | L2460*W2080*H1492mm | L2150*W2080*H1492mm | ||
Weight | 600kg | 650kg | 600kg | ||
Electrical Configuration
Motor | GPG |
PLC | Mitsubishi/Siemens |
Touch Screen | WEINVIEW/Siemens |
Cylinder,Solenoid valve | AirTAC |
Vacuum generator | CHELIC |
AC contactor | Schneider |
Intermediate relay | Schneider |
Button switch | Schneider |
Air switch | Schneider |
Sucker | CHELIC |
Bearing | NSK 9 |
Photoelectric sensor | SICK |
Product Advantages
Our Advantages
Packing&Shipping
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and
technical services, relying on technology to provide customers with packaging equipment solutions.The company's main products are:
granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine,automatic shrink film sealing machine, open box machine, packing machine, packing machine,palletizing machine, winding machine,spraying machine, filling machine, sealing machine, labeling machine, etc. packaging machinery and supporting production lines.Our products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries.
technical services, relying on technology to provide customers with packaging equipment solutions.The company's main products are:
granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine,automatic shrink film sealing machine, open box machine, packing machine, packing machine,palletizing machine, winding machine,spraying machine, filling machine, sealing machine, labeling machine, etc. packaging machinery and supporting production lines.Our products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries.
Exhibition
Exhibition show is aim in the packaging exhibition. Also we will attend other industrial exhibitions,such as the technial paper roll exhibitons or the tyres exhibitons.
Certifications
Why Choose Us
1. 21 years manufacture in packing machine.
2. 100% QC inspection before shipment.
3. 12 months warranty.
4. Product Certificated by CE.
5.Your inquiry related to our product & price will be replied within 24hours.
6.Well-trained & experienced staff are to answer all your inquiries in English of course.
7.We have strong R&D team here to help.
8.Good after-sale service offered, please get back if you got question.
2. 100% QC inspection before shipment.
3. 12 months warranty.
4. Product Certificated by CE.
5.Your inquiry related to our product & price will be replied within 24hours.
6.Well-trained & experienced staff are to answer all your inquiries in English of course.
7.We have strong R&D team here to help.
8.Good after-sale service offered, please get back if you got question.
FAQ
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
