Makes The Machine Easy To Use And More Efficiency
 |
Automatic Cardboard Box Carton Sealing Packing Forming Machine for Superior Packaging
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $4,500.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | Type: | Other, Other |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Condition: | New | Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Kinds |
| Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Pouch, Capsule, Case, Caton Case Box | Packaging Material: | Plastic, Paper, Metal, Wood |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V | Power: | 500W |
| Weight: | 400 KG | Dimension(L*W*H): | 2000*1900*1450mm |
| Key Selling Points: | Easy To Operate | Product Name: | Carton Box Erector Machine |
| Brand: | YF | Keyword: | Carton Erector |
| Advantage: | High Efficiency | Main Function: | Packing |
| Function: | Box Packing | Marketing Type: | New Product 2020 |
| Port: | Shanghai Ningbo Guangzhou | ||
Product Description
Products Description
Product Details
PRODUCTION

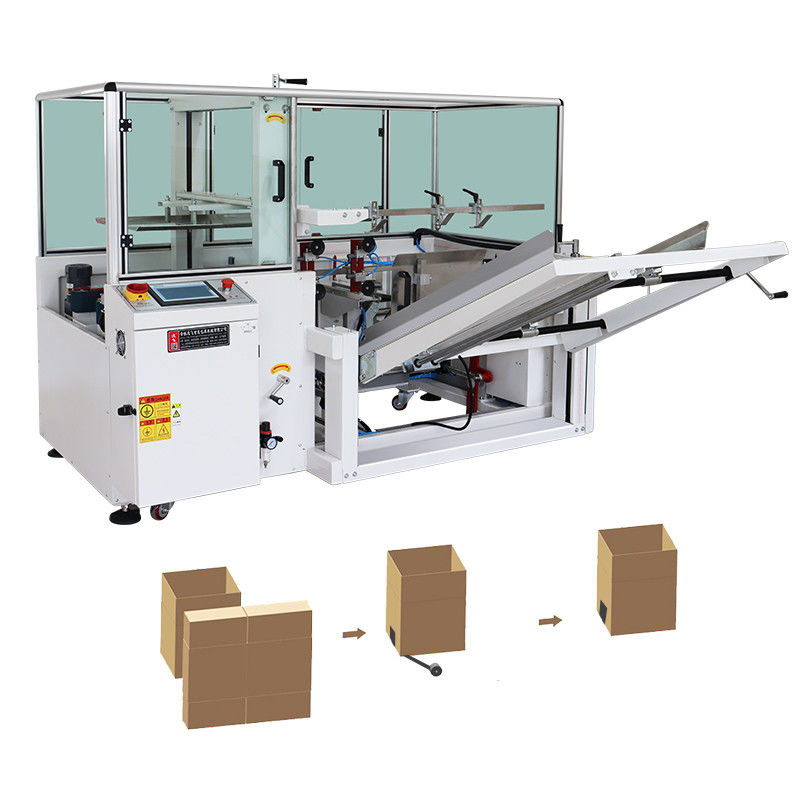

1.Automatically complete the unpacking, forming, bottom bending and bending, and at the same time complete the bottom tape sticking, saving time and labor.
2.A wide range of short carton, easy adjustment of different sizes of carton.
3. The whole operation is stable and reliable, the packaging effect is solid and beautiful.
4. Configuration is high, the main components use international famous brands.
5. The equipment is simple, easy to maintain.
6. Automatically correct the carton straight angle.
2.A wide range of short carton, easy adjustment of different sizes of carton.
3. The whole operation is stable and reliable, the packaging effect is solid and beautiful.
4. Configuration is high, the main components use international famous brands.
5. The equipment is simple, easy to maintain.
6. Automatically correct the carton straight angle.
Product Parameter
Model | YPK-09 | YPK-09L | YPK-09M | ||
Voltage | 220/380V,50/60Hz | ||||
Table height | 625mm | ||||
Pneumatic | 6kg/cm2,450NL/min | ||||
Tape width | 48/60/75mm | ||||
Carton size | L:200-500mm W:150-400mm H:120-400mm | L:250-650mm W:150-500mm H:120-450mm | |||
Work speed | max12 cartons/min | 15-18 cartons/min | 4-10 cartons/min | ||
Machine size | L1899*W2080*H1492mm | L2460*W2080*H1492mm | L2150*W2080*H1492mm | ||
Weight | 600kg | 650kg | 600kg | ||
Electrical Configuration
Motor | GPG |
PLC | Mitsubishi/Siemens |
Touch Screen | WEINVIEW/Siemens |
Cylinder,Solenoid valve | AirTAC |
Vacuum generator | CHELIC |
AC contactor | Schneider |
Intermediate relay | Schneider |
Button switch | Schneider |
Air switch | Schneider |
Sucker | CHELIC |
Bearing | NSK 9 |
Photoelectric sensor | SICK |
HMI TOUCH PANEL
CONTROL SYSTEM
THE SIMPLISTIC DESIGN
INTELLIGENT OPTICAL SENSOR
Ensures High Efficiency Of Case Erecting

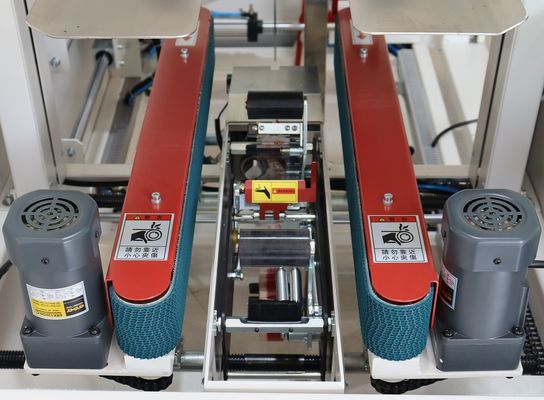

Wear-resistant conveyor belt
Imported conveyor belt, the movement and the belt cooperate to complete the sealing, the sealing effect is beautiful, no wrinkles
high-quality cutting tape movement, smooth delivery

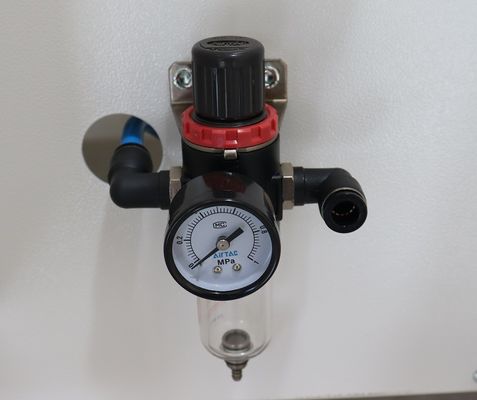

Gas source processor
Adopt AirTAC brand, reliable quality. it can drain the water through the filter,and the pressure can be adjusted
Related Product
Packing&Shipping
Company Profile
Certifications
Why Choose Us
1. Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.And if our product cannot function properly within 12 months, we'll offer spare parts for free.
2. Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3. Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4. File Services: We offer instruction manual and video to teach you how to using and testing machine.
5. Accessories: with competitive price when you need it.
6.Personalized services:we can design the machine all you want.
2. Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3. Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4. File Services: We offer instruction manual and video to teach you how to using and testing machine.
5. Accessories: with competitive price when you need it.
6.Personalized services:we can design the machine all you want.
High Quality Customer Feedback
FAQ
Q1: How to find a Packing machine suitable for my product?
A:Tell me about your product details：
1. What kind of product you have.
2. The size of your product( the length, width, and height).
1. What kind of product you have.
2. The size of your product( the length, width, and height).
Q2: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
A:We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q3: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q4:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q5: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q6: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q7: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
