The system consists of carton erector&bottom sealer, automatic carton sealer, four-corner sealing operation. It is full automatic control and reliable working, convenient operation and simple maintenance while, all machine can be used separately. This type of sealing machine is widely used in food, medicine, beverage, tobacco, daily chemical and other domestic and foreign industries.
 |
Carton Case Box Erector Bottom Sealer Automatic Carton Sealer Four-Corner Edge Sealing Machine Carton Sealing Packing Line
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $15,000.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, Case |
|---|---|---|---|
| Packaging Material: | Plastic, Paper | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220/380V |
| Dimension(L*W*H): | L1899*W2080*H1492mm | Weight: | 500 KG |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Other, Motor, Engine |
| Usage: | Packaging Carton Box | Material: | Stainless Steel |
| Characteristic: | Customizable | Factory: | 21 Years Experience |
| Keyword: | High Effieciency | Tape Width: | 48/60/75mm |
| ODM,OEM: | Welcome | Keyword 1: | Easy To Operate |
| Conveying Speed: | 18-20m/min | Work Speed: | 12pcs/min |
| Type: | Wrapping Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Port: | Shanghai Ningbo Guangzhou | ||
Product Description
Products Description

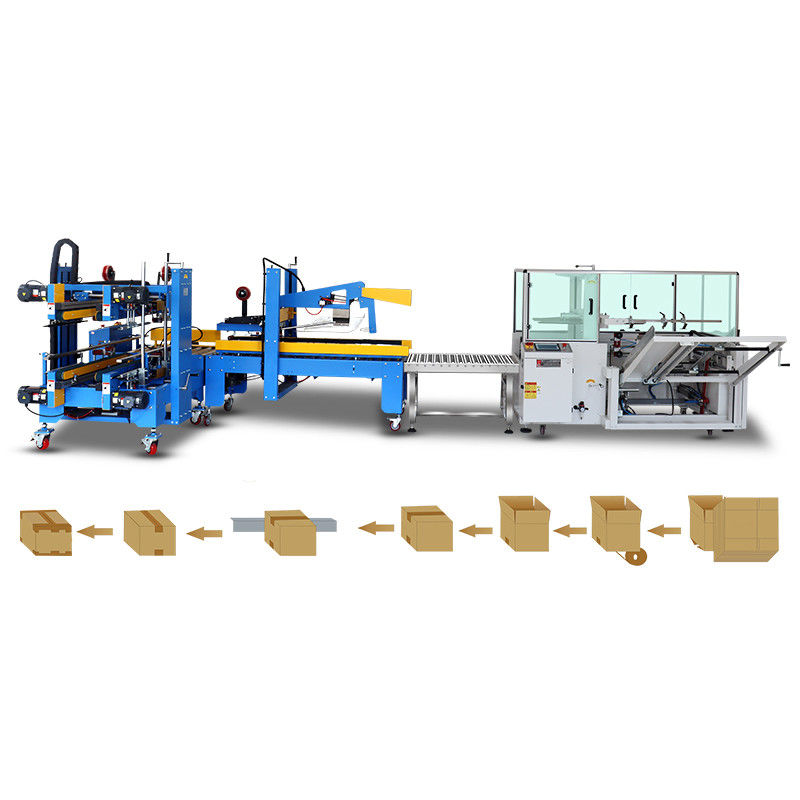

Full Automatic carton packing line:
Product Parameter
Model | YPK-09 |
Voltage | 220/380V,50/60Hz |
Table height | 625mm |
Pneumatic | 6kg/cm2, 450NL/min |
Tape width | 48/60/75mm |
Carton size | L200-500mm W150-400mm H120-400mm |
Work speed | max12pcs/min |
Machine size | L1899*W2080*H1492mm |
Weight | 600kg |
Model | YPC-05 |
Voltage | 220/380V,50/60Hz |
Table height | 600-750mm |
Belt speed | 18-20m/min |
Machine size | L1756*W830*H1450mm |
Tape width | 48/60/75mm |
Power | 400W |
Air pressure | 5kg.f/cm2 |
Carton size | L200-600mm W150-500mm H150-500mm |
Model | FXJ-55H |
Voltage | 220V/50Hz |
Work speed | 500-750pcs/h |
Power | 1KW |
Tape width | 48/60/72mm |
Machine size | L1900*W1200*H1530mm |
Carton size | L 320-500mm W 180-500mm H 190-500mm |
Electrical configuration 1.Motor:GPG 2.PLC: Mitsubishi/Siemens 3.Touch Screen: WEINVIEW/Siemens 4.Cylinder,Solenoid valve: AirTAC 5.Vacuum generator: CHELIC 6.AC contactor, intermediate relay, button switch, air switch: Schneider 7.Sucker: CHELIC 8.Bearing: NSK 9.Photoelectric sensor: SICK
* If you need more advanced configuration, we can customize it for you
Product details

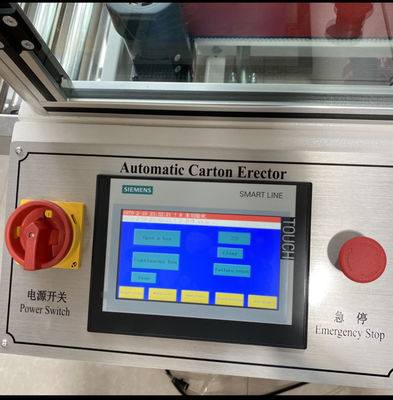

Touch screen control panel
Touch screen setting, intuitive interface, easy to operation with emergency stop switch, convenient and safe
Siemens PLC control, it is durable and stable with long service life and high efficiency

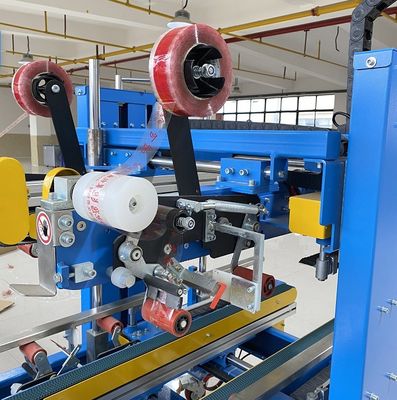

Imported conveyor belt, the movement and the belt cooperate to complete the sealing, the sealing effect is beautiful, no wrinkles high-quality cutting tape movement, smooth delivery

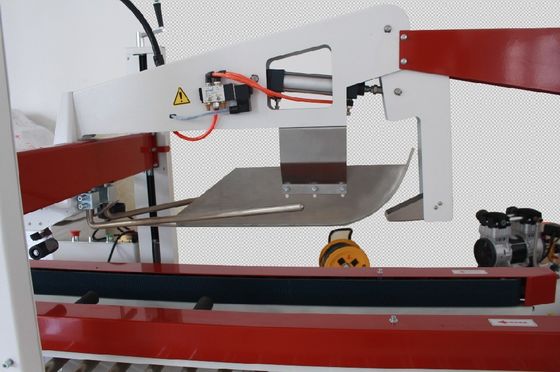

Folding flaps automatically,and this part was tested for more than 100000 times, very steady and durable.
The roller is smooth and textured, and the conveying is more labor-saving

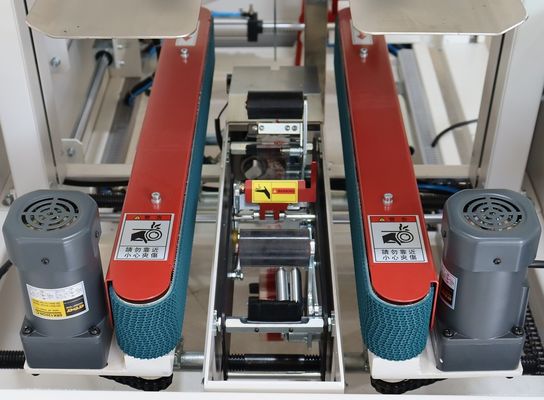

The belt replacement is simple and convenient, the transmission design of sealing head is reasonable, and the sealing is more smooth
Adopt AirTAC brand, Ensure stable pressure output and has a long service life, reliable quality
