Carton erector can finish the work of carton opening, shaping, folding and sticking adhesive tapes.Equipped with our consistency system, it runs precisely and reliably.This machine provides extremely secure sealing effect, without tape slipping problems.Hot melt glue system is optional.It is widely used with our carton sealer ,carton packer ,weighting system,labeling machine,printing machine ,strapping machine and conveyor system accordingly.
 |
Plastic Packaging Material Fully Automatic Box Case Carton Erector With Bottom Sealer
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $4,499.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Max Speed: | 20M/MIN | Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles |
|---|---|---|---|
| Packaging Type: | Cartons, Case | Packaging Material: | Plastic, Wood |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 220V/50HZ | Dimension(L*W*H): | 1899*2080*1492 |
| Weight: | 450 KG | Warranty: | 1 Year |
| Key Selling Points: | Good Operation, Stable Operation And High Efficiency | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | Other, PLC, Gear, Gearbox, Bearing, Engine, Pressure Vessel |
| After-sales Service Provided: | Free Spare Parts, Video Technical Support, Online Support | Product Name: | Carton Erector |
| Keyword: | Case Box Erecting Machine | Name: | Carton Unpacking And Bottom Sealing Machine |
| Suitable For: | Factory, E-commerce, Wholesale | Function: | Carton Erector With Bottom Tape Sealing |
| Usage: | Cartons, Case | Sealing: | Bottom Sealing |
| PLC: | Mitsubishi Or Siemens | Touch Screen: | Weinview Or Siemens |
| Model: | YPK-09/YPK-09M/YPK-09Z | Type: | SEALING MACHINE |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | Showroom Location: | None |
| Condition: | New | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Port: | Shanghai Ningbo Guangzhou |
Product Description
Product Description

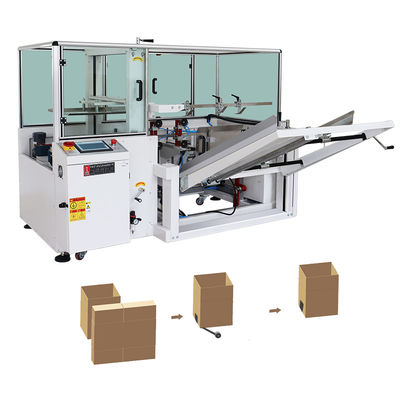

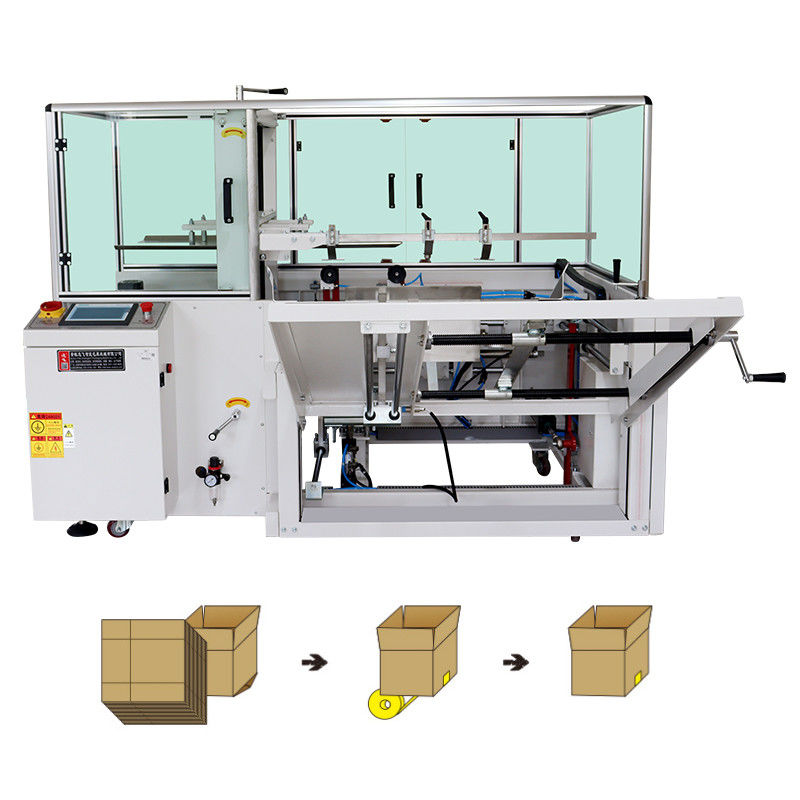

Fully Automatic Box Case Carton Erector
PRODUCT PARAMETERS | ||||||
Model No. | YPK-09 | YPK-09M | YPK-09Z | |||
unpacking speed | ≤12pcs/min | 4-10pcs/min | 15-18pcs/min | |||
carton size(L*W*H) | 250-500*150-400-120-400mm | 250-650*150-500*120-500mm | 250-500*200-400*120-400mm | |||
Machine size(L*W*H) | 1899*2080*1492mm | 2150*2080*1492mm | 2460*2080*1492mm | |||
table height | 620+50mm | 620+50mm | 620+50mm | |||
Power | 240W | 240W | 240W | |||
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ | |||
adhesive tape width | 48/68/75mm | 48/68/75mm | 48/68/75mm | |||
ELECTRICAL CONFIGURATION | ||
motor | GPG | |
PCL | Mitsubishi / Siemens | |
Intelligent touch screen | Taiwan Weinview / Siemens | |
Cylinder, solenoid valve | AirTAC | |
Vacuum generator | Chelic | |
AC contactor, intermediate relay, button switch, air switch | Schneider | |
sucker | Schneider | |
Bearing | NSK | |
Photoelectric sensor | SICK | |
*** Support various electrical configurations to meet your needs | ||
Features:
1, Automatically complete the unpacking, forming, bottom bending and bending, and at the same time complete the bottom tape sticking, saving time and labor
2, A wide range of short carton, easy adjustment of different sizes of carton
3, The whole operation is stable and reliable, the packaging effect is solid and beautiful
4, Configuration is high, the main components use international famous brands
5, The equipment is simple, easy to maintain
6, Automatically correct the carton straight angle
2, A wide range of short carton, easy adjustment of different sizes of carton
3, The whole operation is stable and reliable, the packaging effect is solid and beautiful
4, Configuration is high, the main components use international famous brands
5, The equipment is simple, easy to maintain
6, Automatically correct the carton straight angle
Product Details
Intelligent touch screen
Control panel Graphic and text interface, easy to operate, with emergency stop switch,
convenient and safe.

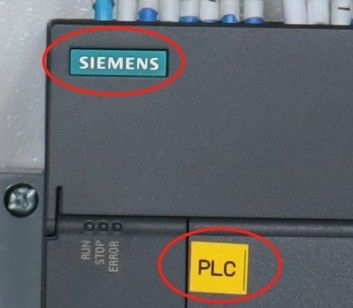

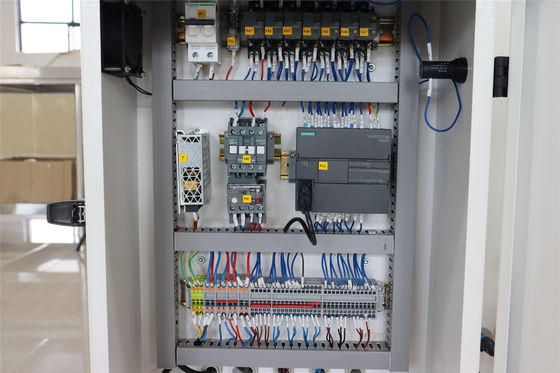

SIEMENS PLC Program Control & SCHNEIDER Electrical
With the strongest electrical system, imported Siemens, Taiwan Taibang motor, and other well-known brand accessories to improve the level of automation system.optional electrical configuration
Air source treatment
The air source treatment part can drain the water throught the filter and the pressure can be adjusted.

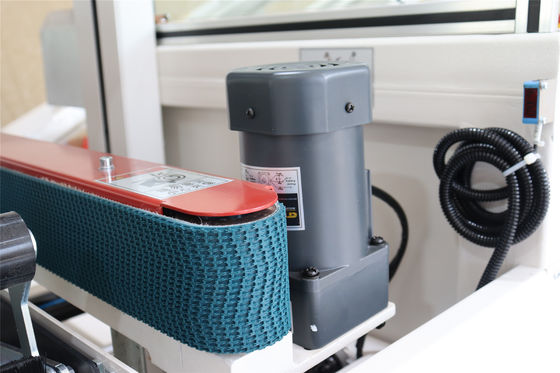

Good sealing effect
Double motor transmission, more stable and safe sealing.The sealing process is smoother,the advanced sealing liner has a smooth seal,high work efficiency,manpower saving,and sealing effect
Tips:
This machine is pneumatic device, need to connect additional air source can be used, air compressor needs to be purchased by the
customer.
customer.
