Carton erector machine can finish the work of carton opening, shaping, folding and sticking adhesive tapes. Equipped with our consistency system, it runs precisely and reliably.This machine provides extremely secure sealing effect, without tape slipping problems. Hot melt glue system is optional. It is widely used with our carton sealer, carton packer ,weighting system, labeling machine,printing machine ,strapping machine and conveyor system accordingly.
 |
18pcs/min Max Speed Fully Automatic Bag Packaging Tape Box Case Carton Erector Machine
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $4,500.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, Case, Cartons, Case, Box |
|---|---|---|---|
| Packaging Material: | Paper, Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V |
| Dimension(L*W*H): | 1899-2460*2080*1492mm | Weight: | 600 KG |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Other, Motor, Engine, Bearing, Pump |
| Carton Size Max: | L650*W500*H450mm | Carton Size Min: | L250*W150*H100mm |
| Adhesive Tape Width: | 48/60/75mm | Machine Weight: | 600kg |
| Max Speed: | 18pcs/min | Table Height: | 625mm |
| Power: | 0.3kw | Packing Material: | Tape |
| Key Word: | Carton Box Forming Machine | Type: | Wrapping Machine |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | Showroom Location: | None |
| Condition: | New | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Port: | Shanghai Ningbo Guangzhou |
Product Description
Products Description

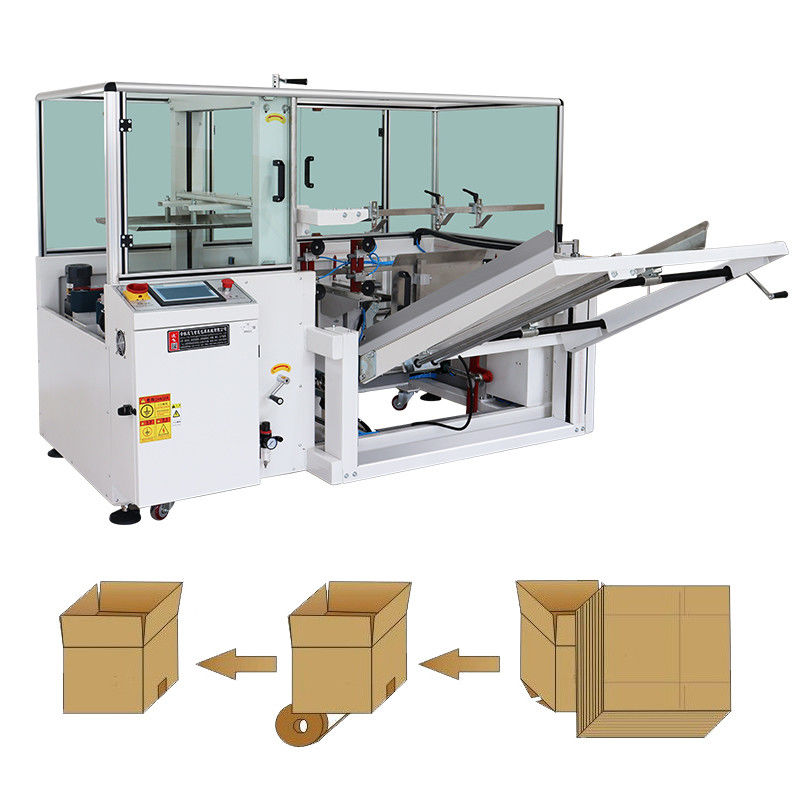

Automatic carton erector machine , case erecting machine (Siemens configuration)
Product Parameter
Model | YPK-09 | YPK-09L | YPK-09M | ||
Voltage | 220/380V,50/60Hz | ||||
Table height | 625mm | ||||
Pneumatic | 6kg/cm2,450NL/min | ||||
Tape width | 48/60/75mm | ||||
Carton size | L200-500mm,W150-400mm,H120-400mm | L250-650mm W150-500mm H120-450mm | |||
Work speed | max12cartons/min | 15-18cartons/min | 4-10cartons/min | ||
Machine size | L1899*W2080*H1492mm | L2460*W2080*H1492mm | L2150*W2080*H1492mm | ||
Weight | 600kg | 650kg | 600kg | ||
Electrical configuration 1.Motor:GPG 2.PLC: Mitsubishi/Siemens 3.Touch Screen: WEINVIEW/Siemens 4.Cylinder,Solenoid valve: AirTAC 5.Vacuum generator: CHELIC 6.AC contactor, intermediate relay, button switch, air switch: Schneider 7.Sucker: CHELIC 8.Bearing: NSK 9.Photoelectric sensor: SICK
* If you need more advanced configuration, we can customize it for you
Product details

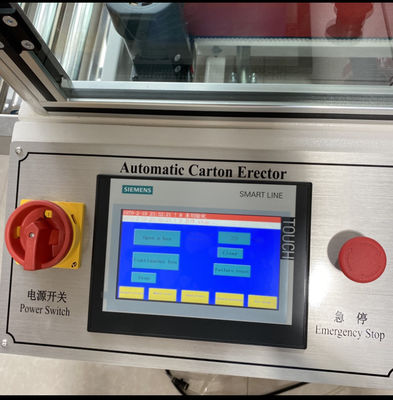

Touch screen control panel
Touch screen setting, intuitive interface, easy to operation with emergency stop switch, convenient and safe

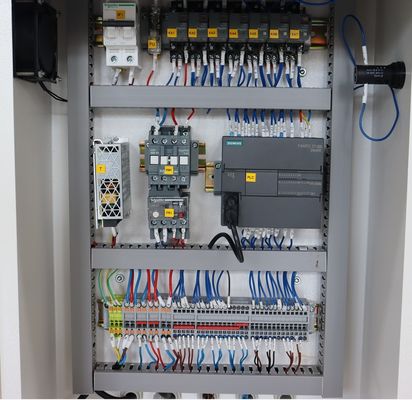

Imported PLC control system
Siemens PLC control, it is durable and stable with long service life and high efficiency
Taiwan brand sucker
Adopt Taiwan brand suction cup with high working efficiency, durable, suction box satable, carton does not fall

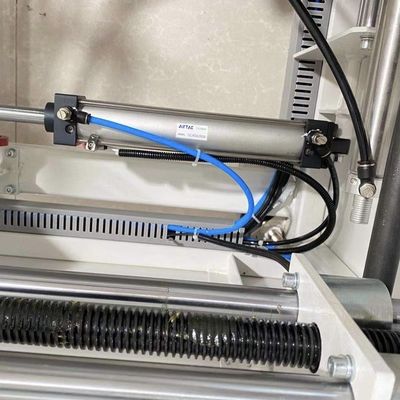

Pneumatic components
Adopt AirTAC brand, the machine runs stably and has a long service life, reliable quality

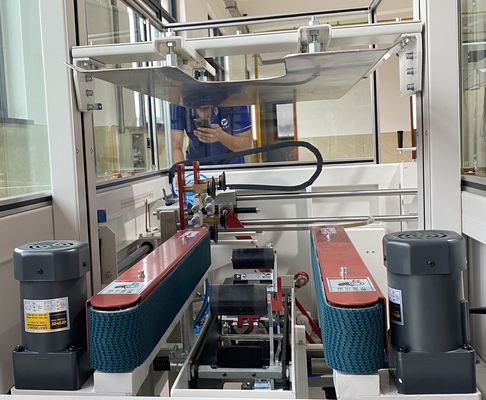

Wear-resistant conveyor belt
Imported conveyor belt, the movement and the belt cooperate to complete the sealing, the sealing effect is beautiful, no wrinkles high-quality cutting tape movement, smooth delivery

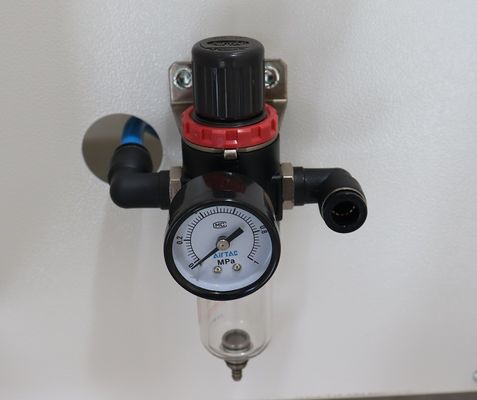

Gas source processor
Adopt AirTAC brand, reliable quality. it can drain the water through the filter,and the pressure can be adjusted
Height adjustment
Adjust the height of the pressing plate according to the height of the carton top cover, and adjust the hand wheel to make the carton pressing plate in the appropriate position
Product Feature:
Vertical storage is adopted for storaging carton blanks,for which carton blanks can be added at any time without stopping the machine;It's suitable for forming and sealing cartons of the same size.If carton size need to be changed,the operator should adjust the machine manually(finishing in 2-3 minutes);It's rationally designed so that the forming,folding and sealing process are accomplished simultaneously;All the parts are precise and durable,without causing any vibration in running .Running steadily with long life;Light in weight,high performance and speed.
