Intelligent control panel
1，Sealing mode
2，Manual vacuum mode
3，Timing vacuum mode
4，Gas-flushing mode
5，Gas-flushing vacuum mode
 |
Easy to Operate Nitrogen Gas Flushing Vaccum Sealer for Vertical Packaging
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
Payment & Shipping Terms:
| Price: | $2,350.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Type: | Vacuum Packing Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Application: | Food, Beverage, Commodity, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, Bags, Film, Foil, Pouch, Case |
| Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic |
| Driven Type: | Pneumatic | Voltage: | 220V, 220V/50HZ |
| Dimension(L*W*H): | 760*530*1920mm | Weight: | 120 KG, 150kg |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Model: | 700C | Pump Rate: | 20m3/h |
| Power: | 2000W | Sealing Size: | 700*10mm |
| Sealing Height: | 85-1420mm | Machine Size: | 910*840*1690mm |
Product Description
Product Description

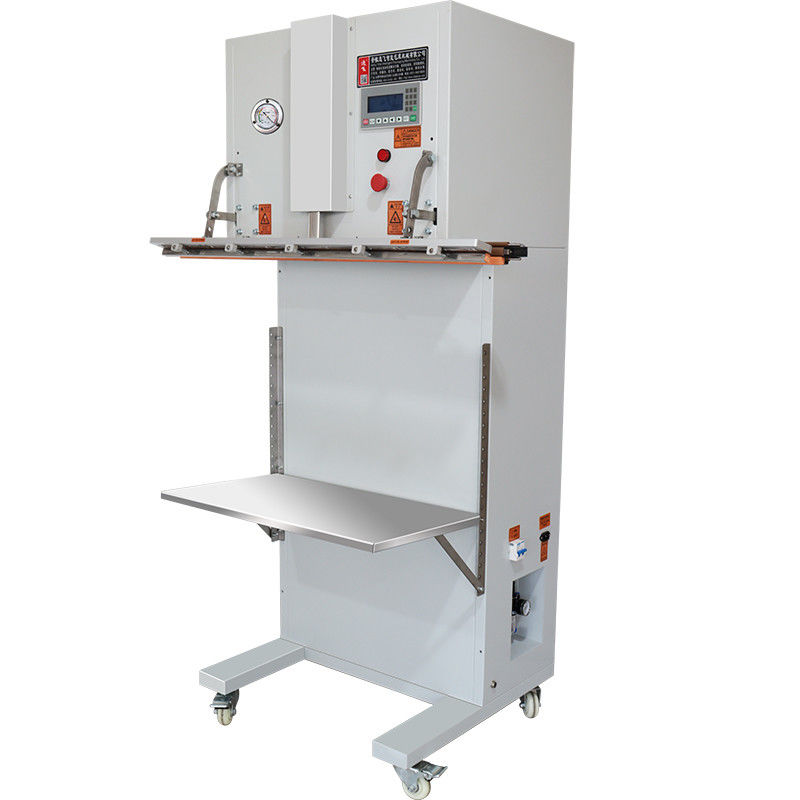

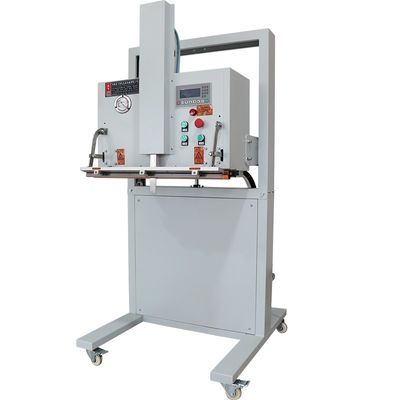

Vertical pneumatic external vacuum machine
Main features :
1. Suitable for large and heavy items, easy packaging.

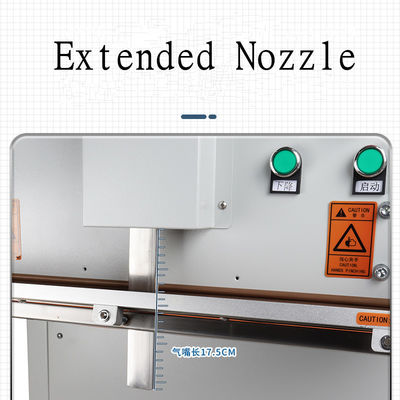

2.Air nozzle can be lifted and lengthened , convenient packaging with fast speed.
3.PLC programmable controller more stable.
4. Can be customized according to customer requirements and your logo
/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
TECHNICAL PARAMETER
Model | 700B | 700C |
Sealing size | 700*10mm | 700*10mm |
Vacuum speed | 20m3/h | 20m3/h |
Sealing height | 0-740mm | 85-1420mm |
Power | 2KW | 2KW |
Voltage | 220V/50HZ | 220V/50HZ |
Air supply | Air compressors need to be prepared separately | Air compressors need to be prepared separately |
Function | Gas flushing | Gas flushing |
Machine weight | 120kg | 150kg |
Machine dimension | 760*530*1920mm | 910*840*1690mm |
Product Details
Industrial 20m3/h vacuum pump with high speed
Pure copper transformer, stable for machine use
High quality sealing components, imported silicone laminate
Heavy duty removable casters
Application:
1. Suitable item. Solid item like beans,cloth,electric components,dry food,tea,fruit,vegetables,hardware etc.
2. Not suitable for powder/liquid,or product which sensitive with pressure.
3. Bag material.Paper,plastic,aluminium.Thick and big bag is acceptable.
2. Not suitable for powder/liquid,or product which sensitive with pressure.
3. Bag material.Paper,plastic,aluminium.Thick and big bag is acceptable.
