Apply Strap PP PET 13-25mm A19 Pneumatic Banding Strapping Machine for Hand Strapping
Product Details:
| Place of Origin: | Anhui, China |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $170.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Chemical | Packaging Type: | Cartons, Case |
|---|---|---|---|
| Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic |
| Driven Type: | Pneumatic | Voltage: | 220V |
| Dimension(L*W*H): | 40*25*25cm | Weight: | 8 KG |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | Other |
| Model: | A19 | Color: | Metallic Grey |
| Apply Strap: | PP/PET Strap | Seal Straps Form: | Friction And Hot Welding |
| Specification: | 13-25mm | Strap Width: | 0.5-1.5mm |
| Pull: | 3500N | Using Air Pressure: | 0.5-0.8Mpa |
| Splicing Time: | 1-5S Adjustable | Dimension: | 28*15*18cm |
| Type: | Wrapping Machine | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | Showroom Location: | None |
| Condition: | New | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Retail, Other |
Product Description
Product Paremeter
Model | A19 | B19 |
Color | Stainless Steel | Blackish Green |
Packing Belt Material | PP&PET | PET |
Packing Belt Width | 13-19mm | 13-19mm |
Packing Belt Thickness | 0.5-1.2mm | 0.5-1.5mm |
Max Tension Force | 3500N | 3500N |
Working Air Pressure | 0.5-0.8Mpa(72-100psi) | 0.5-0.8Mpa(72-100psi) |
Compressed Air Consumption | 0.3L/Min | 0.3L/Min |
Welding Time | 2-5S | 2-5S |
Product Details

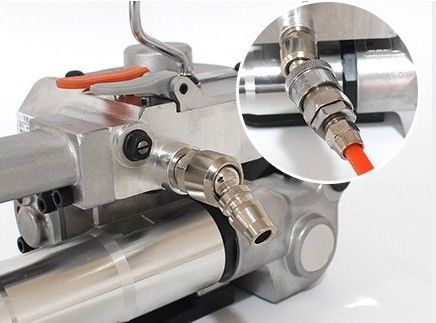

Air Hose Quick Connector
Adopting high quality alloy air hose qucik connector.The rotary design makes it convenient to move while strapping.
Rewind Button Setting
After packing is complete, press the rewind button with your hand until the packing belt is sent off the tension wheel and remove the baler
Difference Between Machine
Model | A19 | A25 | B19 | B25 | |||
Strap Material | PP PET | PP PET | |||||
Strap Width | 0.5-1.2mm | 0.5-1.5mm | 0.5-1.2mm | 0.5-1.5mm | |||
Strap Thickness | 13-19mm | 19-25mm | 13-19mm | 19-25mm | |||
Tension Force | 3500N | ||||||
Sealing Form | Friction&Welding(Buckle Free) | ||||||
Welding Time | 2-5S | ||||||
Working Pressure | 0.5-0.8Mpa | ||||||
Inbound Mode | Upper&Down Strap Separated | Without Upper&Down Strap Separated | |||||
Application
Recommend Products
Packaging&Shipping
Certifications
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world ,such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
FAQ
Q1.Why Choose Us?
1). 20+ years manufacture in packing machine
2). 100% QC inspection before shipment
3). 12 months warranty
4). Product Certificated by CE
Q2.Are you trading company or manufacturer ?
We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q3:How to find a Packing machine suitable for my product?
Please let us know your product and size so that we can recommend the suitable model for you.
Q4:How can I know your machine works well?
Before delivery, we shall test the machine working condition for you.
2). 100% QC inspection before shipment
3). 12 months warranty
4). Product Certificated by CE
Q2.Are you trading company or manufacturer ?
We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q3:How to find a Packing machine suitable for my product?
Please let us know your product and size so that we can recommend the suitable model for you.
Q4:How can I know your machine works well?
Before delivery, we shall test the machine working condition for you.
