The machine case is made from ABS engineering plastics.It has high impact resistance,heat resistance and abrasion resistance.
 |

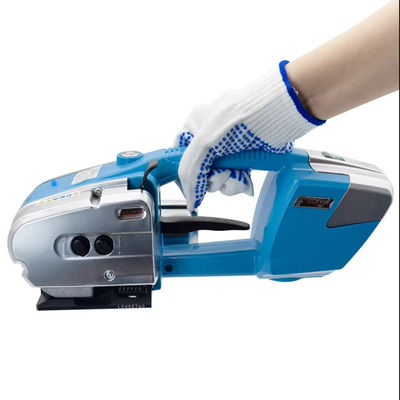

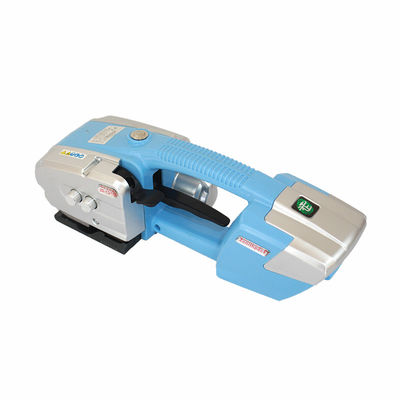

100-180 Bands Electric Handheld Strapping Tool JD13/16 with Rechargeable Battery
Product Details:
| Place of Origin: | Anhui, China |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $290.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Commodity, Chemical | Packaging Type: | Cartons |
|---|---|---|---|
| Packaging Material: | Paper | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 11.1V 3.0A/h 33.3Wh |
| Dimension(L*W*H): | 340*130*118mm | Weight: | 6 KG |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Core Components: | Other |
| Model: | JD13/16 | Color: | Blue |
| Apply Strap: | PP/PET | Apply Belt Width: | 13-16mm |
| Apply Belt Thickness: | 0.4-1.2mm | Battery Specification: | 11.1V 3.0Ah 33.3Wh |
| Charging Time: | 90mins | Number Of Bands: | 100-180Pcs |
| Pull: | 600-2800N | Tightening Speed: | 12cm/s |
| Type: | Wrapping Machine | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | None |
| Showroom Location: | None | Marketing Type: | Other |
| Warranty Of Core Components: | 1 Year | ||
Product Description
Product Paremeter
Model | JD13/16 |
Applicable Strap | PP/PET Strap |
Appliable Strap Thickness | 0.5-1.2mm |
Appliable Strap Width | 13-16mm |
Welding Mold | Friction&Welding |
Pull | 2800N |

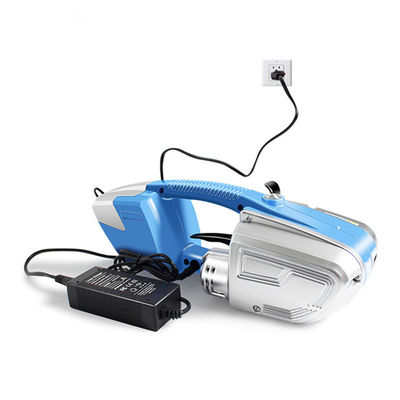

Battery | 3000Mah |
Charging Time | Charge 90Mins Can Strap 100-220Loops |
Battery Age | About Can Charge 2000Times |
Weight | 3.16kg |
Machine Size | 340x130x120mm |
Product Details
High Quality&Durable Case
Coreless Motor
Adopt coreless motor,strong operational stability and promient energy saving.Improving the controlling force and operational stability.

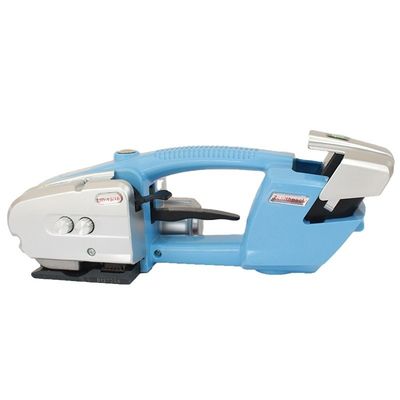

Portable Strap Release Lever Switch
The strap release lever switch is under the machine handle.Easy to adjust and release strap,saving time,improve efficiency.
Indicator Light Status
Blue light:Normal Working
Red light:Machine Failure
Power off inspection red flash:low battery
Purple:Work Finish
Difference Between Machine
Model | JD13/16 | V3 | JDC | DD19A | Q1 |
Battery Capacity | 3000mAh | 4000mAh | 4000mAh | 4000mAh | 5000mAh |
Pull | 600-2800N | 900-3200N | 600-2800N | 600-5500N | 400-3200N |
Charging Time | 90mins | 100mins | 90mins | 100mins | 90mins |
Display Screen | Without | Without | Without | With | With |
Apply Strap | PET/PP | PET/PP | PET/PP | PET/PP | PET/PP |
Apply Strap Width | 13-16mm | 13-16mm | 13-16mm | 13-19mm | 13-16mm |
Apply Strap Thickness | 0.4-1.2mm | 0.4-1.2mm | 0.4-1.2mm | 0.4-1.2mm | 0.4-1.2mm |
Application
Recommend Products
Packaging&Shipping
Certifications
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world ,such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
FAQ
Q1.Why Choose Us?
1). 20+ years manufacture in packing machine
2). 100% QC inspection before shipment
3). 12 months warranty
4). Product Certificated by CE
Q2.Are you trading company or manufacturer ?
We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q3:How to find a Packing machine suitable for my product?
Please let us know your product and size so that we can recommend the suitable model for you.
Q4:How can I know your machine works well?
Before delivery, we shall test the machine working condition for you.
2). 100% QC inspection before shipment
3). 12 months warranty
4). Product Certificated by CE
Q2.Are you trading company or manufacturer ?
We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q3:How to find a Packing machine suitable for my product?
Please let us know your product and size so that we can recommend the suitable model for you.
Q4:How can I know your machine works well?
Before delivery, we shall test the machine working condition for you.
