The operation is simple and easy to understand, with speed regulation function. Press the emergency stop button to stop the
machine
 |

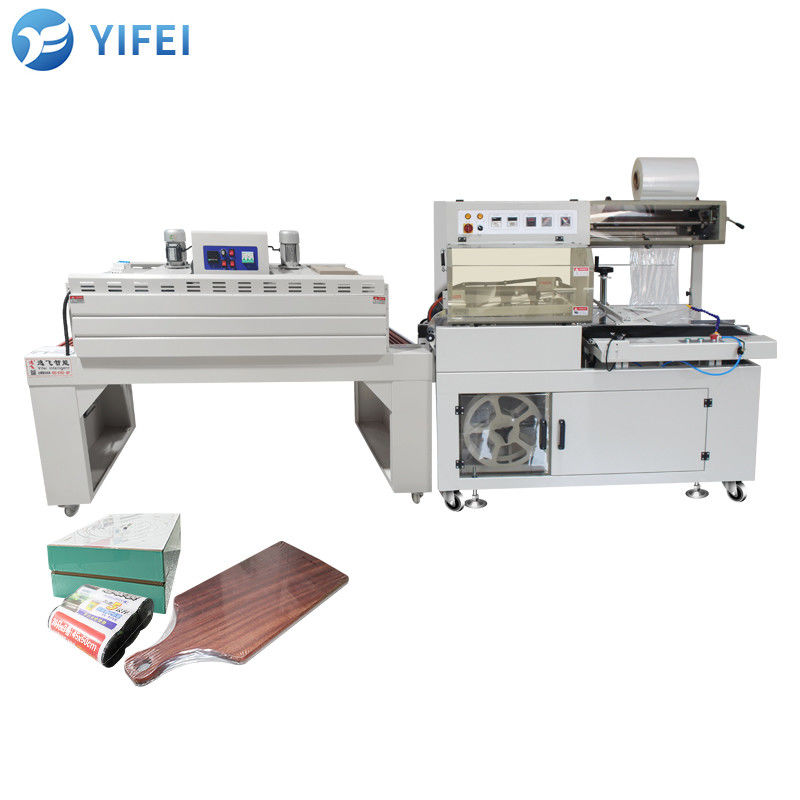

POF/PVC Small Bottles Plastic Film Automatic Heat Shrink Wrapping Machine for 300 KG
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
| Certification: | CE, CE |
Payment & Shipping Terms:
| Price: | $6,500.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, Bottles, Case |
|---|---|---|---|
| Packaging Material: | Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric, Electric | Voltage: | 220V/380v, 220V/380V |
| Weight: | 300 KG | After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided, Provided | Video Outgoing-inspection: | Provided, Provided |
| Core Components: | PLC, Pressure Vessel, Gear, Other, Motor, Engine, Bearing, Gearbox, Pump | Type: | Wrapping Machine, Wrapping Machine |
| Color: | Same As Picture | Feature: | Easy To Operate |
| Advantage: | Shrink Wrapping Machine Can Be Customed | Condition: | New, New |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | Showroom Location: | None |
| Warranty Of Core Components: | 1 Year | Marketing Type: | New Product 2022 |
Product Description
Products Description
Product Paremeter
Name | sealing and cutting machine |
Product Type | 450L sealing and cutting machine |
Seal dimensions | 56*44cm |
Machine dimensions | 170*94*145cm |
Packing height | 15cm |
Power | 1.5KW |
Power supply | 220V/50HZ/60HZ |
Packing speed | 15-30bags/min |
Pressure | 4kg/cm² |
Weight | 310kg |
Name | heat shrinker |
Product Type | 4525 heat shrinker |
Furnace size | 150*45*25cm |
Boundary dimension | 190*70*138cm |
Work efficiency | 2000-3000/h |
Power | 12KW |
Power supply | 380V/AC 50/60 220V/AC 50/60 |
Weight | 140kg |
When these models don't suit your needs, you have the option of customizing the model as you require

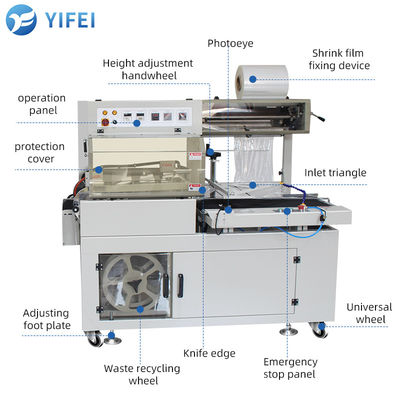

Product Details
Sealing and Cutting Machine
Control panel
Adopt new roller
External silica gel, high temperature resistance, wear resistance, no deformation, can be used for a long time

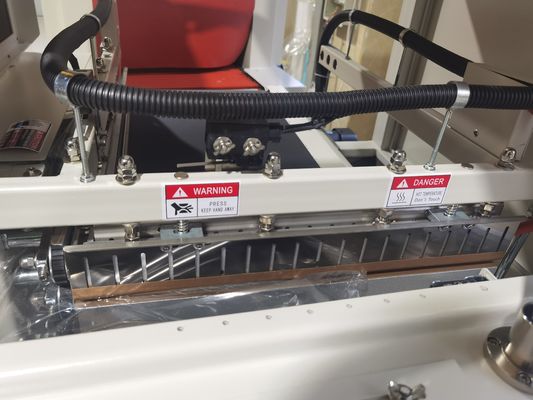

Stainless steel heating tube
Stainless steel heating pipe has long service life and high energy efficiency
Title goes here.
High power fan
It adopts high-power motor with strong wind force to form hot air circulation in the tunnel, which makes the shrink film heatedmore evenly and the effect more outstanding and beautiful
Speed control panel
The conveying speed can be adjusted, and the emergency stop switch can stop the machine with one key for safety protectionHeat Shrink Packaging Machine
* Height adjusting turntable
Screw, can adjust the vertical knife height hand wheel

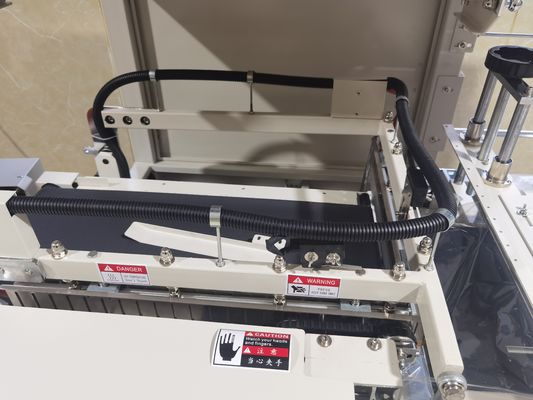

fixed rod
The fixed rod can play a role in fixing items, and guide the role, so that the sealing and cutting effect is good
Anti wrong cutting device Seal cutting knife with automatic protection function, not cutting knife film position, touching the object will
automatically spring, stop cutting down to avoid cutting by mistakeApplication
Shrink tunnel are applied to heat shrinkable film such as PVC, POF, PE etc It can pack large articles, especially suitable for packing beverage, beer, mineral water, oil, etc., which improves efficiency and has good packing effect
