Especially suitable for packaging drinks, beer, mineral water, glass water, cans, plastic bottles, glass bottles, cardboard boxes,
floors, ceramics, building materials, hardware and so on
 |
Automatic PE Film Sealer Sealing Shrinking Tunnel Shrink Sleeve Wrapping Machine For Beer Beverage
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $6,999.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Machinery & Hardware | Packaging Type: | Cartons, CANS, Bottles, Case |
|---|---|---|---|
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V |
| Dimension(L*W*H): | 1740*920*1700mm | Weight: | 250 KG |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts | Warranty: | Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Gear, Motor, Engine, Bearing, Gearbox, Pump |
| Keyword: | PE Film Shrinking Machine/Shrink Sleeve Wapping Machine | Function: | Bottle Packaging Machine |
| Packing Speed: | 0-20pcs/min | Applicable Shrink Film: | PE Film |
| Sealing Cutting Time: | 0.5-1.5s | Table Height: | 750mm |
| Conveyor Height: | 800±500mm(adjustable) | Film Width/Thickness: | Maximum Width 650mm Thickness 0.03-0.12mm |
| Color: | Same As Picture | Product Load: | 1-30kg(Samples Of Products Less Than 1kg Are Required) |
| Type: | Wrapping Machine | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Retail, Food Shop, Other |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United Kingdom, United States |
| Showroom Location: | Germany | Condition: | New |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
Product Description
Products Description

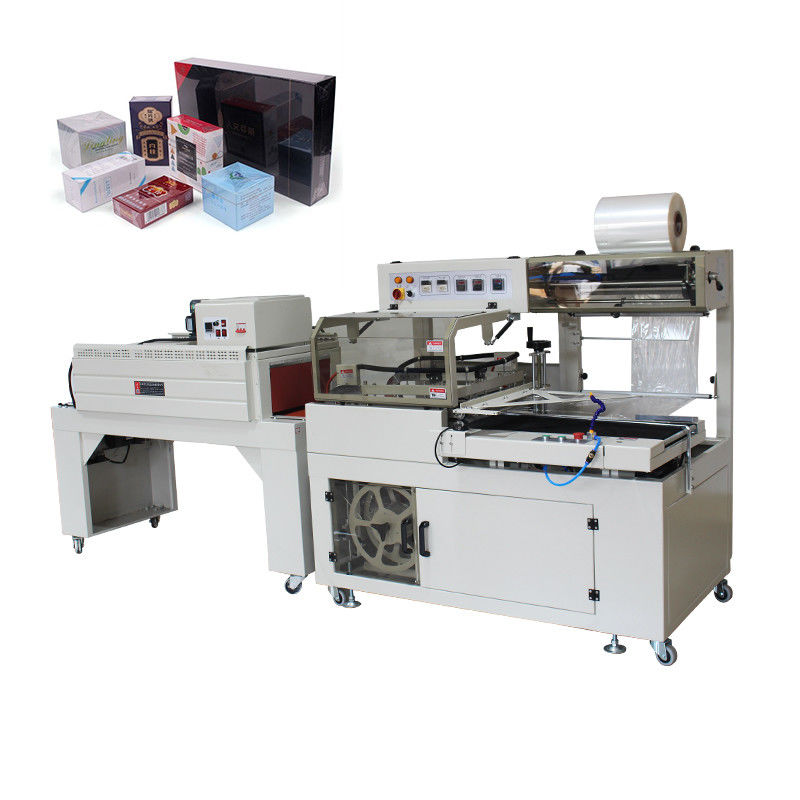

Automatic Shrink Sleeve Wrapping Machine
The machine packaging material is suitable for PE film, compared with the traditional carton packaging, greatly save the cost of packaging, goods after the machine packaging, with a clean appearance, beautiful, compact, to ensure the quality of goods and suitable for long-distance transportation characteristics.
Wide range of application
Product Parameter

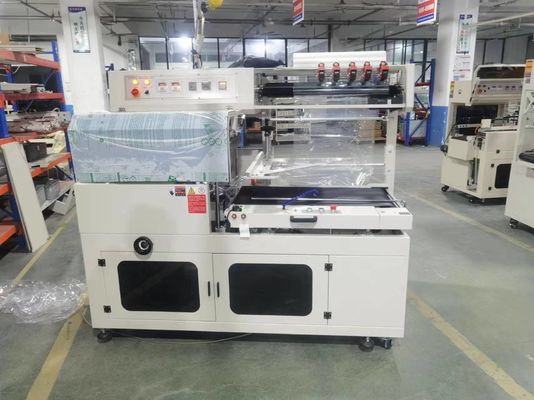

Automatic Sealing Cutting Machine | ||
Max package dimensions (L*W*H) | 550*330*380mm | |
Machine size(L*W*H) | 1500*1550*1920mm | |
Power | 1.5KW | |
Power supply | 220V/50HZ/60HZ | |
Packing speed | 12 pack/min | |
Max sealing size | 650mm | |
Weigth | 400kg | |

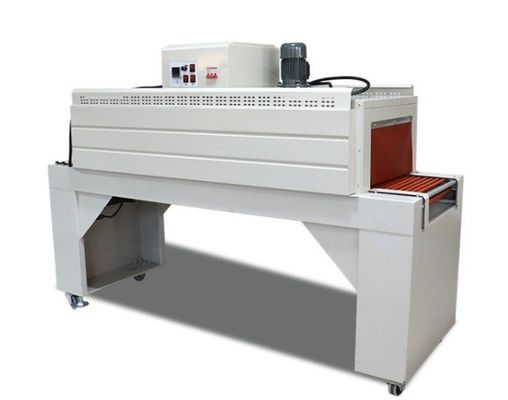

PE Heat Shrinker | ||
Max package size | 750*400mm | |
Machine size | 3115*950*1450mm | |
Shrinkage transfer speed | 0-10m/min | |
Voltage | 380V | |
Power | 27kw | |
Load | 80kg | |
Weight | 300kg | |
Semi-automatic Bottles PE Film Shrink Wrap Machine | ||
Max package dimensions(L*W*H) | 340*450*360mm | |
Max film width | 650mm | |
Covenyor table height | 750+50mm(adjustable) | |
Power | 1.4KW | |
Voltage | 220V/50HZ-60HZ | |
Packing speed | 10 pcs/min | |
Weigth | 180kg | |
Machine dimensions(L*W*H) | 950*920*1760mm | |
Product details
The lengthened cutter can pack large items, especially suitable for packaging drinks, beer, mineral water, oil, etc. to improve efficiency and good packaging effect
With imported photoelectric, the position of packaged goods can be accurately detected. Omron digital display temperature controller has built-in PID function. There is no need to worry about the damage of articles caused by inaccurate temperature
Lower film discharge device, copper wire motor, strong delivery of upper part of adhesive film
The air filter connects the gas here, and the air pressure is adjustable, which can remove the moisture in the gas and protect the cylinder
Four high-power fans with strong wind force form hot air circulation in the tunnel, making the shrink film heated more evenly and the effect more beautiful

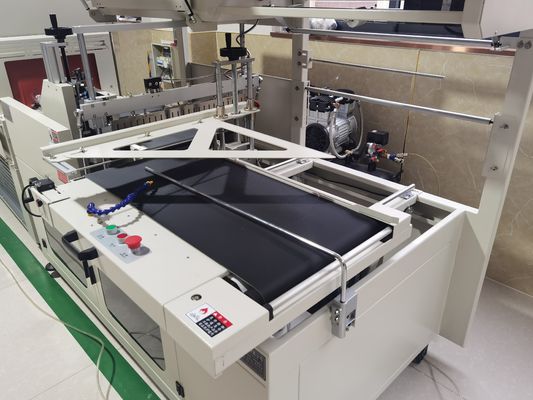

Chain conveyor, stable operation, good shrinkage effect, large bearing weight and long service life
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd.
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation,commissioning and technical services, relying on technology to provide customers with packaging equipment solutions. The company's main products are: granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, packing machine, pallet wrap machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc. packaging machinery and supporting production lines. Our products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries. After several years of development and growth, the company has established a sound sales network and service.
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Want to Know more details about this product
