The machine case is made from ABS engineering plastics.It has high impact resistance,heat resistance and abrasion resistance.
 |

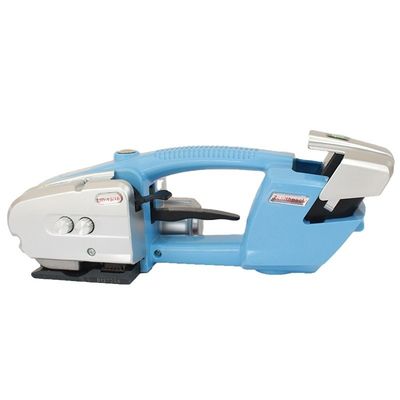

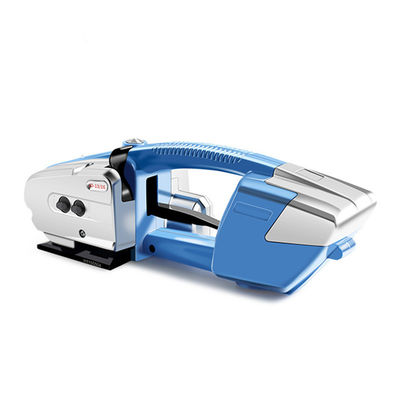

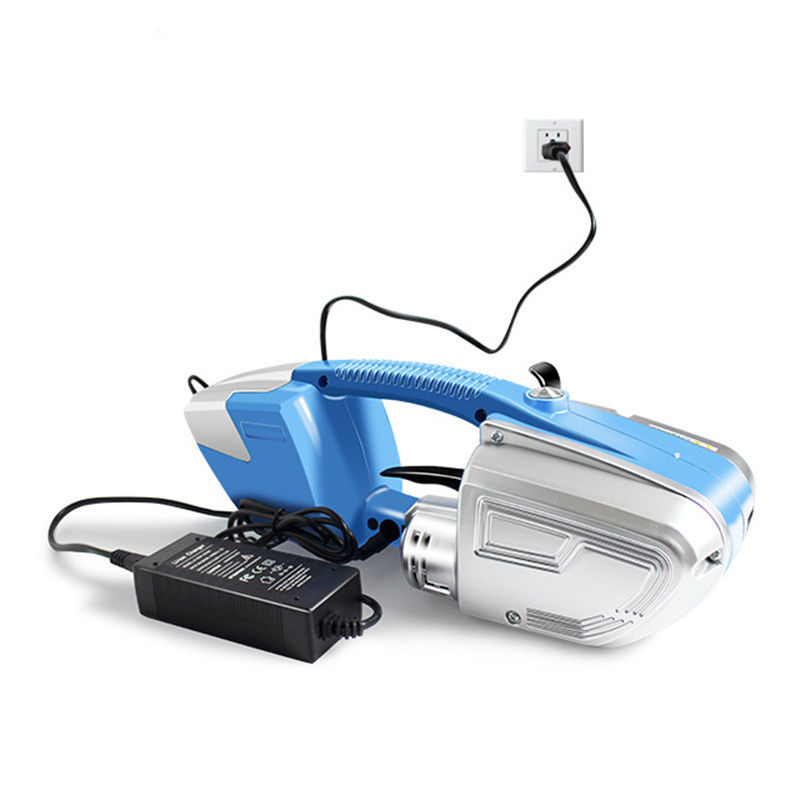

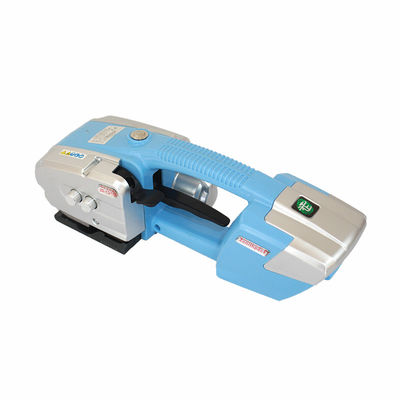

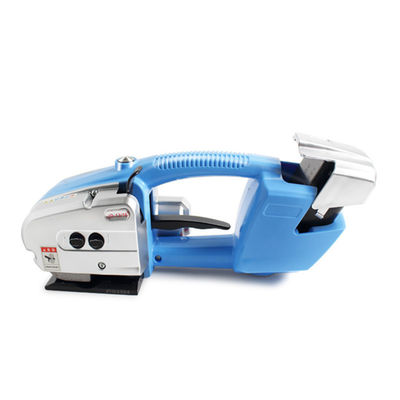

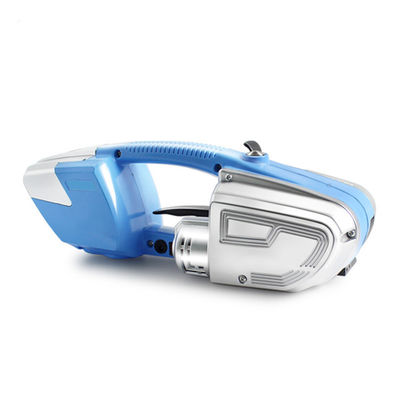

Carton Packaging Handheld Electric Strapping Machine for 0.4-1.2mm Strap Thickness
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $360.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Type: | Boxing Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons |
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Dimension(L*W*H): | 47X20X30cm |
| Weight: | 5 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Model: | JD13/16 |
| Voltage: | 14.4V | Charge Battery: | 3000Mah |
| Tension Force: | 600-3200N | Tighten Speed: | 100-200mm/s |
| Apply Strap Width: | 13-16mm | Apply Strap Thickess: | 0.4-1.2mm |
Product Description
Product Paremeter
Model | JD13/16 |
Applicable Strap | PP/PET Strap |
Appliable Strap Thickness | 0.5-1.2mm |
Appliable Strap Width | 13-16mm |
Welding Mold | Friction&Welding |
Pull | 2800N |
Charging Time | Charge 90Mins Can Strap 100-220Loops |
Battery Age | About Can Charge 2000Times |
Weight | 3.16kg |
Machine Size | 340x130x120mm |
Product Details
High Quality&Durable Case
Coreless Motor
Adopt coreless motor,strong operational stability and promient energy saving.Improving the controlling force and operational stability.
Portable Strap Release Lever Switch
The strap release lever switch is under the machine handle.Easy to adjust and release strap,saving time,improve efficiency.
Indicator Light Status
Blue light:Normal Working
Red light:Machine Failure
Power off inspection red flash:low battery
Purple:Work Finish
Difference Between Machine
Model | JD13/16 | V3 | JDC | DD19A | Q1 |
Battery Capacity | 3000mAh | 4000mAh | 4000mAh | 4000mAh | 5000mAh |
Pull | 600-2800N | 900-3200N | 600-2800N | 600-5500N | 400-3200N |
Charging Time | 90mins | 100mins | 90mins | 100mins | 90mins |
Display Screen | Without | Without | Without | With | With |
Apply Strap | PET/PP | PET/PP | PET/PP | PET/PP | PET/PP |
Apply Strap Width | 13-16mm | 13-16mm | 13-16mm | 13-19mm | 13-16mm |
Apply Strap Thickness | 0.4-1.2mm | 0.4-1.2mm | 0.4-1.2mm | 0.4-1.2mm | 0.4-1.2mm |
Application
Recommend Products
Packaging&Shipping
Certifications
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world ,such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
