2. Different packaging sizes: L-shaped sealing and cutting machines have a lot of restrictions on the packaging product size because the sealing knives are fixed. The cutting knife of the side sealing machine can be raised and lowered, which is suitable for packaging slightly higher products. Because the side knife of the side sealing machine is always in the state of sealing and cutting, there is no limit to the length of the product in theory.
 |

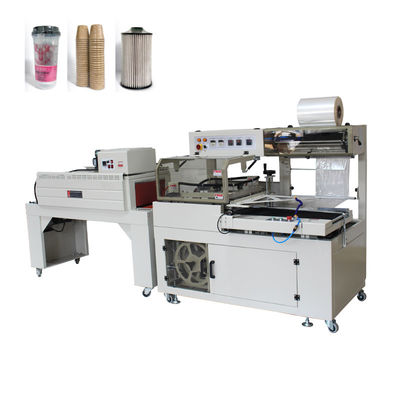

360 KG Load Capacity Industrial Shrink Wrapping Machine for Plastic Packaging Needs
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $3,000.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Machinery & Hardware, Textiles | Packaging Type: | Cartons, CANS, Bottles, Case |
|---|---|---|---|
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V |
| Dimension(L*W*H): | 170*94*175mm | Weight: | 360 KG |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts | Warranty: | Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Gear, Motor, Engine, Bearing, Gearbox, Pump |
| Product Name: | Automatic Side Sealing Shrink Wrap Machine | Function: | Cutting And Sealing Shrinking |
| Max Shrink Size: | 200*95*40mm | Applicable Shrink Film: | POF PVC Film |
| Max Sealing Size: | Width 95mm;Length:unlimit | Transfer Speed: | 0-10m/min |
| Advantage: | Meet Wrapping Technical Requestments | Keyword: | Heat Shrink Tunnel Packing Side Sealer |
| Color: | Same As Picture | Suitable For: | Longer Object Packaging |
| Type: | Wrapping Machine | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Retail, Food Shop, Other |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United Kingdom, United States |
| Showroom Location: | Germany | Condition: | New |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
Product Description
Products Description
Automatic Side Sealing Shrink Machine
Sealing and cutting length is not limited, used in food, medicine, hardware lamps, gift boxes, cosmetics, electronic components,wood products, eggs, tea and so on
Side Sealing Shrink Machine

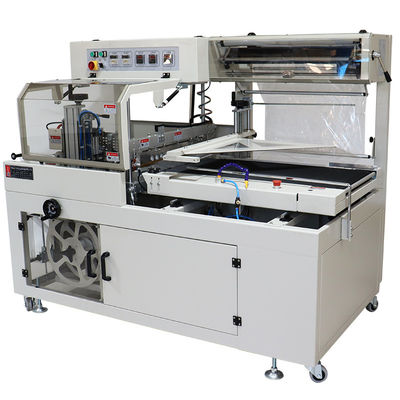

L-type Sealing Cutting Machine
Difference:
1. The structure of the cutter is different: the L-shaped sealing and cutting machine is composed of two cutters into an "L" shape. The cutter is fixed, and the two cutters of the edge sealing machine are separated. It has been in the state of sealing and cutting.
Product Parameter
Film Side Sealing Cutting Machine
The sealing and cutting length is not limited, the speed is 15m/min. Bagging, sealing and cutting and shrinking are completed automatically in one time, which greatly saves labor cost, convenient operation and high efficiency
Side Sealing Cutting Machine | ||||||
Product Type | BF-450 | BF-550 | BF-550/Higher | |||
Voltage | 220V 50HZ/60HZ | 220V 50HZ/60HZ | 220V 50HZ/60HZ | |||
Max Packaging height | 15cm | 15cm | 25cm | |||
Power | 1.5KW | 1.5KW | 1.5KW | |||
Sealing dimension | length: no limit width:45cm | length: no limit width:55cm | length: no limit width:55cm | |||
Machine dimensions | 170*94*145cm | 190*104*145cm | 200*104*150cm | |||
Packing speed | 15m/min | 15m/min | 15m/min | |||
Weigth | 310kg | 320kg | 320kg | |||
Product Type | BF-650 | BF-650/Higher | BF-750 | BF-750/Higher |
Voltage | 220V 50HZ/60HZ | 220V 50HZ/60HZ | 220V 50HZ/60HZ | 220V 50HZ/60HZ |
Max Packaging height | 15cm | 25cm | 15cm | 25cm |
Power | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
Sealing dimension | length: no limit width:65cm | length: no limit width:65cm | length: no limit width:75cm | length: no limit width:75cm |
Machine dimensions | 210*114*145cm | 220*114*150cm | 230*124*145cm | 240*124*150cm |
Packing speed | 15m/min | 15m/min | 15m/min | 15m/min |
Weigth | 340kg | 345kg | 360kg | 365kg |
Product Type | BF-850 | BF-850/Higher | BF-950 |
Voltage | 220V 50HZ/60HZ | 220V 50HZ/60HZ | 220V 50HZ/60HZ |
Max Packaging height | 15cm | 25cm | 25cm |
Power | 1.5KW | 1.5KW | 1.5KW |
Sealing dimension | length: no limit width:85cm | length: no limit width:85cm | length: no limit width:95cm |
Machine dimensions | 250*134*145cm | 260*134*150cm | 260*144*145cm |
Packing speed | 15m/min | 15m/min | 15m/min |
Weigth | 380kg | 345kg | 360kg |
Heat Shrink Wrap Machine
The use of well-known brand configuration, packaging effect is better, durable
Heat Shrink Wrap Machine | ||||||
Product Type | BS4525N | BS5530N | BS6530N | |||
Package size | 150*45*25cm | 150*55*30cm | 150*65*30cm | |||
Machine size | 190*70*138cm | 190*80*138cm | 190*90*138cm | |||
Shrinkage transfer speed | 0-10m/min | 0-10m/min | 0-10m/min | |||
Voltage | 380V | 380V | 380V | |||
Power | 12KW | 12KW | 12KW | |||
Load | 30kg | 30kg | 30kg | |||
Machine Weight | 140kg | 140kg | 150kg | |||
Product Type | BS7530N | BS7540N | BS9540N |
Package size | 150*75*30cm | 200*75*40cm | 200*95*40cm |
Machine size | 190*100*138cm | 190*110*138cm | 240*120*148cm |
Shrinkage transfer speed | 0-10m/min | 0-10m/min | 0-10m/min |
Voltage | 380V | 380V | 380V |
Power | 12KW | 12KW | 12KW |
Load | 30kg | 30kg | 30kg |
Machine Weight | 150kg | 140kg | 250kg |
Product details
<< Side sealer and cutter details >>

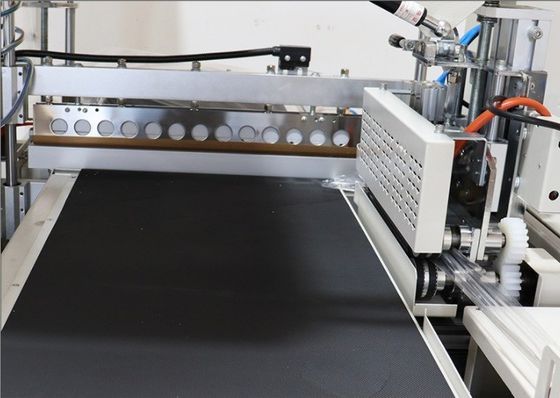

High quality alloy cutter
The sealing and cutting knife adopts imported DuPont Teflon coating, anti adhesion and high temperature resistant alloy knife.

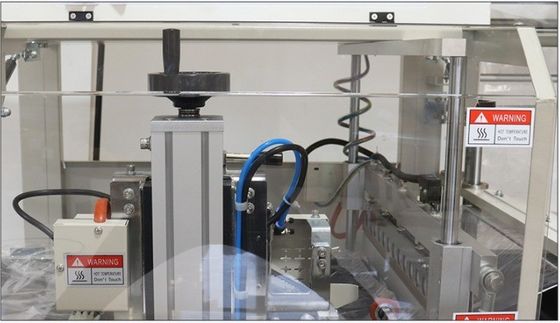

knife height adjustment
Turn the hand wheel to adjust the longitudinal knife opening height.

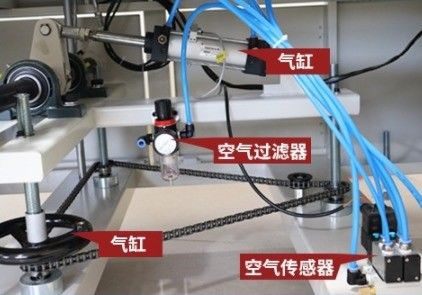

Pneumatic device
The gas reaches here through the gas nozzle to control the automatic sealing and cutting of the cutter.
Safe use of protective cover
The sealing and cutting part is equipped with glass protective cover and self alarm function for safe use.
Imported photoelectric induction
Automatic detection of products to ensure accurate sealing and cutting positioning.
Simple intelligent control panel
Rich functions and more intelligent. Adopts international brand electrical components such as Omron.
<< Heat shrink details >>

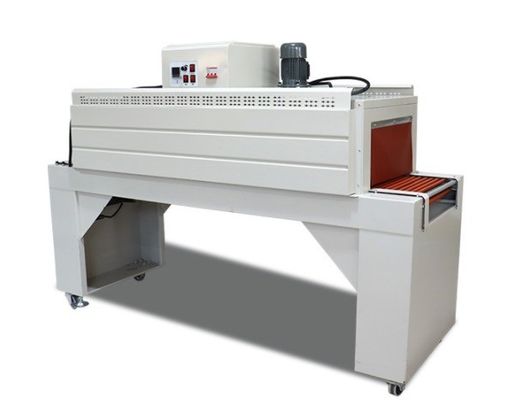

Air jet constant temperature heat shrinkable
Adopts heat dissipation pipe heating and high-speed hot air circulation. It has good shrinkage effect. It is suitable for PVC,POF, PP and other shrinkable films, especially POF shrinkable films.
Control panel
The operation is simple and easy to understand, with speed regulation function. Press the emergency stop button to stop the machine.
High power fan
With high-power motor and strong wind force, hot air circulation is formed in the furnace.
Adopt new roller
The outer cover is made of silica gel, resistant to high temperature, high temperature, wear resistance, no scalding film and deformation, and can be used for a long time
Sample
The length of sealing and cutting is not limited, and can be packaged with large length objects
This machine is pneumatic device, need to connect additional air source can be used, air compressor needs to be purchased by the
customer.
customer.
Certifications
Our Advantages
Our Advantages
*Best product and factory price
*On-time delivery and the shortest delivery time.
*OEM and customized service.
*User manuals will go with relative machines.
*User manuals will go with relative machines.
*1-Year warranty
If our product cannot function properly within 12 months,
we'll offer spare parts for free ; and you need to pay for the delivery.
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd.
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation,commissioning and technical services, relying on technology to provide customers with packaging equipment solutions. The company's main products are: granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, packing machine, pallet wrap machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc. packaging machinery and supporting production lines. Our products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries. After several years of development and growth, the company has established a sound sales network and service.
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Want to Know more details about this product
