Product Parameter
 |
Plastic Packaging Material Advanced Heat Shrink Wrapping Tunnel Machine for Wrapping
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $1,229.00/sets >=1 sets |
|---|
|
Detail Information |
|||
| Warranty: | 1 Year | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Condition: | New | Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles |
| Packaging Type: | Cartons | Packaging Material: | Plastic |
| Automatic Grade: | Semi-automatic | Driven Type: | Electric |
| Voltage: | 380V, 380V | Power: | 1200W, 1200W |
| Weight: | 140 KG, 140kg | Dimension(L*W*H): | 190*80*138mm |
| Key Selling Points: | Easy To Operate | Model: | BS5530N |
| Loading: | 30kg | Tunnel Size: | 150*55*30cm |
| Machine Size: | 190*138*80cm | Convey Speed: | 0-10m/min |
Product Description
Recommend Products
Products Description

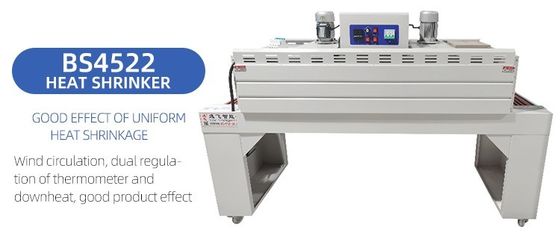

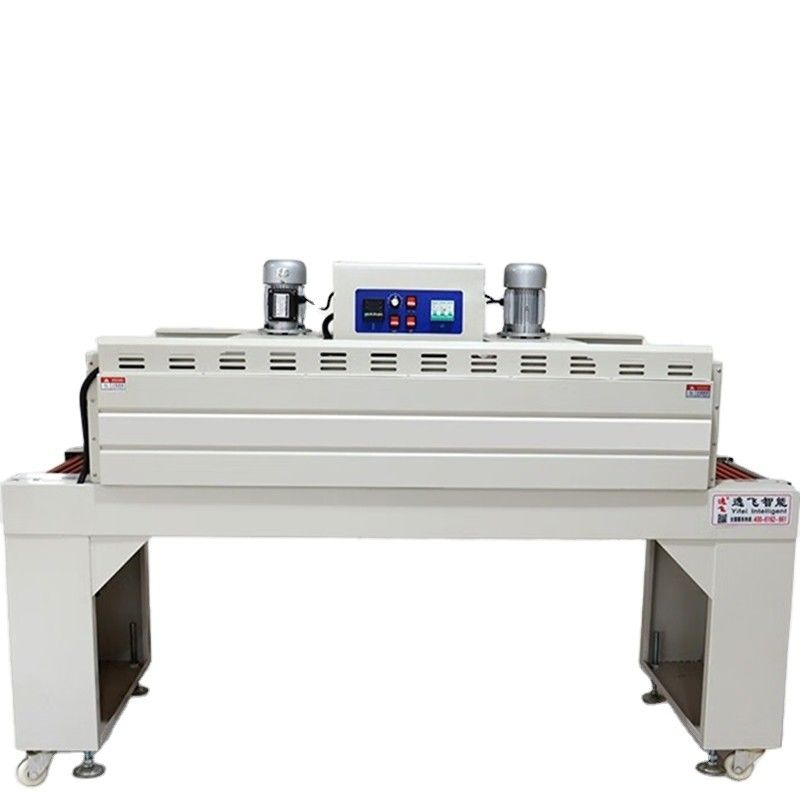

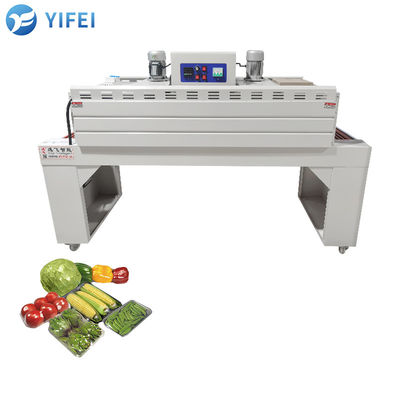

Heat Shrink Wrapping Packing Machine
Suitable for large quantity shrink wrapping industries such as stationery, food, cosmetic, pharmaceutical, metal industries etc, imported PLC automatic program control, easy operation, safety protection and alarm function, and effectively prevent incorrect, packaging, Equipped with imported horizontal and vertical detection photoelectric, easy to switch selection. It has the function of contact, specially designed for packing small size products. The machine can be connected with the production line, no need additional operators.
Model | BS4522N | BS5530N | BS6530N | BS7530N |
Voltage | 380V | 380V | 380V | 380V |
Loading | 30kg | 30kg | 30kg | 30kg |
Power | 9.6KW | 12KW | 12KW | 12KW |
Tunnel size | L120cm W45cm H22cm | L150cm W55cm H30cm | L150cm W65cm H30cm | L150cm W75cm H30cm |
Dimension | L160cm W70cm H130cm | L190cm W80cm H138cm | L190cm W95cm H130cm | L190cm W105cm H130cm |
Weight | 130kg | 140kg | 150kg | 150kg |
Features:
1.Electronic continuously variable transmission,stable and reliable,long life, low noise.
2.Far infrared quartz heating tube, working continuously generated when infrared radiation,with a strong wind cycle,the
1.Electronic continuously variable transmission,stable and reliable,long life, low noise.
2.Far infrared quartz heating tube, working continuously generated when infrared radiation,with a strong wind cycle,the
temperature of the heating chamber becomes more uniform,while saving energy.
3.Conveying part adopts high-power DC motor , can be variable speed,while carrying a higher rate.
4.It can work long hours,but also stable and reliable operation.
5.Using a special mechanical structure design,more beautiful, luxurious,leaving the maintenance becomes easy and
3.Conveying part adopts high-power DC motor , can be variable speed,while carrying a higher rate.
4.It can work long hours,but also stable and reliable operation.
5.Using a special mechanical structure design,more beautiful, luxurious,leaving the maintenance becomes easy and
convenient.

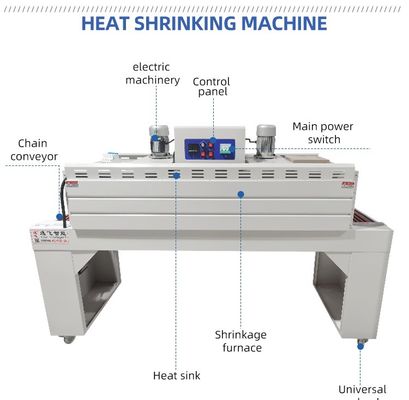

Product details
The operation is simple and easy to understand,with speed regulation function.Press the emergency stop button to stop the machine

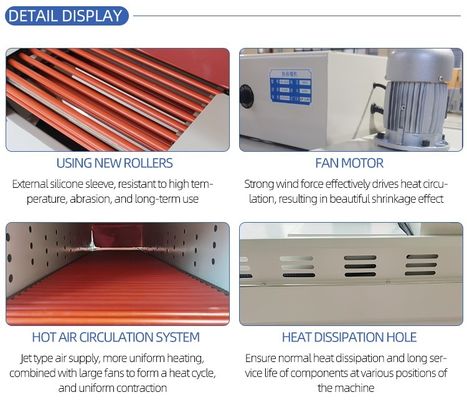

Adopt New Roller
External silica gel, high temperature resistance,wear resistance, no deformation,can be used for a long time.
Stainless steel heating pipe has long service life and high energy efficiency.
High Power Fan
It adopts high-power motor with strong wind force to form hot air circulation in the tunnel,which makes the shrink film heated more evenly and the effect more outstanding and beautiful.
Application
POF&PVC Film
PE Film
Certifications
Packaging&Shipping
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical services, relying on technology to provide customers with packaging equipment solutions.
The company's main products are: granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, packing machine, palletizing machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc. packaging machinery and supporting production lines.
Our products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries. After several years of development and growth, the company has established a sound sales network and service network, products sold well throughout the country, and exported to Europe, America, Southeast Asia and other countries all over the world
Over the years, our company has been praised and appreciated by the vast number of new and old customers in line with the purpose of "high quality and perfect service". In order to thank the vast number of new and old customers for their great love for Yifei packaging machinery, we solemnly promise that we are willing to repay our customers with the management concept of high quality and high service.
Warmly welcome You to Y-F Packaging Machinery for inspection and business negotiation.
