The product length of this machine is not limited,the speed is 15m/min.Bagging,sealing and cutting and shrinking are completed automatically in one time,which greatly saves labor cost,convenient operation and high efficiency.
 |
Electric Driven Automatic PE POF PVC Plastic Film Side Sealing And Cutting Machine With Heat Shrink Packaging Machine
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $4,899.00/sets 1-2 sets |
|---|
|
Detail Information |
|||
| Warranty: | 1 Year | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Condition: | New | Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles |
| Packaging Type: | Cartons | Packaging Material: | Plastic, POF |
| Automatic Grade: | Semi-automatic | Driven Type: | Electric |
| Voltage: | 220V/50HZ, 220V/50HZ | Power: | 1350W, 1500W |
| Weight: | 500 KG | Dimension(L*W*H): | 190*104*145cm |
| Key Selling Points: | Easy To Operate | Model: | BF550 |
| Max Packing Height: | ≤150mm | Machine Size: | 190*104*145cm |
| Packing Speed: | 15m/min | Sealing Length: | Unlimited |
| Sealing Width: | 55cm | Max Film Width: | 650mm |
Product Description
Recommend Products
Products Description
Automatic Side Sealing Shrink Machine
Sealing and cutting length is not limited, used in food,medicine,hardware lamps,gift boxes,cosmetics,electronic components,wood products,eggs,tea and so on
Side Sealing Shrink Machine
L-type Sealing Cutting Machine
Difference Between These Machine
1.The structure of the cutter is different: the L-shaped sealing and cutting machine is composed of two cutters into an "L"
shape. The cutter is fixed, and the two cutters of the edge sealing machine are separated. It has been in the state of sealing and cutting.
2.Different packaging sizes: L-shaped sealing and cutting machines have a lot of restrictions on the packaging product size because the sealing knives are fixed. The cutting knife of the side sealing machine can be raised and lowered, which is suitable for packaging slightly higher products. Because the side knife of the side sealing machine is always in the state of sealing and cutting,there is no limit to the length of the product in theory.
2.Different packaging sizes: L-shaped sealing and cutting machines have a lot of restrictions on the packaging product size because the sealing knives are fixed. The cutting knife of the side sealing machine can be raised and lowered, which is suitable for packaging slightly higher products. Because the side knife of the side sealing machine is always in the state of sealing and cutting,there is no limit to the length of the product in theory.
Product Paremeter

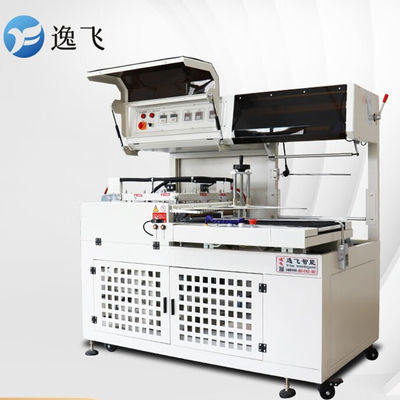

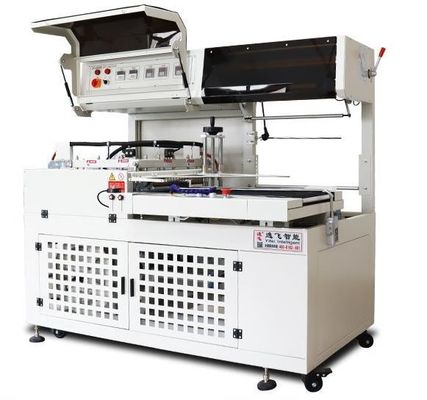

L Type Sealing Cutting Machine
The product length of this machine is limited,the packaging speed of the machine is 15-30 bags /min,and the packaging material is POF film(Can Customize PVC/PE Film)
Model | 450L | 550L | 650L | 750L | |||
Voltage | 220V 50/60HZ | 220V 50/60HZ | |||||
Power | 1.35KW | 1.35KW | |||||
Sealing dimension(LXWXH) | 45*15*15cm | 55*65*15cm | 65*75*15cm | 75*85*15cm | |||
Max Film Width | <55cm | <65cm | <75cm | <85cm | |||
Packaging Speed | 15-30Pcs/min | 15-30Pcs/min | |||||
Packaging Material | POF(Can Customize PE/PVC Film) | ||||||
Film Thickness | 0.015-0.06mm | ||||||
Film Side Sealing Cutting Machine
Side Sealing Cutting Machine | ||||||
Model | BF-450 | BF-550 | BF-550/Higher | |||
Voltage | 220V 50HZ/60HZ | 220V 50HZ/60HZ | 220V 50HZ/60HZ | |||
Max Packaging height | ≤15cm | ≤15cm | ≤25cm | |||
Power | 1.5KW | 1.5KW | 1.5KW | |||
Sealing dimension | length: unlimit width:45cm | length: unlimit width:55cm | length: unlimit width:55cm | |||
Machine dimensions(L*W*H) | 170*94*145cm | 190*104*145cm | 200*104*150cm | |||
Packing speed | 15m/min | 15m/min | 15m/min | |||
Weigth | 310kg | 320kg | 320kg | |||
Model | BF-650 | BF-650/Higher | BF-750 | ||
Voltage | 220V 50HZ/60HZ | 220V 50HZ/60HZ | 220V 50HZ/60HZ | ||
Max Packaging height | ≤15cm | ≤25cm | ≤15cm | ||
Power | 1.5KW | 1.5KW | 1.5KW | ||
Sealing dimension | length:unlimit width:65cm | length:unlimit width:65cm | length:unlimit width:75cm | ||
Machine dimensions(L*W*H) | 210*114*145cm | 220*114*150cm | 230*124*145cm | ||
Packing speed | 15m/min | 15m/min | 15m/min | ||
Weigth | 340kg | 345kg | 360kg | ||
Model | BF-750/Higher | BF-850 | BF-850/Higher | BF-950 | |||
Voltage | 220V 50HZ/60HZ | 220V 50HZ/60HZ | 220V 50HZ/60HZ | 220V 50HZ/60HZ | |||
Max Packaging height | ≤25cm | ≤15cm | ≤25cm | ≤25cm | |||
Power | 1.5KW | 1.5KW | 1.5KW | 1.5KW | |||
Sealing dimension | length:unlimit width:75cm | length:unlimit width:85cm | length:unlimit width:85cm | length:unlimit width:95cm | |||
Machine dimensions(L*W*H) | 240*124*150cm | 250*134*145cm | 260*134*150cm | 260*144*145cm | |||
Packing speed | 15m/min | 15m/min | 15m/min | 15m/min | |||
Weigth | 365kg | 380kg | 380kg | 400kg | |||

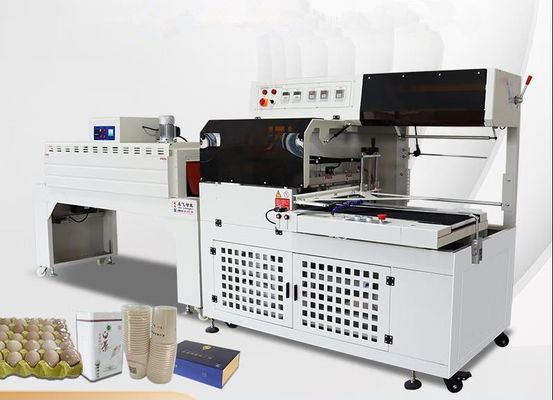

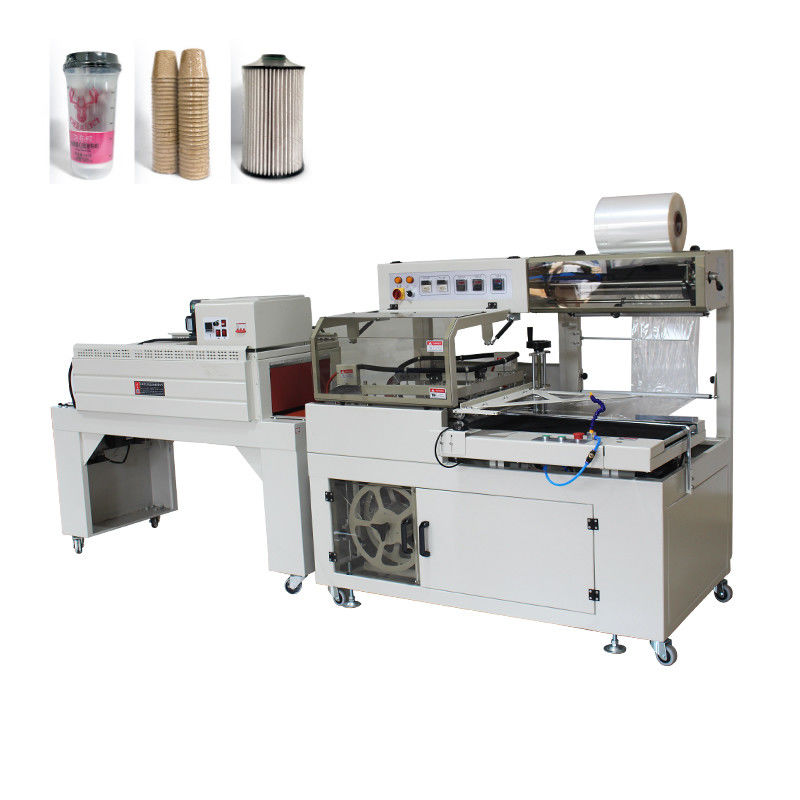

Heat Shrink Wrap Machine
The use of well-known brand configuration,packaging effect is better,durable
Heat Shrink Wrap Machine | ||||||
Model | BS4525N | BS5530N | BS6530N | |||
Tunnel Size(L*W*H) | 120*45*22cm | 150*55*30cm | 150*65*30cm | |||
Machine Size(L*W*H) | 160*70*130cm | 190*95*138cm | 190*95*130cm | |||
Transfer Speed | 0-10m/min | 0-10m/min | 0-10m/min | |||
Voltage | 380V | 380V | 380V | |||
Power | 9.6KW | 12KW | 12KW | |||
Loading | 30kg | 30kg | 30kg | |||
Machine Weight | 140kg | 145kg | 150kg | |||
Model | BS7530N | BS7540N | BS9540N | ||
Tunnel Size(L*W*H) | 150*75*30cm | 200*75*40cm | 190*95*40cm | ||
Machine Size(L*W*H) | 190*105*130cm | 190*110*138cm | 240*115*140cm | ||
Transfer Speed | 0-10m/min | 0-10m/min | 0-10m/min | ||
Voltage | 380V | 380V | 380V | ||
Power | 12KW | 12KW | 12KW | ||
Loading | 30kg | 30kg | 30kg | ||
Machine Weight | 155kg | 180kg | 200kg | ||
Product details
<< Side Sealer And Cutter Details >>
High Quality Alloy Cutter
The sealing and cutting knife adopts imported DuPont Teflon coating, anti adhesion and high temperature resistant alloy knife.
Knife Height Adjustment
Turn the hand wheel to adjust the longitudinal knife opening height.
Pneumatic Device
The gas reaches here through the gas nozzle to control the automatic sealing and cutting of the cutter.
Safe Use of Protective Cover
The sealing and cutting part is equipped with glass protective cover and self alarm function for safe use.
Imported Photoelectric Induction
Automatic detection of products to ensure accurate sealing and cutting positioning.
Simple Intelligent Control Panel
Rich functions and more intelligent. Adopts international brand electrical components such as Omron.
<< Heat Shrink Details >>
Air Jet Constant Temperature Heat Shrinkable
Adopts heat dissipation pipe heating and high-speed hot air circulation. It has good shrinkage effect. It is suitable for PVC,POF, PP and other shrinkable films, especially POF shrinkable films.
Control Panel
The operation is simple and easy to understand, with speed regulation function. Press the emergency stop button to stop the machine.
High Power Fan
With high-power motor and strong wind force, hot air circulation is formed in the furnace.
Adopt New Roller
The outer cover is made of silica gel, resistant to high temperature, high temperature, wear resistance, no scalding film and deformation, and can be used for a long time
Sample
The length of sealing and cutting is not limited, and can be packaged with large length objects
This machine is pneumatic device, need to connect additional air source can be used, air compressor needs to be purchased by the
customer.
customer.
