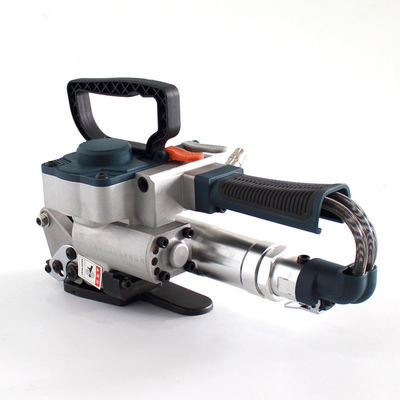

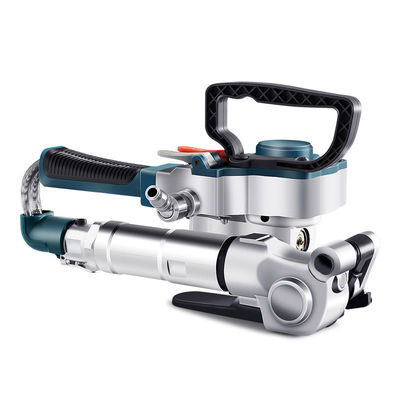

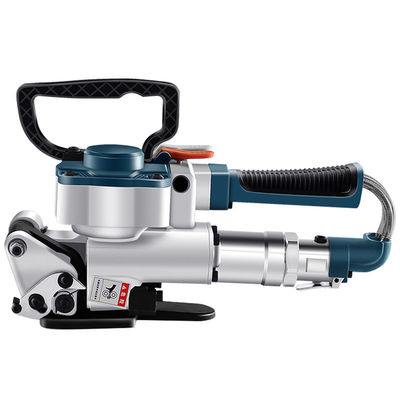

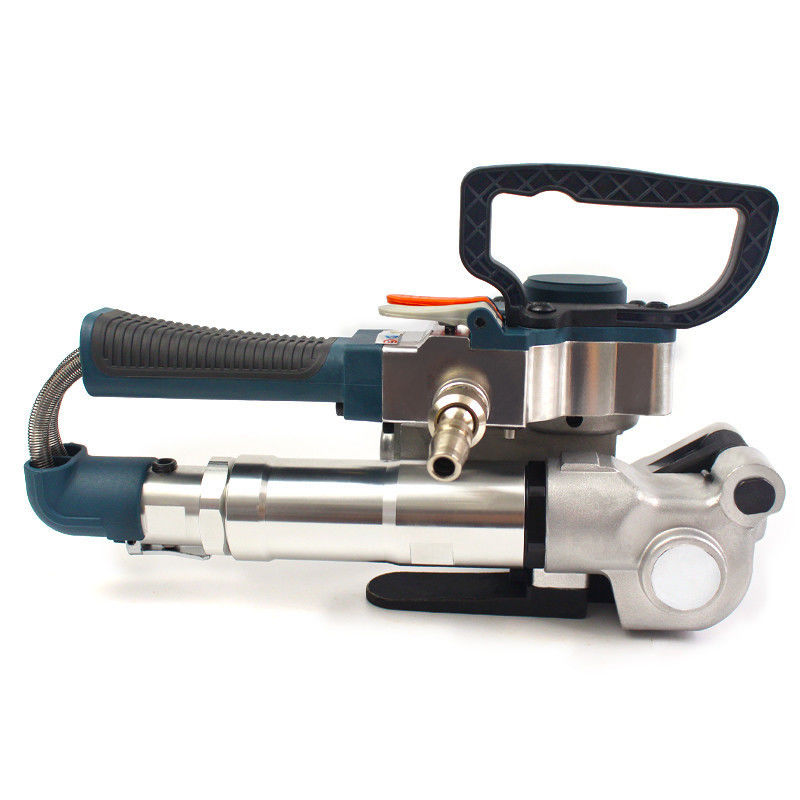

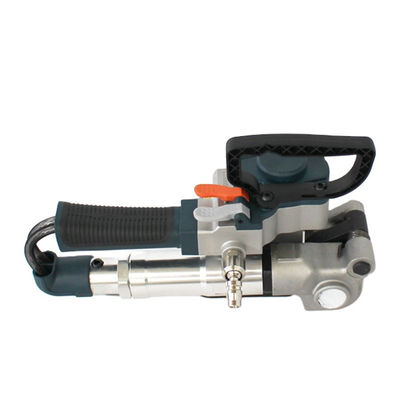

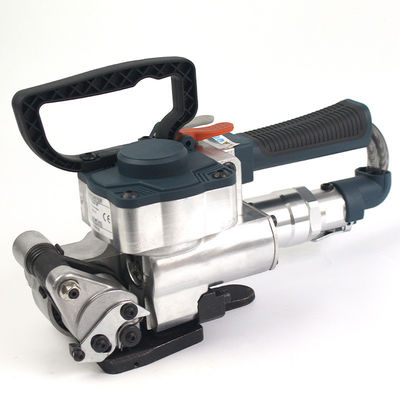

Friction Weld Strapping Tool for B19 Pneumatic Strapping Machine at Machinery Repair Shops
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $160.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Type: | Boxing Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons |
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Dimension(L*W*H): | 40X25X25cm |
| Weight: | 5.5 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Model: | B19 |
| Inbound Mode: | Upper And Down Separate | Apply Strap: | PET |
| Tension Force: | 3500N | Apply Strap Width: | 13-19mm |
| Apply Strap Tahickness: | 0.4-1.2mm | Sealing Strap: | Friction And Welding |
| Air Pressure: | 0.5-0.8Mpa | ||
Product Description
Product Paremeter
Model | A19 | B19 |
Color | Stainless Steel | Blackish Green |
Packing Belt Material | PP&PET | PET |
Packing Belt Width | 13-19mm | 13-19mm |
Packing Belt Thickness | 0.5-1.2mm | 0.5-1.5mm |
Max Tension Force | 3500N | 3500N |
Working Air Pressure | 0.5-0.8Mpa(72-100psi) | 0.5-0.8Mpa(72-100psi) |
Compressed Air Consumption | 0.3L/Min | 0.3L/Min |
Welding Time | 2-5S | 2-5S |
Product Details
Alloy Metal Instruction
This machine adopts metal construction ,high rigidity,and the front section of the baling band is fixed to prevent the baling band from running away.
Simple Operation
After preparing the strapping tape,press the tension button to tighten it and then loosen it,then press the fusion button until it
cuts off the fusion and then loosen it.
cuts off the fusion and then loosen it.
Air Hose Connector
The air hose need to be connected to the air pump to supply air for packing,using metal joints,360°swivel,wear resistant,long service life.
Rewind Button
When packing is complete,press and hold the tape button with your right hand until the baling tape is fed down from the tensioner pulley.Remove the baler.
Difference Between Machine
Model | A19 | A25 | B19 | B25 | |||
Strap Material | PP PET | PP PET | |||||
Strap Width | 0.5-1.2mm | 0.5-1.5mm | 0.5-1.2mm | 0.5-1.5mm | |||
Strap Thickness | 13-19mm | 19-25mm | 13-19mm | 19-25mm | |||
Tension Force | 3500N | ||||||
Sealing Form | Friction&Welding(Buckle Free) | ||||||
Welding Time | 2-5S | ||||||
Working Pressure | 0.5-0.8Mpa | ||||||
Inbound Mode | Upper&Down Strap Separated | Without Upper&Down Strap Separated | |||||
Application
Recommend Products
Packaging&Shipping
Certifications
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world ,such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
