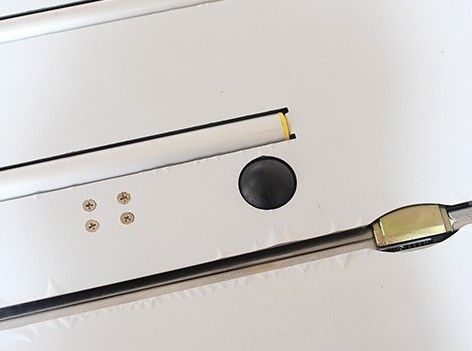

Sensing Ball And Rolling Wheel
Table top spherical sensing switch,automatic packing mode when used
 |
Easy to Operate Fully Automatic Strapping Machine for Carton PP and Double Motors
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $999.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Commodity, Chemical | Packaging Type: | Film, Foil |
|---|---|---|---|
| Packaging Material: | Paper | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V, 220V/50-60HZ |
| Dimension(L*W*H): | 1400*600*1430mm | Weight: | 80 KG |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Core Components: | Other |
| Model: | MH-201 | Power: | 400W/3A |
| Table Height: | 760mm | Dimension: | 1400*600*1430mm |
| Strapping Speed: | 2.5/S | Strapping Strength: | 0-50kg Adjustable |
| Strapping Specification: | W:80-800mmH:60-600mm | Machine Loading: | 80kg |
| Apply Strap: | W:15mm,Thickness:0.6mm | ||
Product Description
Products Description

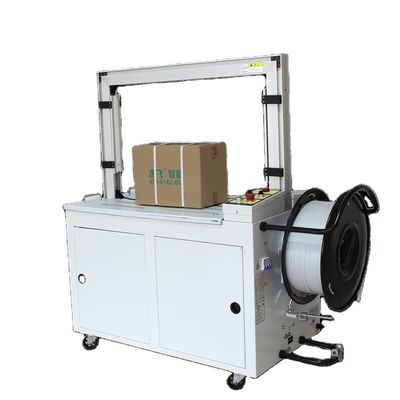

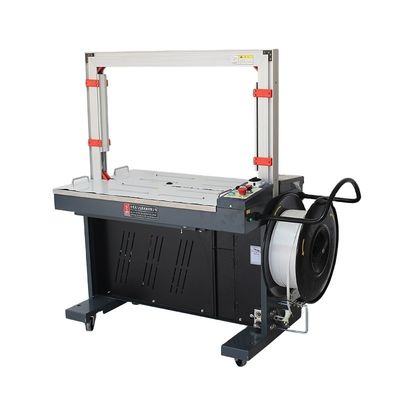

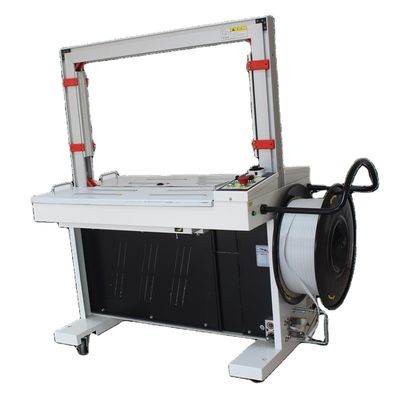

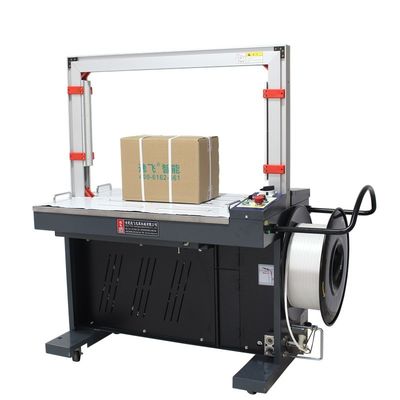

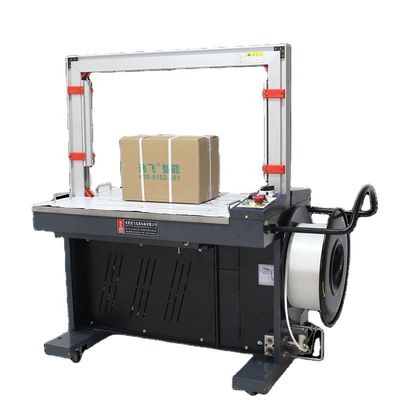

Automatic Box Case Carton Strapping Machine
Automatic strapping machine is the final procedure for packaging,the carton is bundled with packing belt to prevent scattering in the process of handling. It has many advantages, the carton is strapped with beautiful and firm, fast speed, and improves the packing efficiency of workers. At the same time, it reduces labor waste and saves costs.
Four packing methods to meet the needs(Automatic packing,Touch packing,Foot switch packing,Button packing)
Product Paremeter
Model | MH-101A |
Voltage | 380V/50Hz |
Tension | 0-60kg |
Weight | 220kg |
Strapping Specifications | W:80-800mm H:100-600mm |
Apply Size of Strap | W:9-15mm TH:0.6-1mm |
Machine size | 1410*625*1410mm |
Power | 1000W*3 |
Strapping speed | ≤2.5sec/cycle |
Applicable Packing Belt | PP |
Model | MH-101B |
Voltage | 380V/50Hz |
Tension | 0-60kg |
Weight | 220kg |
Strapping Specifications | W:80-800mm H:100-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1850*600*1520mm |
Power | 1000W*3 |
Strapping speed | ≤2.5sec/cycle |
Applicable Packing Belt | PP |
Model | MH-201A |
Voltage | 220V/50Hz |
Tension | 0-50kg |
Weight | 150KG |
Strapping Specifications | W:80-800mm H:60-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1410*600*1430mm |
Power | 400W*3 |
Strapping speed | ≤2.5sec/cycle |
Applicable Packing Belt | PP |
Model | MH-201B |
Voltage | 220V/50Hz |
Tension | 0-50kg |
Weight | 150KG |
Strapping Specifications | W:80-800mm H:60-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1910*620*1620mm |
Power | 400W*3 |
Strapping speed | ≤2.5sec/cycle |
Applicable Packing Belt | PP |
Model | MH-301A |
Voltage | 220V/50Hz |
Tension | ≥50kg |
Weight | 150KG |
Strapping Specifications | W:80-800mm H:60-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1410*600*1430mm |
Power | 500W*3 |
Strapping speed | ≤2sec/cycle |
Applicable Packing Belt | PP |
Model | MH-301B |
Voltage | 220V/50Hz |
Tension | ≥50kg |
Weight | 150KG |
Strapping Specifications | W:80-800mm H:60-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1910*620*1620mm |
Power | 500W*3 |
Strapping speed | ≤2sec/cycle |
Applicable Packing Belt | PP |
Product details
Packing Tape Tray
When packing, please be careful not to exceed the size of the tape tray
Foot Packing
The binding mode can be set freely according to the customer's needs. When the button of the control panel is adjusted to manual mode, the foot packing can be used
Aluminium Alloy Design
High-strength alloys are designed,durable and secure
