The use of well-known brand configuration,packaging effect is better,durable
 |

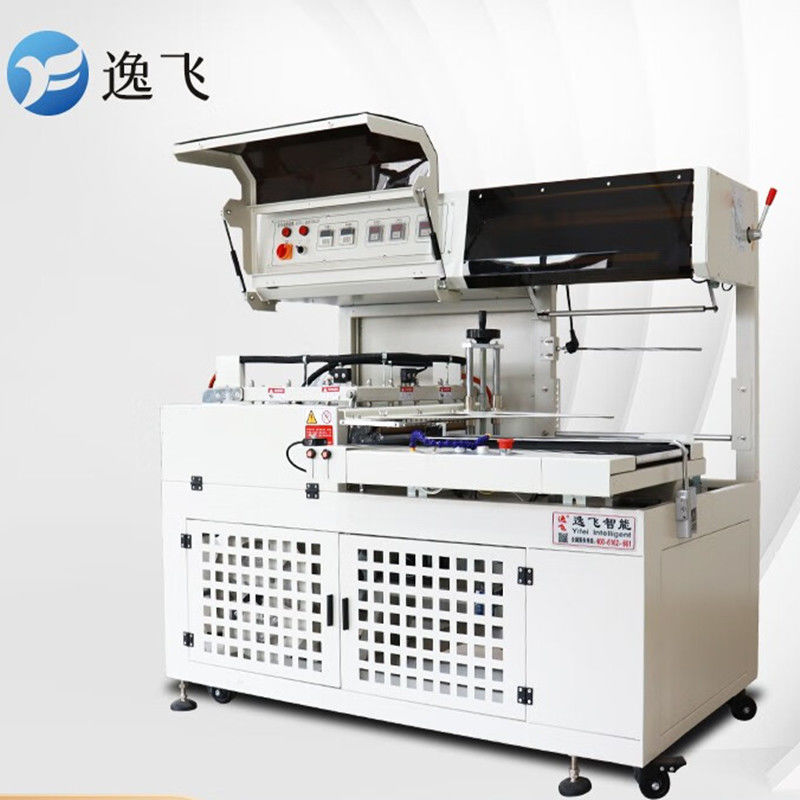

Semi-automatic Multifunction L Shape Sealer Cutter High Speed Shrink Wrapping Machine
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $6,569.00/sets 1-2 sets |
|---|
|
Detail Information |
|||
| Warranty: | 1 Year | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Condition: | New | Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles |
| Packaging Type: | Cartons, Film | Packaging Material: | Plastic |
| Automatic Grade: | Semi-automatic | Driven Type: | Electric |
| Voltage: | 220V/50HZ, 220V/50HZ/60HZ | Power: | 1350W, 1350W |
| Weight: | 300 KG, 300kg | Dimension(L*W*H): | 1700x970x145mm |
| Key Selling Points: | Easy To Operate | Model: | 450L |
| Machine Size: | 170x97x145mm | Sealing Strip Size: | 45*55*15cm |
| Packing Speed: | 15-30Pcs/min | Packing Material: | POF |
| Max Film Width: | Less Than 55cm | Film Thickness: | 0.015-0.06mm |
Product Description
Recommend Products
Products Description
L Type Sealing And Cutting Machine
1.The L-shaped sealing and cutting machine is composed of two cutters into an "L"
shape. The cutter is fixed, and the two cutters of the edge sealing machine are separated. It has been in the state of sealing and cutting.
2. L-shaped sealing and cutting machines have a lot of restrictions on the packaging product size because the sealing knives are fixed.
2. L-shaped sealing and cutting machines have a lot of restrictions on the packaging product size because the sealing knives are fixed.
Product Paremeter
L Type Sealing Cutting Machine
The product length of this machine is limited,the packaging speed of the machine is 15-30 bags /min,and the packaging material is POF film(Can Customize PVC/PE Film)
Model | 450L | 550L | 650L | 750L | |||
Voltage | 220V 50/60HZ | 220V 50/60HZ | |||||
Power | 1.35KW | 1.35KW | |||||
Sealing dimension(LXWXH) | 45*15*15cm | 55*65*15cm | 65*75*15cm | 75*85*15cm | |||
Max Film Width | <55cm | <65cm | <75cm | <85cm | |||
Packaging Speed | 15-30Pcs/min | 15-30Pcs/min | |||||
Packaging Material | POF(Can Customize PE/PVC Film) | ||||||
Film Thickness | 0.015-0.06mm | ||||||
Heat Shrink Wrap Machine
Heat Shrink Wrap Machine | ||||||
Model | BS4525N | BS5530N | BS6530N | |||
Tunnel Size(L*W*H) | 120*45*22cm | 150*55*30cm | 150*65*30cm | |||
Machine Size(L*W*H) | 160*70*130cm | 190*95*138cm | 190*95*130cm | |||
Transfer Speed | 0-10m/min | 0-10m/min | 0-10m/min | |||
Voltage | 380V | 380V | 380V | |||
Power | 9.6KW | 12KW | 12KW | |||
Loading | 30kg | 30kg | 30kg | |||
Machine Weight | 140kg | 145kg | 150kg | |||
Model | BS7530N | BS7540N | BS9540N | ||
Tunnel Size(L*W*H) | 150*75*30cm | 200*75*40cm | 190*95*40cm | ||
Machine Size(L*W*H) | 190*105*130cm | 190*110*138cm | 240*115*140cm | ||
Transfer Speed | 0-10m/min | 0-10m/min | 0-10m/min | ||
Voltage | 380V | 380V | 380V | ||
Power | 12KW | 12KW | 12KW | ||
Loading | 30kg | 30kg | 30kg | ||
Machine Weight | 155kg | 180kg | 200kg | ||
Product details

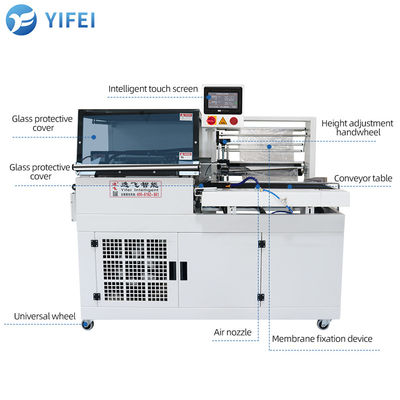

<< L Type Sealer And Cutter Details >>

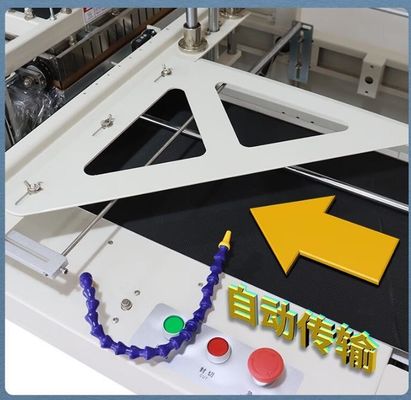

Adjust Product Height And Width
Manually Adjust the console height front and back to fit the product size.

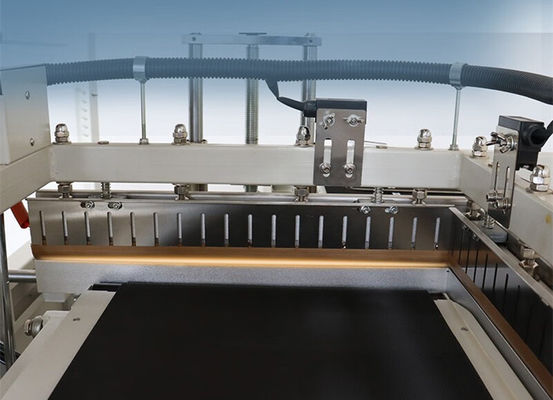

Knife Height Adjustment
Turn the hand wheel to adjust the longitudinal knife opening height.
Pneumatic Device
The gas reaches here through the gas nozzle to control the automatic sealing and cutting of the cutter.
Safe Use of Protective Cover
The sealing and cutting part is equipped with glass protective cover and self alarm function for safe use.
Imported Photoelectric Induction
Automatic detection of products to ensure accurate sealing and cutting positioning.

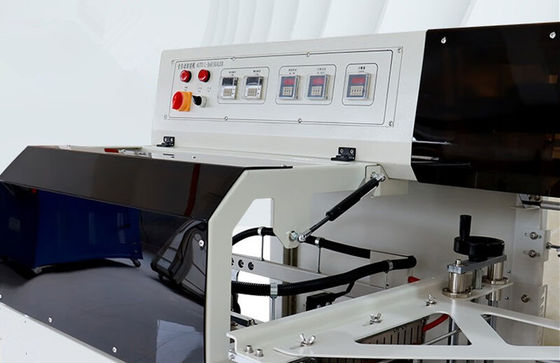

Simple Intelligent Control Panel
Rich functions and more intelligent. Adopts international brand electrical components such as Omron.
<< Heat Shrink Details >>
Air Jet Constant Temperature Heat Shrinkable
Adopts heat dissipation pipe heating and high-speed hot air circulation. It has good shrinkage effect. It is suitable for PVC,POF, PP and other shrinkable films, especially POF shrinkable films.
Control Panel
The operation is simple and easy to understand, with speed regulation function. Press the emergency stop button to stop the machine.
High Power Fan
With high-power motor and strong wind force, hot air circulation is formed in the furnace.
Adopt New Roller
The outer cover is made of silica gel, resistant to high temperature, high temperature, wear resistance, no scalding film and deformation, and can be used for a long time
Sample
The length of sealing and cutting is not limited, and can be packaged with large length objects
This machine is pneumatic device, need to connect additional air source can be used, air compressor needs to be purchased by the
customer.
customer.
Certifications
Packaging&Shipping
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world,such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
