The upper and lower carton is sealed with tape, which can be completed at one time, and the sealing effect is neat and beautiful.At the same time, the width and height can be adjusted independently according to the size of the carton by hand.
 |

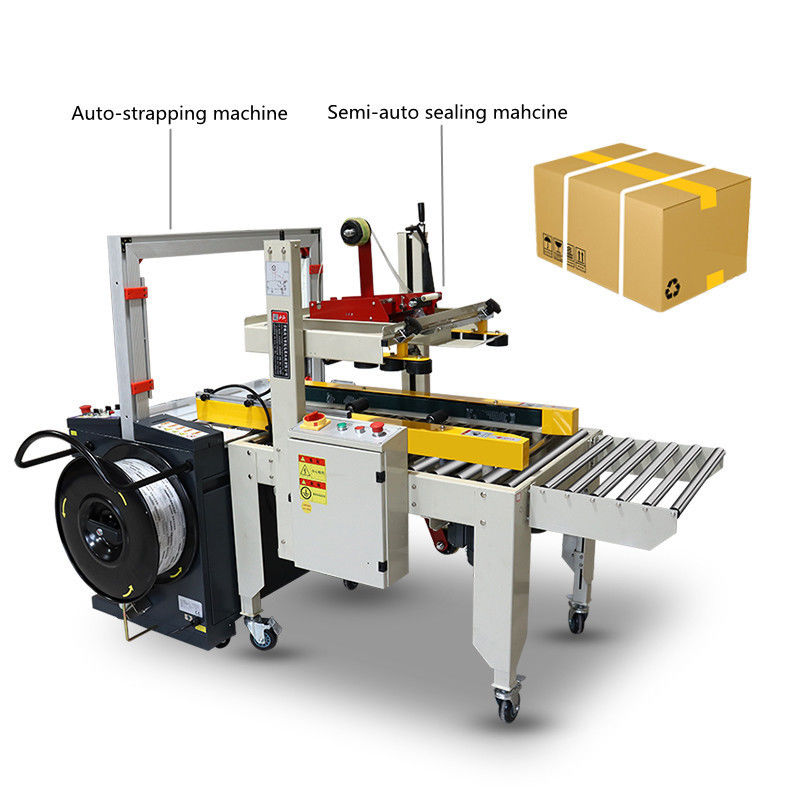

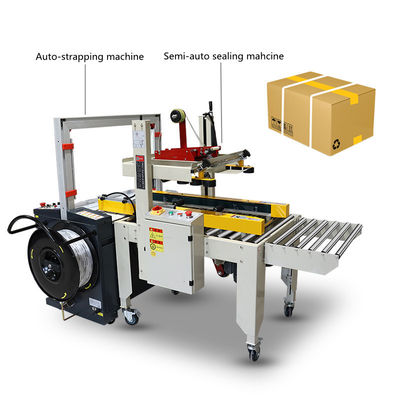

380V/220V Carton Corrugated Box Automatic Folding Sealing And Strapping Machines Line
Product Details:
| Place of Origin: | Anhui,China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $2,999.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, Case |
|---|---|---|---|
| Packaging Material: | Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380V/220V |
| Dimension(L*W*H): | 1400*600*1430MM | Weight: | 300 KG |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate, Long Service Life | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Gear, Other, Motor, Engine, Bearing, Pump |
| Advantage: | High Efficiency | Service: | 24h |
| Function: | Carton Sealing And Strapping | Suitable For: | Box/Case/Carton/Corrugated Box |
| Color: | Same As The Picture | Keyword: | Strapping Machine/Wrapping Machine/Sealing Machine |
| Product Name: | Wrapping Machine | Feature: | The Packaging Is Beautiful And Solid |
| MOQ: | 1pcs | Type: | Wrapping Machine |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Comp | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | Canada, United States | Showroom Location: | United Kingdom, United States |
| Condition: | New | Warranty Of Core Components: | 1 Year |
| Marketing Type: | Hot Product | Port: | Shanghai Ningbo Guangzhou |
Product Description
Products Description
.
PRODUCT PARAMETER

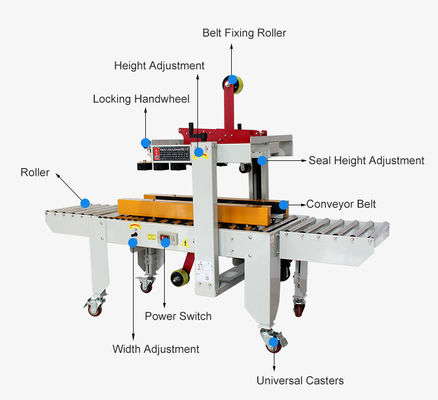

Carton Folding Cover Sealing Machine
Model | FXJ-4030 | FXJ-5050 | FXJ-6050 |
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Power | 180W | 240W | 180W |
Driving mode | Left-Right Driving | Left-Right Driving | Up-Down Driving |
Tape Specification | 36-48mm | 36-72mm | 36-72mm |

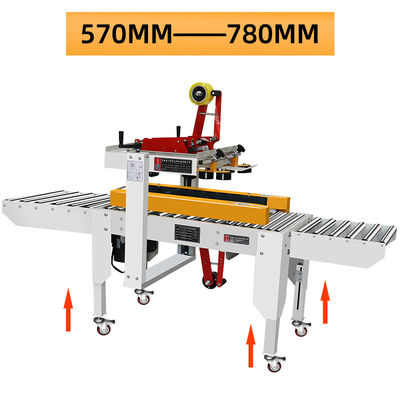

Table height | 570-780mm | 570-780mm | 570-780mm |
Weight Of machine | 106kg | 150kg | 145kg |
Carton size | L: At least 130mm W: 80-300mm H: 90-400mm | L: At least 150mm W: 80-500mm H: 90-500mm | L: At least 150mm W: 180-500mm H: 150-600mm |
Sealing head
The belt replacement is simple and convenient, the transmission design of sealing head is reasonable, and the sealing is more smooth
Imported motor
Low noise and stable conveying
High quality conveyor belt
Adopt imported conveyor belt, which is good quality, high efficiency and wear resistance, less noise

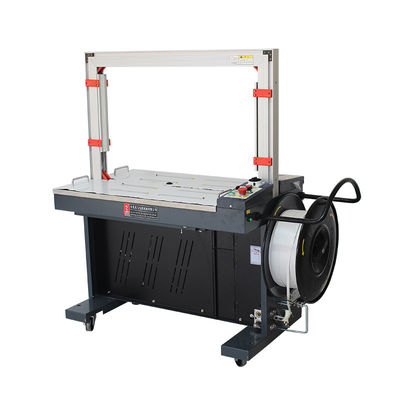

Automatic Carton Strapping Machine
Automatic strapping machine is the final procedure for packaging,the carton is bundled with packing belt to prevent scattering in the process of handling. It has many advantages, the carton is strapped with beautiful and firm, fast speed, and improves the packing efficiency of workers.
Model | MH-101A |
Voltage | 380V/50Hz |
Tension | 0-60kg |
Weight | 220kg |
Strapping Specifications | W:80-800mm H:100-600mm |
Size of Strap | W:9-15mm TH:0.6-1mm |
Machine size | 1410*625*1410mm |
Power | 1000W*3 |
Strapping speed | ≤2.5sec/cycle |
Applicable Packing Belt | PP |
Model | MH-101B |
Voltage | 380V/50Hz |
Tension | 0-60kg |
Weight | 220kg |
Strapping Specifications | W:80-800mm H:100-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1850*600*1520mm |
Power | 1000W*3 |
Strapping speed | ≤2.5sec/cycle |
Applicable Packing Belt | PP |
Model | MH-201A |
Voltage | 220V/50Hz |
Tension | 0-50kg |
Weight | 150KG |
Strapping Specifications | W:80-800mm H:60-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1410*600*1430mm |
Power | 400W*3 |
Strapping speed | ≤2.5sec/cycle |
Applicable Packing Belt | PP |
Model | MH-201B |
Voltage | 220V/50Hz |
Tension | 0-50kg |
Weight | 150KG |
Strapping Specifications | W:80-800mm H:60-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1910*620*1620mm |
Power | 400W*3 |
Strapping speed | ≤2.5sec/cycle |
Applicable Packing Belt | PP |
Model | MH-301A |
Voltage | 220V/50Hz |
Tension | ≥50kg |
Weight | 150KG |
Strapping Specifications | W:80-800mm H:60-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1410*600*1430mm |
Power | 500W*3 |
Strapping speed | ≤2sec/cycle |
Applicable Packing Belt | PP |
Model | MH-301B |
Voltage | 220V/50Hz |
Tension | ≥50kg |
Weight | 150KG |
Strapping Specifications | W:80-800mm H:60-600mm |
Size of Strap | W：9-15mm TH：0.6-1mm |
Machine size | 1910*620*1620mm |
Power | 500W*3 |
Strapping speed | ≤2sec/cycle |
Applicable Packing Belt | PP |

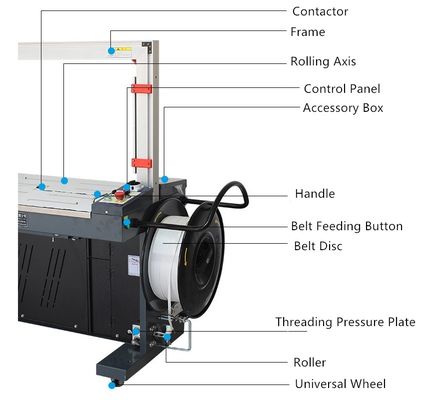

Control system
Using well-known chip control, the system is more stable and sensitive, greatly reducing the error rate
Intelligent control panel
Powerful function, simple operation
Three motor operation
The performance is more stable, the packaging is stable and durable
Certifications
Our Advantages
Our Advantages
*Best product and factory price
*On-time delivery and the shortest delivery time.
*OEM and customized service.
*User manuals will go with relative machines.
*User manuals will go with relative machines.
*1-Year warranty
If our product cannot function properly within 12 months,
we'll offer spare parts for free ; and you need to pay for the delivery.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Profile
COMPANY
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical servicesThe company's main products are: horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, pallet wrap machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc.
EXHIBITION
We are developing the new market and researching the new products for various kinds of market ceaseless on the basis of European and American market
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
Customer comments
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Want to Know more details about this product
