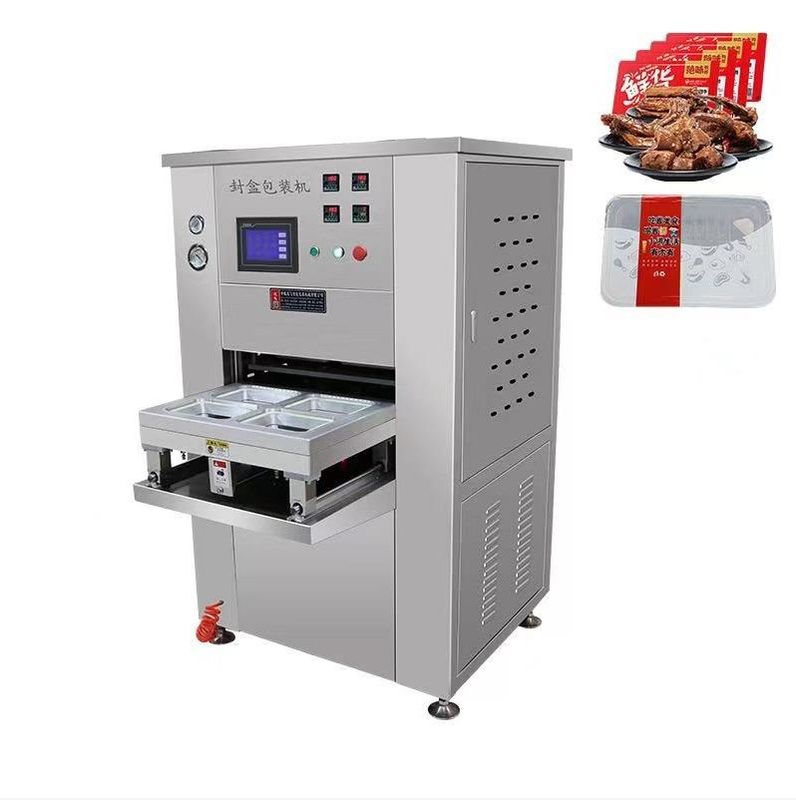

Packaging Type Bags Automatic Vacuum Sealer for Food Meal Packaging in Lunch Box
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
| Certification: | CE/ISO9001 |
Payment & Shipping Terms:
| Price: | $7,399.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Vacuum Packing Machine | Applicable Industries: | Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Other |
|---|---|---|---|
| Showroom Location: | Canada, United States, Morocco | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Application: | Food, Commodity, Chemical, Machinery & Hardware, Textiles | Packaging Type: | Stand-up Pouch, Bags, Film, Foil |
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V |
| Dimension(L*W*H): | 815*990*1670mm | Weight: | 460 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate, Long Service Life |
| After Warranty Service: | Video Technical Support/Online Support | Function: | Food Vacuum Preservation |
| Name: | Tray Vacuum Sealer Packing Machine | Suitable For: | Meat/fast Food/RICE Noodles/cheese/aquatic Products |
| Chamber Material: | Stainless Steel | Advantage: | Can Be Filled With A Variety Of Gas |
| Optional Functions: | Support Customization | Color: | Same As The Picture |
| Port: | Shanghai Ningbo Guangzhou | ||
Product Description
Products Description
What is a tray vacuum sealer machine ?
Tray vacuum packaging machine is a new packaging technology, is a new revolution of modern packaging technology, it is not only a means of quality assurance, but also improve the shelf grade of products can keep fresh, color, shape. Through the reasonable application of the filled gas (N, CO, 0.), it can solve the quality disadvantage of high temperature and high pressure, vacuum packaging, short shelf life of frozen food and high cost in the field of circulation. Vacuum packing machine has become the ideal packing machine for modern packaged food.
Modified atmosphere packaging
Meat is fresh and glossy
Ordinary packaging
Meat has lost moisture and no shine
Product Parameters
Deluxe version tray vacuum packing machine | ||
Pumping speed | 20m3/h, 40m3/h, 60m3/h | |
Voltage | 380/220V | |
Power | 5KW | |
Air pressure | 0.6-0.8Mpa | |
Packing speed | 3-5times/min | |
Weight | 460kg | |
Dimension | 815mm*990mm*1670mm | |
Gas filling | O2/N2/CO2 | |
Normal version tray vacuum packing machine | ||
Vacuum chamber size | According to customer sample box tailored | |
Voltage | 380V/50HZ | |
Power | 6KW | |
Work Capacity | Taking a 200 * 140mm box as an example （1）Only sealing production capacity of about 900 boxes/hour （2）Vacuum sealing production capacity is about 700 boxes/hour （3）The production capacity of vacuum inflatable sealing is about 700 boxes/hour | |
Dimension | 1000*1400*1550mm | |
Gas filling | O2/N2/CO2 | |
Suitable for sealing and preservation of various products
Can package fresh poultry and meat products, marinated food, fruits, mushrooms, pickles, pickled food, cake, soy products, fish, seafood, tea, traditional Chinese medicine, and other items.
Why can modified atmosphere packaging keep fresh?
According to different production environments, the following data is for reference only
Name | O2 | CO2 | N2 | Fresh-keeping time (days) |
Fresh Meat | 80% | 20% | 0% | 12-15 |
Cooked Meat | 0% | 30% | 70% | 7-9 |
Fruits Vegetables | 80% | 20% | 0% | 7-9 |
Fast Food | 0% | 0% | 100% | 5 |
Petals (Lily) | 7% | 8% | 85% | 7 |
Mold can be customized according to customer box size
Product Details

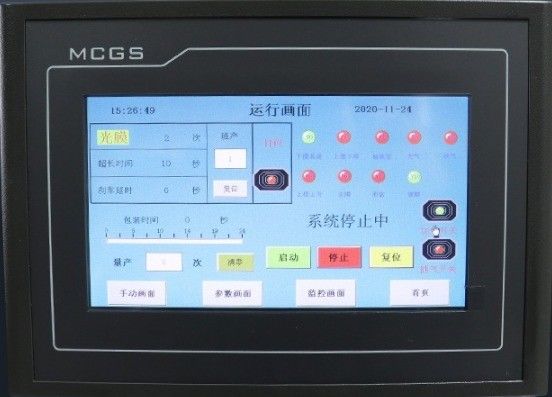

Intelligent PLC
Intelligent PLC control, programmable man-machine interface, simple operation and high degree of automation

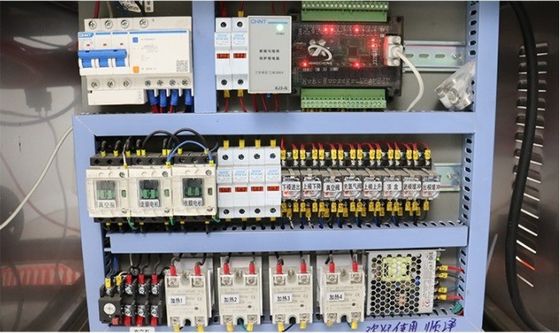

Independent electric control box
Independent electric control box, large brand electrical appliances, packaging machine, safe operation and trouble free
Industrial grade vacuum pump
The industrial vacuum pump is adopted, with strong power and more thorough evacuation. During inflation, the gas exchange is completed in a state close to vacuum, with high gas replacement rate and almost no air residue

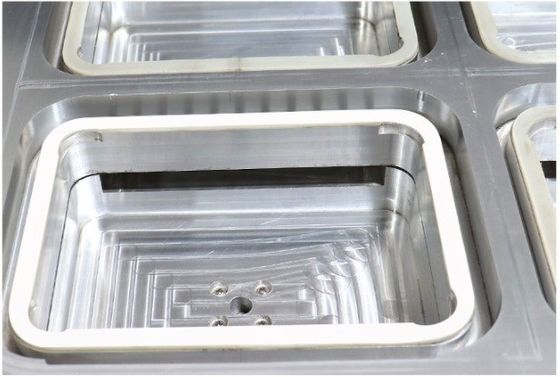

Food grade aluminium mould
Support mold customization. The mold is made of food grade aluminum, with good sealing, anti-corrosion and waterproof, so as to ensure that it can operate freely in humid and harsh environment
Good materials good workmanship
Adopt 304 stainless steel, thickened steel plate, corrosion resistance, in line with health and safety standards.
High Pressure Vacuum Gauge
Real-time observation of vacuum degree
Product Recommendation
Double chamber vacuum machine
Single chamber vacuum machine
External vacuum machine
Automatic clamshell vacuum machine
Continuous rolling vacuum machine
Desktop vacuum machine
Certifications
Company Profile
COMPANY
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical servicesThe company's main products are: horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, pallet wrap machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc.
EXHIBITION
We are developing the new market and researching the new products for various kinds of market ceaseless on the basis of European and American market
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
