The machine is suitable for a variety of packaging styles, optional packaging, widely used in food, medicine, chemical, daily necessities, hardware and other industries.We can customize the machine model according to your products.
 |
40-120pcs/min Speed Horizontal Shisha Tabak Tobacco Packing Machine with 220V Voltage
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $12,000.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Production Capacity: | 25bag/min | Function: | Wrapping, Labeling, Sealing |
|---|---|---|---|
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Pouch, Capsule, Case |
| Packaging Material: | Plastic, Paper | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Core Components: | Motor, Pressure Vessel, PLC, Other, Gear, Bearing, Engine, Gearbox | After-sales Service Provided: | Free Spare Parts, Video Technical Support, Online Support |
| Product Name: | Pillow Packing Machine | Packing Speed: | 40-120pcs/min |
| Max Film Width: | 80-220mm | Screen: | Touch Screen |
| Packaging Material: | OPP,CPP,PT/TE,KOP/CPP & So On | Weight: | 550kg |
| Feature: | With Printing | Control System: | Servo Control System |
| Film Thickness: | 30-70mm | Model: | 100/300/400/500/600 |
| Type: | Multi-Function Packaging Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Port: | Shanghai Ningbo Guangzhou | ||
Product Description
Product Description

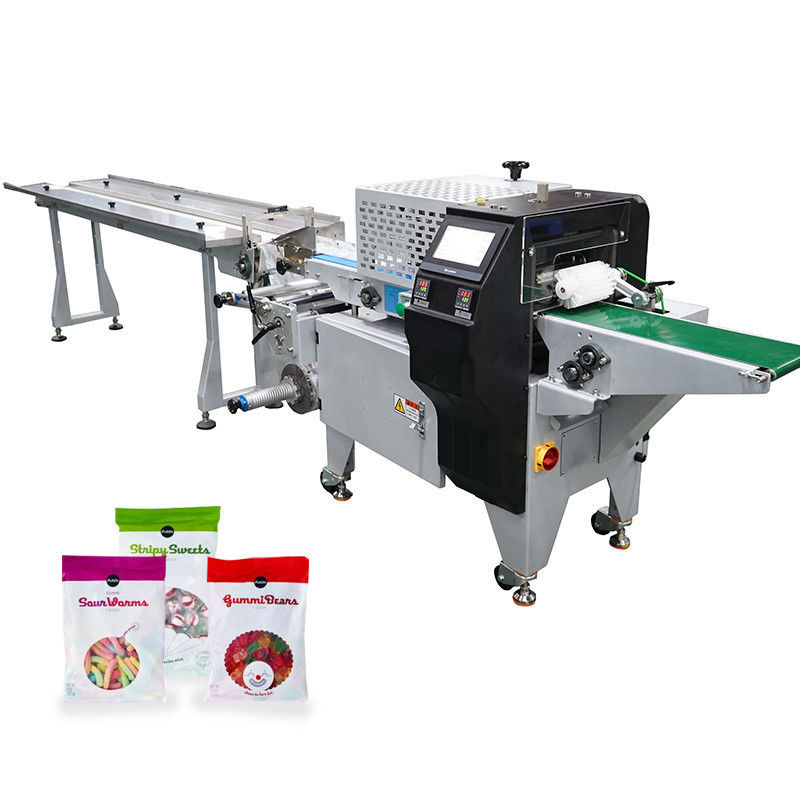

Horizontal pillow packing machine with high packing efficiency and servo control system to achieve infinitely variable speed.Do not worry and feel free to text us. Yifei will give you the best quality plan.With the most real and effective way to provide you with comfortable service. High quality and attentive serviceis the Yifei corporate culture.
Featurs
1.The pillow packing machine is widely used in food, medicine, daily necessities, chemical and other industries.2.This series of packaging machine is a stable performance, widely used models. PLC control servo control system, making the equipment failure rate is low, easy to adjust.
3.More kinds of products can be packaged in one machine. Packing speed up to 100 bags
a minute, get rid of the traditional machine low efficiency shortcomings. More efficient work and longer machine life.
a minute, get rid of the traditional machine low efficiency shortcomings. More efficient work and longer machine life.
4.According to the film width, we have different models to choose from and support customization.
Just tell me： the film width and packaging speed requirements.
Products parameter
Model | YF-100 |
Packaging speed | 20-200pcs/min |
Bag size(L*W*H) | 70-260*30-90*3-35 |
Packaging film width | 80-220mm |
Packaging material | OPP、CPP、PT/TE、KOP/CPP & so on |
Machine size | 4100*1000*1500 |
Heating power | 3.5KW |
Motor power | 0.55+0.75KW |
Total power | 4.8kw |
Machine weigth | 550kg |
Model | YF-300 | YF-320 | YF-350 | ||
Packaging speed | 30-200pcs/min | ||||
Bag size (L*W*H) | 75-240*30-140*3-50mm | 100-320*30-160*5-70mm | 130-400*50-160*3-70mm | ||
Packaging Film Width | 60-300mm | 80-320mm | 80-350mm | ||
Packaging material | OPP、CPP、PT/TE、KOP/CPP & so on | ||||
Machine size (L*W*H) | 4000*950*1600mm | 4000*950*1600 | 4000*950*1600 | ||
Heating power | 3.5KW | ||||
Motor power | 0.55*0.75KW | ||||
Total power | 4.8KW | ||||
Weigth | 600kg | 650kg | 630kg | ||
Model | YF-400 | YF-420 | YF-450 | ||
Packaging speed | 40-120pcs/min | ||||
Bag size (L*W*H) | 130-350*30-160*5-80mm | 130-350*30-160*5-80mm | 160-400*30-180*5-80mm | ||
Packaging Film width | 90-400mm | 90-420mm | 90-450mm | ||
Packaging Film thickness | 30-70mm | ||||
Film rolling size | Outside diameter≤300mm ,inside diameter≤75mm | ||||
Packaging material | OPP、CPP、PT/TE、KOP/CPP & so on | ||||
Machine size (L*W*H) | 4100*950*1700mm | 5000*950*1700mm | |||
Power | 200V/50HZ | ||||
Voltage | 5.5KW | ||||
Weigth | 650kg | 680kg | 700kg | ||
Model | YF-500 (Center distance114) | YF-500 (Center distance150) | YF-600 | ||
Packaging speed | 25-150pcs/min | 40-120pcs/min | |||
Bag size (L*W*H) | 100-400*240*55mm | 100-750*240*80mm | 150-750*240*30-80mm | ||
Max Film width | 500mm | 90-420mm | 600mm | ||
Packaging material | OPP、CPP、PT/TE、KOP/CPP & so on | ||||
Machine size (L*W*H) | 4200*1005*1470mm | 4000*950*1600 | 4200*800*1600mm | ||
Voltage | 6KW | 6KW | |||
Weigth | 850kg | 680kg | 450kg | ||
Electrical configuration
We can customize your special electrical configuration according to your needs
Two film packaging methods are available
Under the film packaging
more sensitive, photoelectric sensing items stop packaging, no empty bag more intelligent and more assured.
Up film packaging
Achieve 100 bags per minute productivity, solve the problem of output. Stainless steel transfer panel, more durable, non-corrosive, suitable for viscous packaging.
More Details

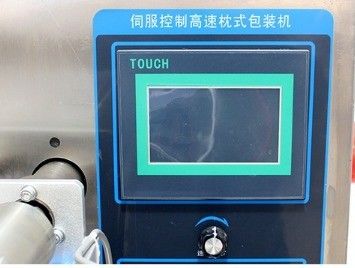

Touch intelligent control screen

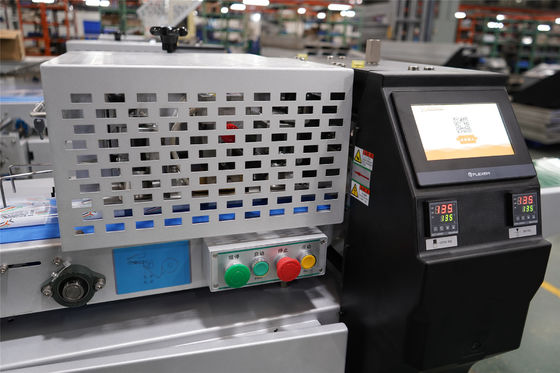

control the packaging process, easy to operate, with digital display independent double temperature control tabulation, real-time display of packaging film temperature.
Linkage film axis adopts multi-linkage film axis to coordinate the film pulling link, adapt to more film material, film rolling is more smooth.

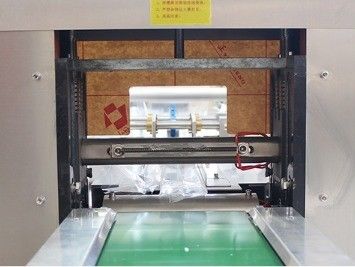

Bag seal cutting area before and after the packaging seal. Precise cutting temperature, avoid curling hole phenomenon, improve efficiency, increase production
The film pressingdevice makes the packaging size of the product accurate, not easy to curl the edge of the leak phenomenon, to achieve the exquisite packaging effect.
Our workshop
Exhibition
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd.
1、Our company integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery.
2、The machine is affixed with CE certification, meets export standards and is exported to the world.
3、 It has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO.....
4、24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D
Certifications
Packing & Delivery
Our Advantages
*Best product and factory price
*On-time delivery and the shortest delivery time.
*OEM and customized service.
*User manuals will go with relative machines.
*User manuals will go with relative machines.
*1-Year warranty If our product cannot function properly within 12 months,
we'll offer spare parts for free ; and you need to pay for the delivery.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us
without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us
without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
FAQ
Q: How to find a Packing machine suitable for my product? A:Tell me about your product details. 1. What kind of product you have.
2. The size of your product( the length, width, and height).
A:We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba
