The panel is simple to understand and easy to operate and it is more intelligent
 |
DZ600 Automatic Double Chamber Vacuum Sealer for Fish Meat Sausage Beef Shrimp Packaging
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
| Certification: | CE/ISO9001 |
Payment & Shipping Terms:
| Price: | $1,199.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Vacuum Packing Machine | Applicable Industries: | Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | Canada, United States, Morocco | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Application: | Food, Commodity, Chemical, Machinery & Hardware, Textiles | Packaging Type: | Stand-up Pouch, Bags, Film, Foil |
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V |
| Dimension(L*W*H): | 141*59*97cm | Weight: | 250 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate, Long Service Life |
| After Warranty Service: | Video Technical Support/Online Support | Sealing Length: | 400 Mm/500 Mm/600 Mm |
| Sealing Width: | 10mm | Function: | Food Vacuum Preservation |
| Number Of Sealing Strips: | 2pcs/chamber | Name: | Double Chamber Vacuum Packing Machine |
| Suitable For: | Meat/rice/vegetables/fruits/seafood | Chamber Material: | Stainless Steel |
| Port: | Shanghai Ningbo Guangzhou | ||
Product Description
Products Description

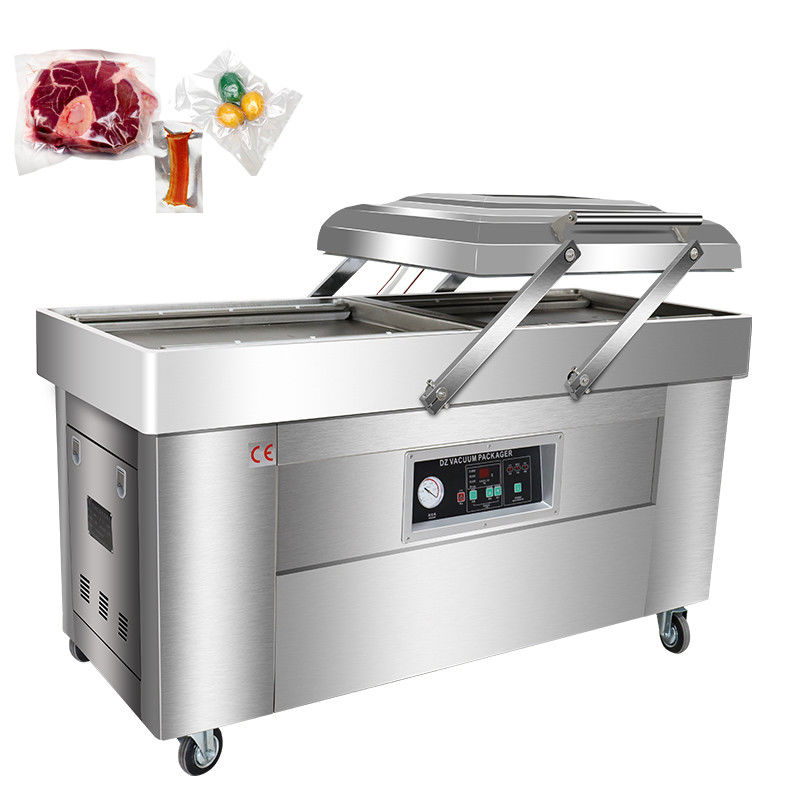

Double Chamber Vacuum Packing Machine
Strong suction vacuum preservation manufacturer direct quality assurance
Two-room Operation Efficiency Doubling
One studio at work while the other studio can be prepared to pack in advance
Our Advantages
*Vacuum preservation *Microcomputer panel *Strong suction force *Touch buttons *304 vacuum chamber *Multiple packages placed together *Wet and dry dual use *Lifetime warranty
Product Model
Dual chamber vacuum machine parameters | ||||||
Model No | DZ-400 | DZ-500 | DZ-600 | |||
Chamber Size （L*W*H) | 400*400*120mm | 500*430*120mm | 600*430*120mm | |||
Seal Size | 400*10mm*2pcs seal bars | 500*10mm*2pcs seal bars | 600*10mm*2pcs seal bars | |||
Machine Size （L*W*H) | 1070*540*970mm | 1270*600*1020mm | 1450*600*1030mm | |||
Power | 0.9KW | 1.5KW | 1.5KW | |||
Voltage | 220V/50HZ (Support customize) | 380V/50HZ (Support customize) | 380V/50HZ (Support customize) | |||
Work Efficiency | 1~4times/min | 1~4times/min | 1~4times/min | |||
Pumping Speed | 20m3/h | 40m3/h | 40m3/h | |||
Pump Qty | 1 | 2 | 2 | |||
Weight | 170KG | 200KG | 220KG | |||
Product component
Product Details

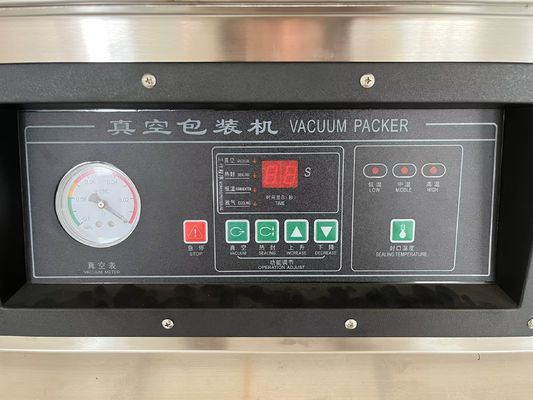

Microcomputer control
Heating fast bakelite heat seal
The hot seal is made of bake lite,heat quickly and evenly

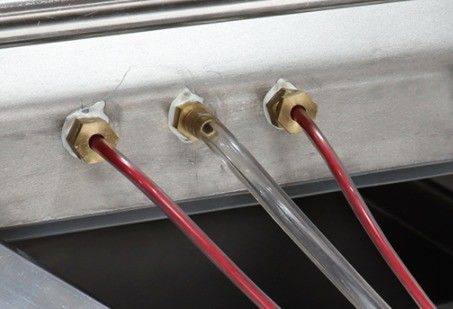

Copper air inlet
Good sealing performance and long service life
Safety switch
High quality switch,touch sensitive
Double swing arm design
The arm is delicately designed, with balance stress, conforming to human engineering,flexible in operation.
Mechanical control is not accurate difficult operation prone to failure
Intelligent operation panel simple and easy to learn good operation

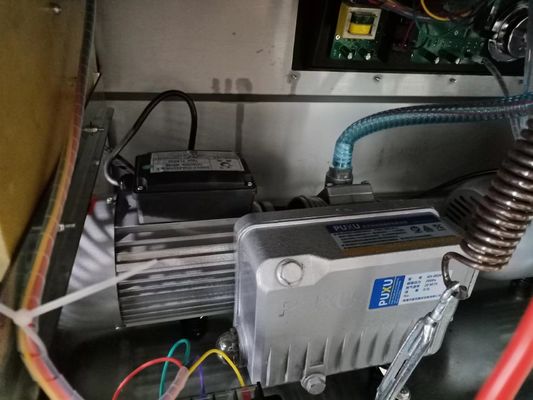

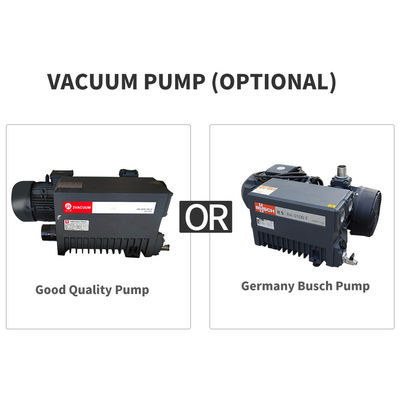

High quality industrial pumps are full of power
Sample
Certifications
Company Profile
COMPANY
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical servicesThe company's main products are: horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, pallet wrap machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc.
EXHIBITION
We are developing the new market and researching the new products for various kinds of market ceaseless on the basis of European and American market
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
Customer comments
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Want to Know more details about this product
