304 Stainless Steel Double Chamber Vacuum Packer for Fish Meat Vacuum Packing Machine
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Anhui YiFei |
Payment & Shipping Terms:
| Price: | $2,500.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 3000 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Vacuum Packing Machine, Vacuum Packing Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Case |
| Packaging Material: | Plastic, Paper, Metal, Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V |
| Dimension(L*W*H): | 1405*725*920mm | Weight: | 250 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Usage: | Solid, Cartons, Bags, Film, Case, Foil, Pouch | Advantage: | Easy Operate |
| Material: | 304 Stainless Steel | Packing Machine: | Wooden Box |
| Item: | Double Chambe Vacuum Packaging Machinery | Sealing Length: | 400-600mm |
| Chamber Type: | Double Chambers | Seal Width: | 10mm |
| After Warranty Service: | 1 Year | ||
Product Description
Product Description

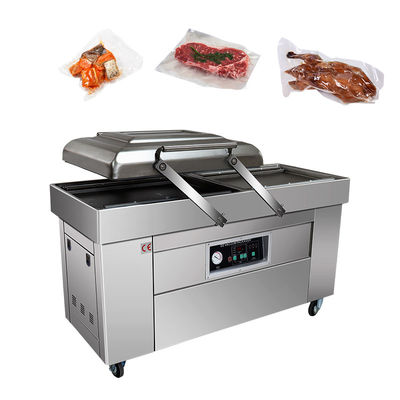

Automatic double chamber vacuum packaging machine
Main features :
1. High efficient packing vacuum machine with two working table.
2.Material of Main Structure: 304 stainless steel chamber material.
3.Electrical requirement and plug could be customize according to customer requirement.

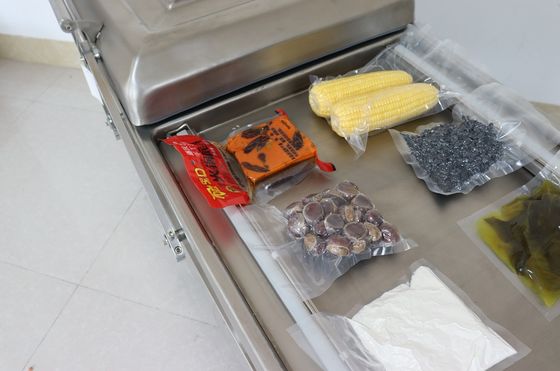

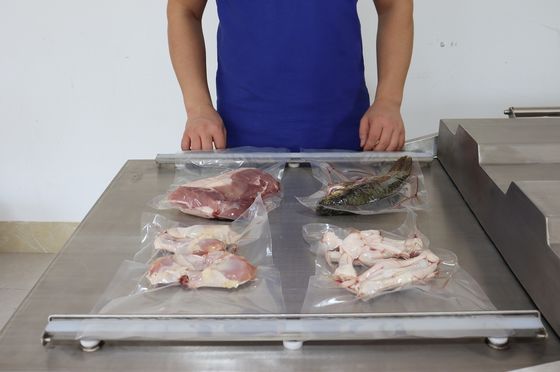

4.Vacuumed products can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for longer time.
5.Can finish the whole programs of vacuum extraction, gas flushing (optional) , sealing, exhaust automatically.

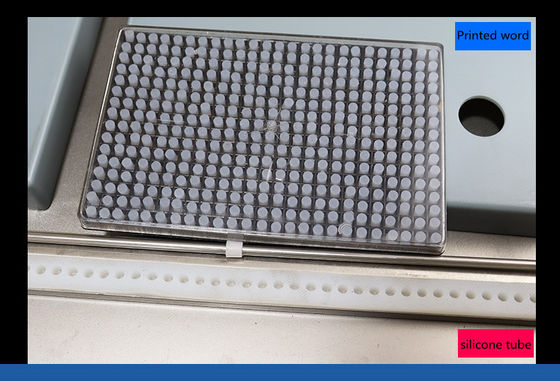

6.The vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work.

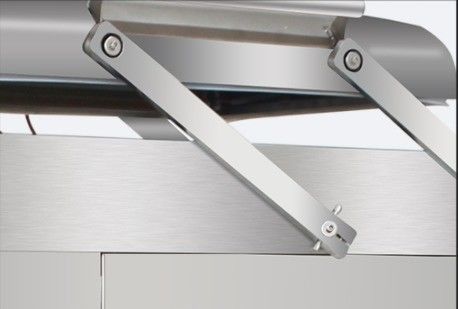

7.We can provide OEM & ODM for different company with deep vacuum chamber, automatic swing lid, control panel, vacuum pump, gas filling, full 304SUS etc.
/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
TECHNICAL PARAMETER
Model No. | DZ-600 |
Chamber Size | 600*430*120mm |
Seal Size | 60*10mm*2pcs seal bars |
Machine Size | 1450*600*1030mm |
Power | 1.5KW |
Voltage | 220V/380V 50-60hz(support customize) |
Work Efficiency | 1~4times/min |
Pumping Speed | 40m3/h |
Pump Qty. | 2 |
Weight | 210KG |
Model No. | DZ-500 |
Chamber Size | 500*430*120mm |
Seal Size | 500*10mm*2pcs seal bars |
Machine Size | 1270*600*1020mm |
Power | 1.5KW |
Voltage | 220V/380V 50-60hz(support customize) |
Work Efficiency | 1~4times/min |
Pumping Speed | 40m3/h |
Pump Qty. | 2 |
Weight | 170KG |
Model No. | DZ-400 |
Chamber Size | 400*400*120mm |
Seal Size | 400*10mm*2pcs seal bars |
Machine Size | 1070*540*970mm |
Power | 0.9KW |
Voltage | 220V/380V 50-60hz(support customize) |
Work Efficiency | 1~4times/min |
Pumping Speed | 20m3/h |
Pump Qty. | 1 |
Weight | 120KG |
Product Details
Pure copper transformer has long stable working life
Famous brand electrical equipment configuration with beautiful neat wiring

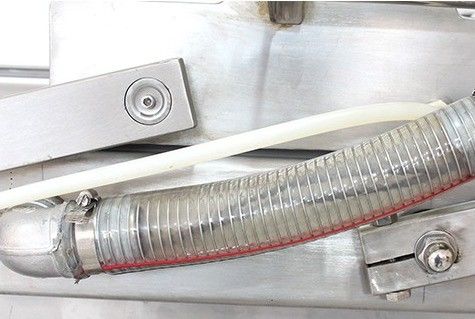

Pure copper throttle good air tightness more durable
A variety of well-known brand vacuum pumps are optional
Intelligent control panel easy to operate
Certifications
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd.
YIFEI integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
Warmly welcome to visit YIFEI factory.
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
