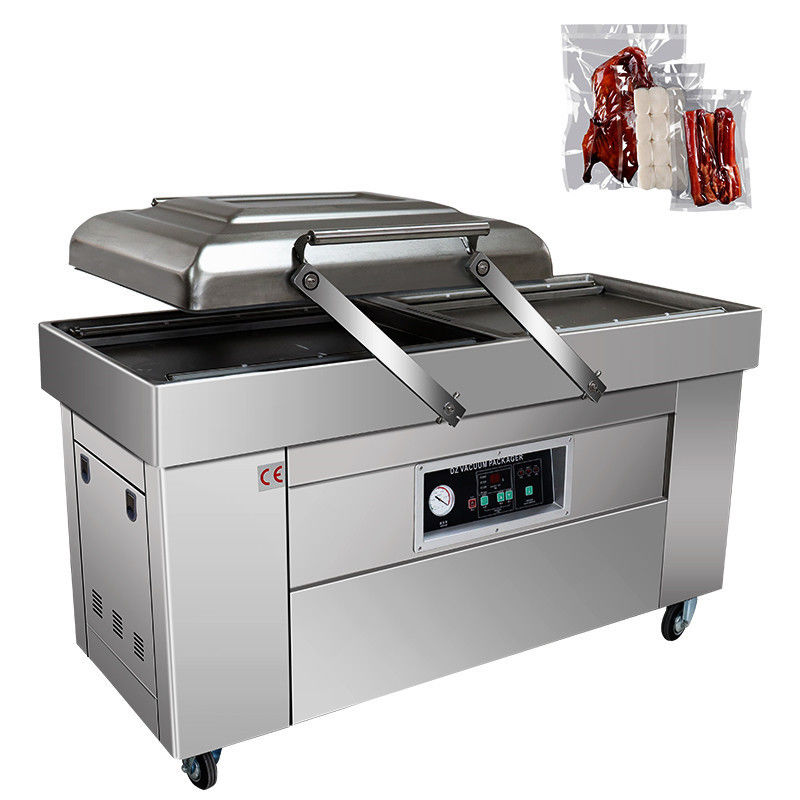

DZ-600 Double Chamber Electric Vacuum Sealer for 220V Industrial Food Bag Packaging
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
Payment & Shipping Terms:
| Price: | $800.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Vacuum Packing Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case |
| Packaging Material: | Plastic | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric | Voltage: | 220V/380V, 220V/380V 50HZ/60HZ |
| Weight: | 250 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Product Name: | Double Chamber Vacuum Packing Machine |
| Usage: | Cartons, Bags, Film, Case, Bags, Film, Foil, Pouch | Function: | Vacuum Sealer |
| Chamber Material: | Stainless Steel | Model: | DZ-400/DZ-500/DZ-600 |
| Item: | Double Chamber Vacuum Packaging Machinery | Number Of Sealing Strips: | 2pcs/chamber |
| Sealing Length: | 400 Mm/500 Mm/600 Mm | Seal Width: | 10mm |
| Marketing Type: | New Product 2020 | Port: | Shanghai Ningbo Guangzhou |
Product Description
Product Description
Food industrial automatic double chamber vacuum bag packing packaging sealing sealer machine commerical use big popular pumps with strong power
Product structure
Main Features:
1. Double chamber, high efficient packing vacuum machine.
2.Material of Main Structure: 304 stainless steel body.
3.Electrical requirement and plug could be custom according to customer requirement.
4.The products can be prevented from oxidation, going mould,insects or getting damp, thus can be kept fresh for longer time.
5.Can finish the whole programs of vacuum extraction, gas flushing (optional) , sealing, exhaust automatically.
6.The vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work.
7.We can provide OEM & ODM for different company with deep vacuum chamber, automatic swing lid, control panel, vacuum pump, gas filling, full 304SS etc.
Product parameter
Flate-type
Model No. | DZ400/2S-P | DZ500/2S-P | DZ600/2S-P |
Chamber Size | 40*37*7cm | 50*43*7cm | 60*43*9cm |
Seal Size | 40*1cm | 50*1cm | 60*1cm |
Machine Size | 107*51*97cm | 120*57*97cm | 141*59*97cm |
Power | 0.9KW | 1.5KW | 1.5KW |
Voltage | 220V/50HZ | 380V/50HZ | 380V/50HZ |
Work Efficiency | 1~4times/min | 1~4times/min | 1~4times/min |
Pumping Speed | 20m3/h | 40m3/h | 40m3/h |
Pump Qty. | 1 | 2 | 2 |
Weight | 150KG | 200KG | 255KG |
Model No. | 400/2S-X | 500/2S-X | 600/2S-X |
Chamber Size | 40*40*12cm | 50*43*12cm | 60*43*12cm |
Seal Size | 40*1cm | 50*1cm | 60*1cm |
Machine Size | 107*54*97cm | 127*60*102cm | 145*60*103cm |
Power | 0.9KW | 1.5KW | 1.5KW |
Voltage | 220V/50HZ | 380V/50HZ | 380V/50HZ |
Work Efficiency | 1~4times/min | 1~4times/min | 1~4times/min |
Pumping Speed | 20m3/h | 40m3/h | 40m3/h |
Pump Qty. | 1 | 2 | 2 |
Weight | 120KG | 170KG | 210KG |
Don't need special vacuum bag any more
Vacuum machine does not limit bags, all kinds of vacuum bags can be used
Product Details
Industrial pump
Large industrial pump, stable operation,
full power, low noise
CE certifications
The machine with CE stickers.

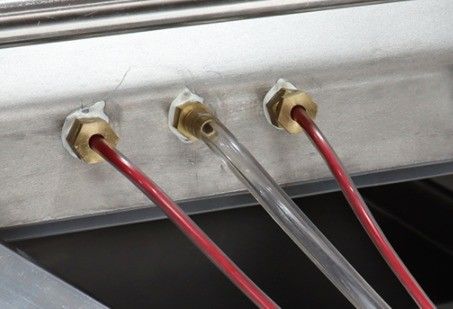

Copper three-way solar term mouth
good air tightness, long and durable.

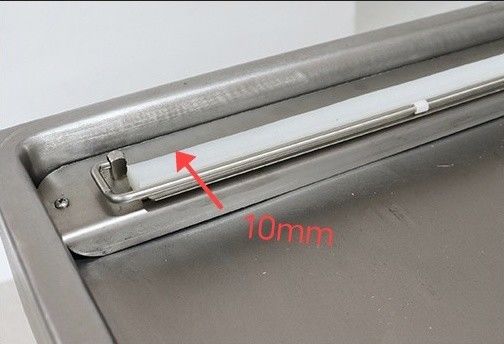

Sealing strip & printing code
By loading the printing code into the small hole on the back of the silica gel strip, the date can be printed.The vacuum sealing printing can be completed at one time, which is convenient and quick, and greatly improves the efficiency.
Emergency stop switch
humanized design, to prevent emergency stop machine operation.
Double swing arm
More easily switch between two vacuum chambers.
Intelligent control panel
Easy operate and adjust.(The flat type is Knob control panel)
Two kinds of table surfaces
Including auxiliary pad and flat groove are presented according to your needs.
Sample
Related Product
Carton sealing & strapping machine
Carton erector
Pillow Packing Machine
Carton sealer
Single chamber vacuum sealer
Film Cutter & heat shrink machine
Certifications
Exhibition
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd.
1、Our company integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery.
2、The machine is affixed with CE certification, meets export standards and is exported to the world.
3、 It has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO.....
4、24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D
Packing & Delivery
Our Advantages
*Best product and factory price
*On-time delivery and the shortest delivery time.
*OEM and customized service.
*User manuals will go with relative machines.
*User manuals will go with relative machines.
*1-Year warranty If our product cannot function properly within 12 months,
we'll offer spare parts for free ; and you need to pay for the delivery.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us
without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us
without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
FAQ
Q: How to find a Packing machine suitable for my product? A:Tell me about your product details. 1. What kind of product you have.
2. The size of your product( the length, width, and height).
A:We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Want to Know more details about this product
