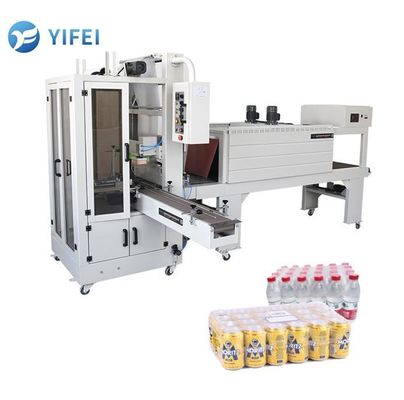

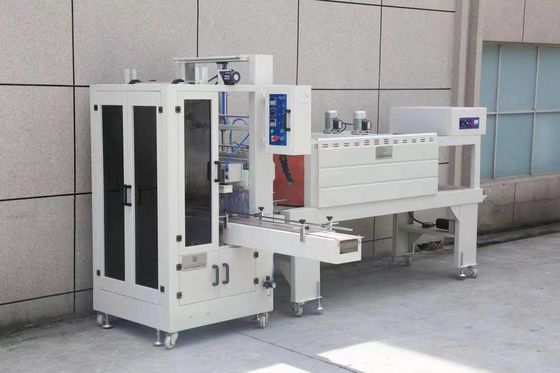

Conveyor Type Tunnel Shrink Wrap Machine for Automatic Water Bottle Film at 220V
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $8,000.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, APPAREL, Beverage, Chemical, Commodity, Food, Machinery | Packaging Type: | Bottles, Bags, Film, Pouch, Bags, Film, Pouch |
|---|---|---|---|
| Packaging Material: | Plastic | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric | Voltage: | 220V, 380V/50Hz |
| Weight: | 210 KG, 300kg | After-sales Service Provided: | Online Support, Video Technical Support |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Core Components: | PLC, Pressure Vessel, Gear, Other, Motor, Engine, Bearing, Gearbox, Pump | Converyor Loading: | 25kg Max |
| Converyor Speed: | 0-10m/min | Sealing Cutting Size: | 500*380mm |
| Tunnel/Oven Size: | Can Be Customzied | Conveyor Type: | Roller Conveyor |
| Applicable Film: | PE | Type: | Wrapping Machine |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | Showroom Location: | None |
| Condition: | New | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Port: | Shanghai Ningbo Guangzhou |
Product Description
Products Description
PRODUCT PARAMETER
Name | Automatic Film blowing Machine | Model | TFZ7540 |
Voltage | 220V/50Hz/60Hz | Power | 1.5kw |
Heating plate power | 1.3kw（two plates） | Packing speed | 10m/min |
Maximum sealing size | 750mm | Height of Conveyor belt | 800+50mm(adjusting) |
Air pressure | 5-7kgf/cm2 | Weight of machine | 210kg |
Max packing size | W500*H380mm | Dimension | 1100*1500*1900mm |
Name | Heat Shrink Tunnel | Power | 27kw |
Max packing size | 750*400mm | Load | 80kg |
Conveyor speed | 0-10m/min | Weight | 300kg |
Voltage | 380V/AC 50Hz/60Hz | Dimension | 3115*950*1450mm |
We can customize for you base on your product
Product details
Features:
1.Imported advanced technology, higher& more stable performance2.PLC control, OMRON brand
3.Imported electronic components, stable performance
4.The sealing and cutting parts are provided with organic protective cover to prevent personnel from contacting the sealing and cutting parts and protect operators.
5.Feeding conveyor belt can adopt feed on the left or right side optional depending on your requirements
6.Cnveyor speed, shrinkage temperature adjustable
7.Roller conveyor, working table height adjustable
8.Automatic machine, higher production capacity
9.Tunnel size can be customzied
10.Variable frequency speed control
11.This machine can be customzied according to your requirement
6.Cnveyor speed, shrinkage temperature adjustable
7.Roller conveyor, working table height adjustable
8.Automatic machine, higher production capacity
9.Tunnel size can be customzied
10.Variable frequency speed control
11.This machine can be customzied according to your requirement
APPLICATION
It can pack large articles, especially suitable for packing beverage, beer, mineral water, oil, etc., which improves efficiencyand has good packing effect
Certifications
Why Choose Us
1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
In addition,if you have any idea or special requirement for plastic sealer machine details, we will do our best to solve for you. We believe our sincerity and specialty, could bring good user experience to customers.
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
In addition,if you have any idea or special requirement for plastic sealer machine details, we will do our best to solve for you. We believe our sincerity and specialty, could bring good user experience to customers.
High Quality Customer Feedback
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Our Advantages
Our Advantages
*Best product and factory price
*On-time delivery and the shortest delivery time.
*OEM and customized service.
*User manuals will go with relative machines.
*User manuals will go with relative machines.
*1-Year warranty
If our product cannot function properly within 12 months,
we'll offer spare parts for free ; and you need to pay for the delivery.
Product packaging
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical services, relying on technology to provide customers with packaging equipment solutions.
The company's main products are: granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, packing machine, palletizing machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc. packaging machinery and supporting production lines.
Our products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries. After several years of development and growth, the company has established a sound sales network and service network, products sold well throughout the country, and exported to Europe, America, Southeast Asia and other countries all over the world
Over the years, our company has been praised and appreciated by the vast number of new and old customers in line with the purpose of "high quality and perfect service". In order to thank the vast number of new and old customers for their great love for Yifei packaging machinery, we solemnly promise that we are willing to repay our customers with the management concept of high quality and high service.
Warmly welcome You to Y-F Packaging Machinery for inspection and business negotiation.
