3)Chain conveying more stable contraction effect is good. Large weight bearing and long life.

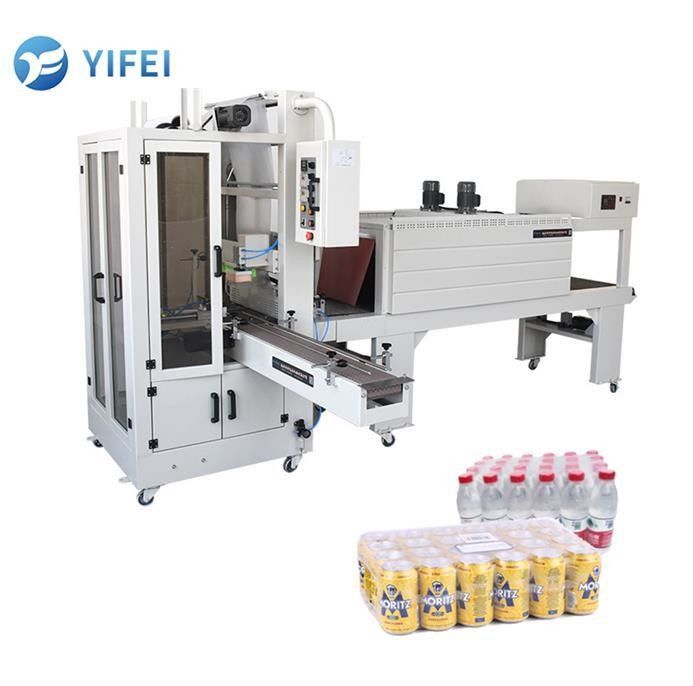

High Speed Heating Tunnel Wrapping Packing Machine for Automatic PE Film Bottle Water
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | Y-F |
Certification: | CE |
Payment & Shipping Terms:
Price: | $3,500.00/sets 1-4 sets |
---|---|
Packaging Details: | WOODEN |
Supply Ability: | 1000 Set/Sets per Month |
Detail Information |
|||
Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case |
---|---|---|---|
Packaging Material: | Plastic, Paper, Metal, Glass, Wood | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 220V/380V, 380V / 220V (Customized) |
Dimension(L*W*H): | 3115*950*1450mm | Weight: | 300 KG, 300kg |
After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Warranty: | 1 Year |
Key Selling Points: | Automatic | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Gear, Other, Motor, Engine, Bearing, Gearbox, Pump |
Product Name: | Automatic Film Shrink Wrapping Machinery | Keyword: | Plastic Film Package Shrink Tunnel Wrapping |
Function: | Bottles Film Shrink Wrap | Packing Material: | PE |
Max Shrink Size: | 550*400mm | Max Sealing Size: | 500*380mm |
Sealing Speed: | 10pcs/min | Transfer Speed: | 0-10m/min |
Type: | Wrapping Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
Showroom Location: | None | Condition: | New |
Warranty Of Core Components: | 1 Year | Marketing Type: | New Product 2021 |
Port: | Shanghai Ningbo Guangzhou |
Product Description
Product Description
Automatic bottles PE film shrink wrap machinePE film heat tunnel shrink machine
1>Automatic bottle sorting
2>Suitable for all kinds of bottle packaging
3>PE packaging effect is more beautiful
4>Labor cost saving


Full automatic bottles PE film shirnk wrap machine | ||
Product Type | TF-6540 PE film wrap machine | |
Max package dimensions(L*W*H) | 550*330*380mm | |
Max film width | 650mm | |
Covenyor table height | 800+50mm(adjustable) | |
Electric heating plate power | 1.3KW | |
Total power | 1.5KW | |
Voltage | 220V/50HZ/60HZ | |
Packing speed | 12 pcs/min | |
Weigth | 400kg | |
Machine dimensions(L*W*H) | 1550*1400*1920mm |

PE heat tunnel shrink machine | ||
Product Type | BS-5540M PE heat shrinker | |
Max package size | 550*400mm | |
Machine size | 2500*750*1300mm | |
Shrinkage transfer speed | 0-10m/min | |
Voltage | 380V(Adjustable) | |
Power | 16.8KW | |
Load | 40kg | |
Machine Weight | 210kg |
Semi-auto bottles PE film shrink wrap machinePE film heat tunnel shrink machine
1>Put the bottle manually with competitive price
2>Suitable for all kinds of bottle packaging
3>PE packaging effect is more beautiful
4>PE film shrink wrap machine match heat tunnel shrink machine ,labor cost saving
3>PE packaging effect is more beautiful
4>PE film shrink wrap machine match heat tunnel shrink machine ,labor cost saving


Semi-automatic bottles PE film shrink wrap machine | ||
Product Type | TFB-650 PE film wrap machine | |
Max package dimensions(L*W*H) | 340*450*360mm | |
Max film width | 650mm | |
Covenyor table height | 750+50mm(adjustable) | |
Power | 1.4KW | |
Voltage | 220V/50HZ-60HZ | |
Packing speed | 10 pcs/min | |
Weigth | 180kg | |
Machine dimensions(L*W*H) | 950*920*1760mm |
Sample

Product Details

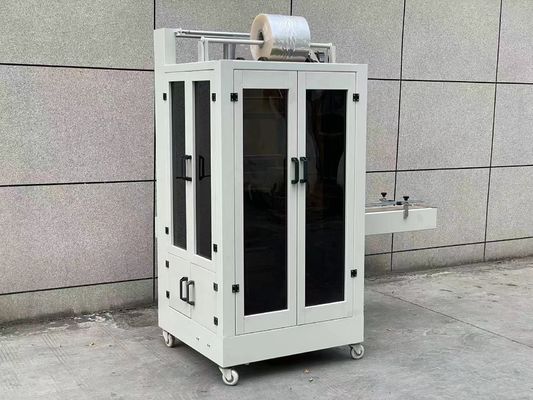

<< Details of Automatic film shrink wrap machine >>


Imported coating alloy cutter
The cutter adopts American DuPont Teflon coating, anti-stick and high-temperature alloy knife, strong sealing, no cracking, no coking, no smoke, to protect the quality and safety of products.
Lengthened cutting knife, suitable for large items packaging such as beverages, beer and oil, improve efficiency, good packaging effect.

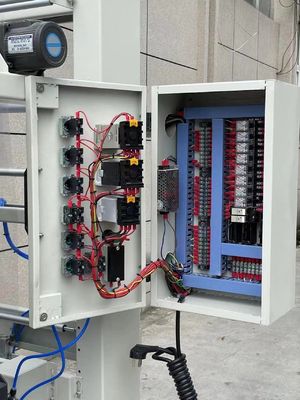

Imported electronic components
Optoelectronics can detect the position of items, Omron digital temperature controller, built-in PID function, sealing knife temperature sensitive and accurate, can be set at will, without worrying about the temperature is not accurate and damage to the product.

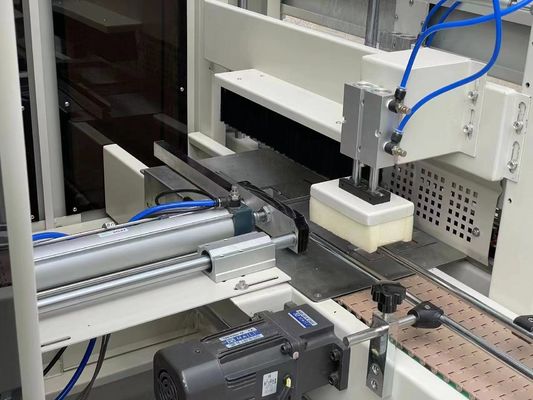

Press material equipment
The cylinder presses down the goods to ensure that the goods will not change position, making the sealing and cutting smooth and perfect.

Air filter
The gas is connected here and the pressure is adjustable. Can exclude the water in the gas, protect the cylinder.

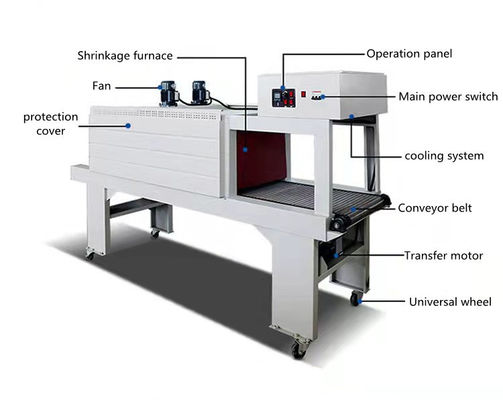

<< Details of film heat tunnle shrink machine >>

1)PE heat shrinkable machine is easy to operate, durable and energy saving. The speed adjustment range is large, the product shrinkage effect is better, and the work efficiency is better improved.
2) Four large power fans have strong wind force, forming hot air circulation in the furnace, which makes the shrinkable film heated more evenly, and the shrinkage effect is more outstanding and beautiful.




Exhibition

Related product

450L film shrink wrap machine

Automatic pillow packing machine
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd.
YIFEI integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
Warmly welcome to visit YIFEI factory.

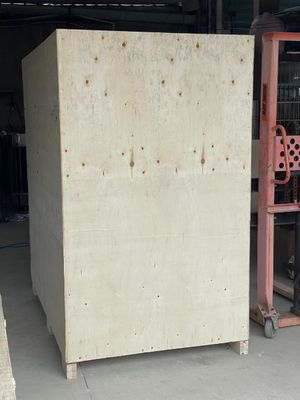

Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.


Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
Customer comments

FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Want to Know more details about this product
