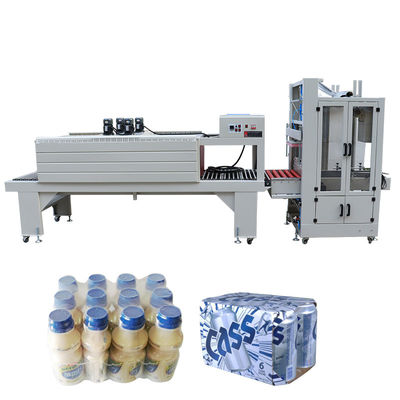

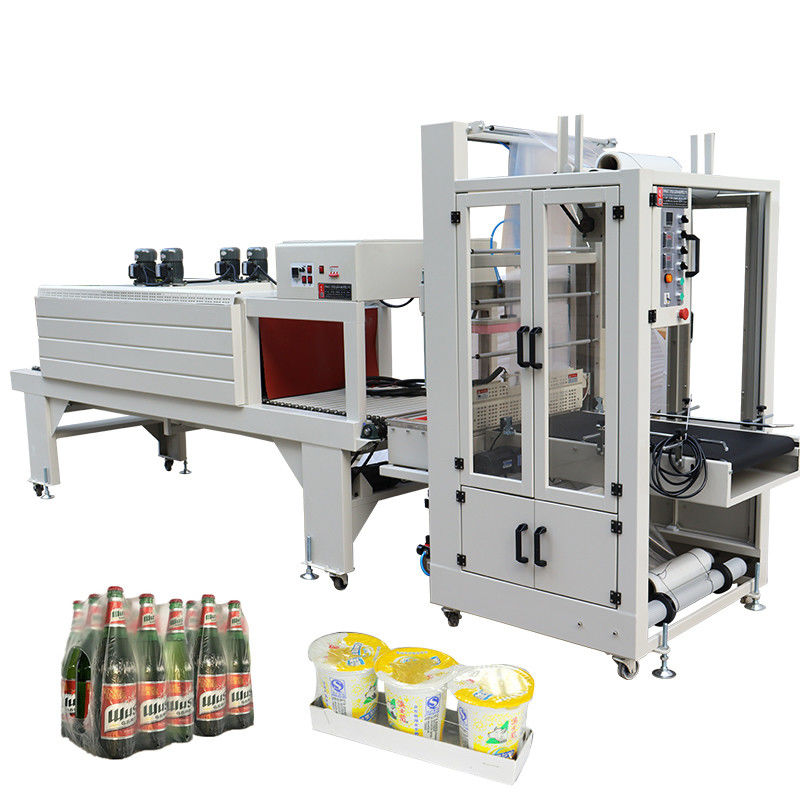

Small PET Bottle PE Film Stretch Shrink Wrapping Sealing Packing Machine Production Line
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $4,000.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case |
|---|---|---|---|
| Packaging Material: | Plastic, Paper, Metal, Glass, Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V, 380V / 220V (Customized) |
| Dimension(L*W*H): | 3115*950*1450mm | Weight: | 300 KG, 300kg |
| After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Gear, Other, Motor, Engine, Bearing, Gearbox, Pump |
| Product Name: | Automatic Film Shrink Wrapping Machinery | Keyword: | Plastic Film Package Shrink Tunnel Wrapping |
| Function: | Tension+Welding+Cutting | Packing Material: | POF/PVC/PP/PE |
| Max Shrink Size: | 750*400mm | Max Sealing Size: | 500*380mm |
| Sealing Speed: | 10pcs/min | Transfer Speed: | 0-10m/min |
| Type: | Wrapping Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Port: | Shanghai Ningbo Guangzhou | ||
Product Description
Product Description
Automatic film sealing and cutting machinePE film heat shrinking machine
Shrink film packaging machine is especially suitable for packaging drinks, beer, drinking water, glass water, cans, plastic bottles, glass bottles,cartons,flooring, ceramics, building materials, hardware, books and so on.It can also be used in wood, steel, ceramics, household appliances, computers and other industries.The system are designed to quickly cool and shape the product after heat shrinkage, ensuring a perfect packaging effect at one time.

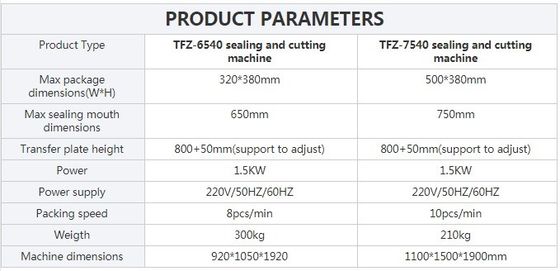

PRODUCT PARAMETERS | ||||
Product Type | TFZ-6540 sealing and cutting machine | TFZ-7540 sealing and cutting machine | ||
Max package dimensions(W*H) | 320*380mm | 500*380mm | ||
Max sealing mouth dimensions | 650mm | 750mm | ||
Transfer plate height | 800+50mm(support to adjust) | 800+50mm(support to adjust) | ||
Power | 1.5KW | 1.5KW | ||
Power supply | 220V/50HZ/60HZ | 220V/50HZ/60HZ | ||
Packing speed | 8pcs/min | 10pcs/min | ||
Weigth | 300kg | 210kg | ||
Machine dimensions | 920*1050*1920 | 1100*1500*1900mm | ||

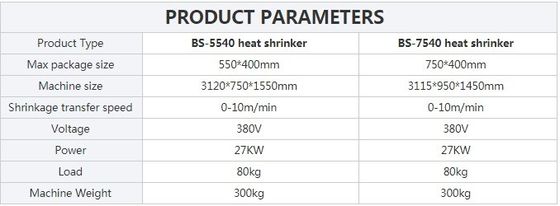

PRODUCT PARAMETERS | ||||

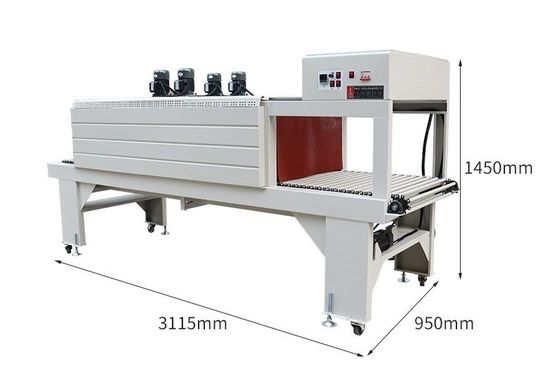

Product Type | BS-5540 heat shrinker | BS-7540 heat shrinker | ||
Max package size | 550*400mm | 750*400mm | ||
Machine size | 3120*750*1550mm | 3115*950*1450mm | ||
Shrinkage transfer speed | 0-10m/min | 0-10m/min | ||
Voltage | 380V | 380V | ||
Power | 27KW | 27KW | ||
Load | 80kg | 80kg | ||
Machine Weight | 300kg | 300kg | ||
* Support custom production line
It can be matched with other equipment for production line operation to better improve efficiency 、 save manpower & material resources. If you are interested, please contact us.
Sample
Product Details

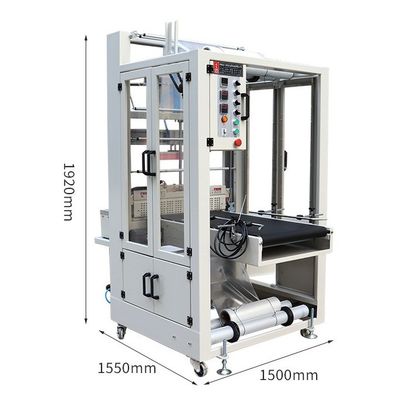

Details of TFZ-7540 sealing and cutting machine
Imported coating alloy cutter
The cutter adopts American DuPont Teflon coating, anti-stick and high-temperature alloy knife, strong sealing, no cracking, no coking, no smoke, to protect the quality and safety of products.
Lengthened cutting knife, suitable for large items packaging such as beverages, beer and oil, improve efficiency, good packaging effect.
Imported electronic components
Optoelectronics can detect the position of items, Omron digital temperature controller, built-in PID function, sealing knife temperature sensitive and accurate, can be set at will, without worrying about the temperature is not accurate and damage to the product.
Press material equipment
The cylinder presses down the goods to ensure that the goods will not change position, making the sealing and cutting smooth and perfect.
Air filter
The gas is connected here and the pressure is adjustable. Can exclude the water in the gas, protect the cylinder.
Details of shrinking machine
1)PE heat shrinkable machine is easy to operate, durable and energy saving. The speed adjustment range is large, the product shrinkage effect is better, and the work efficiency is better improved.
2) Four large power fans have strong wind force, forming hot air circulation in the furnace, which makes the shrinkable film heated more evenly, and the shrinkage effect is more outstanding and beautiful.
3)Chain conveying more stable contraction effect is good. Large weight bearing and long life.
