Electric Driven Long Industry Tube Shrink Packing Machine for Automatic Egg Film Panel
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $1,700.00/sets 1-4 sets |
|---|---|
| Packaging Details: | WOODEN |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case |
|---|---|---|---|
| Packaging Material: | Plastic, Paper, Metal, Glass, Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V, 380V / 220V |
| Dimension(L*W*H): | 170*94*175mm | Weight: | 360 KG |
| After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Gear, Other, Motor, Engine, Bearing, Gearbox, Pump |
| Product Name: | Automatic Side Sealing Shrink Wrap Machine | Keyword: | Heat Shrink Tunnel Packing Side Sealer |
| Function: | Cutting And Sealing Shrinking | Packing Material: | POF/PVC/PP/PE |
| Max Shrink Size: | 200*95*40mm | Max Sealing Size: | Width 95mm,length:unlimit |
| Advantage: | Meet Wrapping Technical Requestments | Transfer Speed: | 0-10m/min |
| Customize: | Provide | Type: | Wrapping Machine |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | Showroom Location: | None |
| Condition: | New | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Port: | Shanghai Ningbo Guangzhou |
Product Description
Product Description

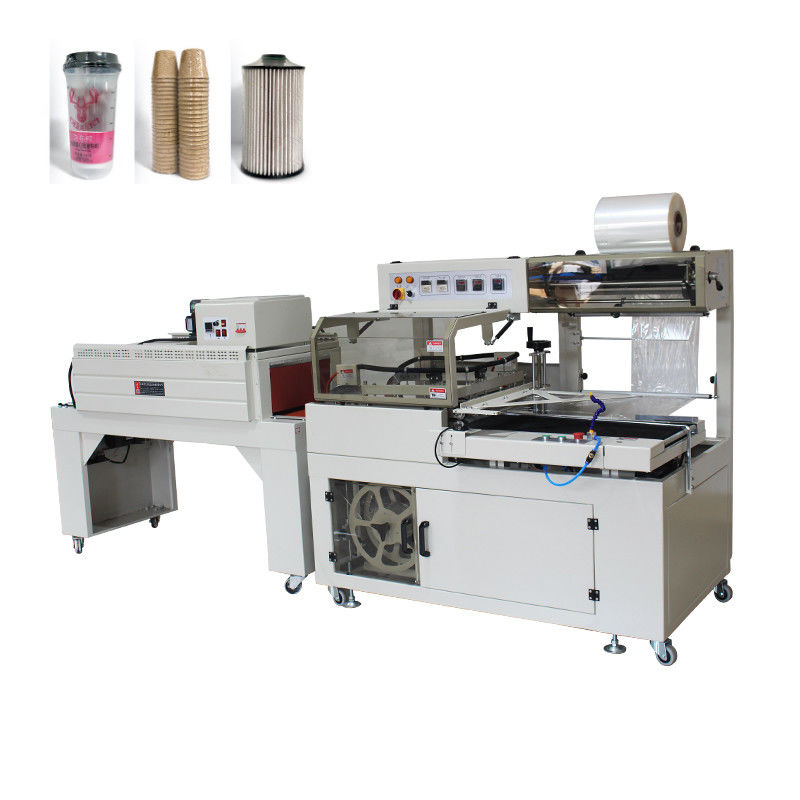

Automatic film side sealing and cutting machineheat shrinking machine
1>Unlimited product length such as industry tube. 2>Suitable for packaging slightly higher products,cosmetic medicine box and so on.
Sealer and cutter parameter | ||
Product Type | BF-450 | |
Voltage | 220V 50HZ/60HZ | |
Max Packaging height | 15cm | |
Power | 1.5KW | |
Sealing dimension | length: unlimit width:45cm | |
Machine dimension | 170*94*145cm | |
Packing speed | 15m/min | |
Weigth | 310kg | |
Heat shrinker parameter | ||
Product Type | BS-4525N | |
Package size | 150*45*25cm | |
Machine size | 190*70*138cm | |
Shrinkage transfer speed | 0-10m/min | |
Voltage | 380V | |
Power | 12KW | |
Load | 30kg | |
Machine Weight | 140kg | |
The length is not limited, and objects with large length can be packing shrink.
A wide range of applications: packaging electronic components, hardware books, drugs, printed matter, color boxes, greeting cards,food and beverage, textiles, cosmetics, cups, tea, etc. Sealing and cutting.
Product Details

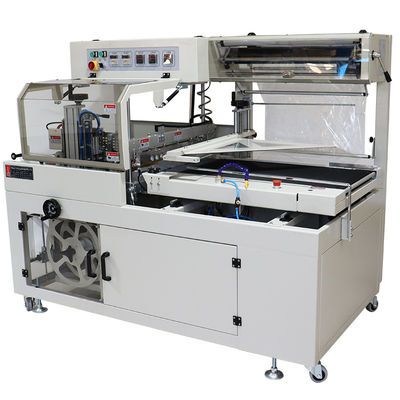

Side sealer and cutter details

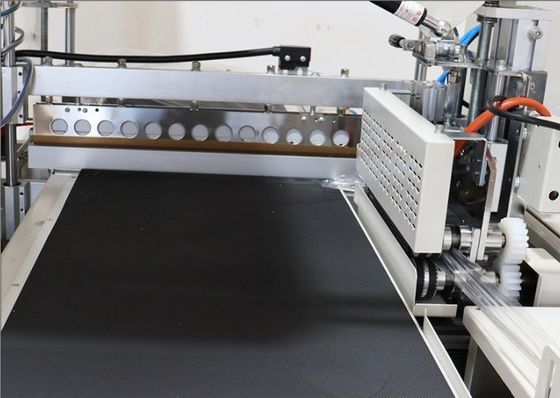

High quality alloy cutter
The sealing and cutting knife adopts imported DuPont Teflon coating, anti adhesion and high temperature resistant alloy knife.
knife height adjustment
Turn the hand wheel to adjust the longitudinal knife opening height.

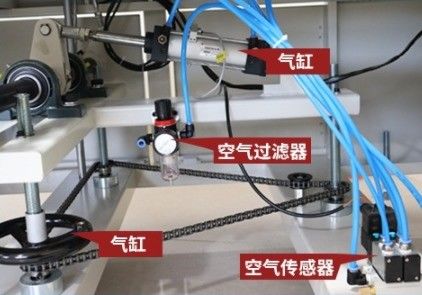

Pneumatic device
The gas reaches here through the gas nozzle to control the automatic sealing and cutting of the cutter.

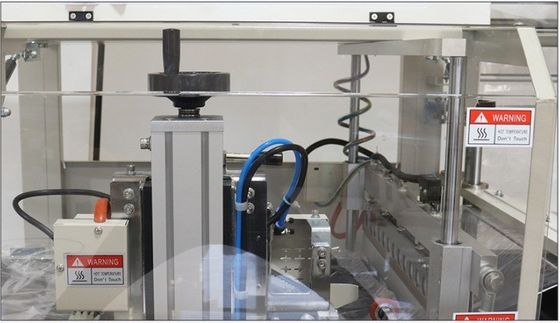

Safe use of protective cover / alarm device
The sealing and cutting part is equipped with glass protective cover and self alarm function for safe use.
Imported photoelectric induction
Automatic detection of products to ensure accurate sealing and cutting positioning.
Simple intelligent control panel
Rich functions and more intelligent. Adopts international brand electrical components such as Omron.

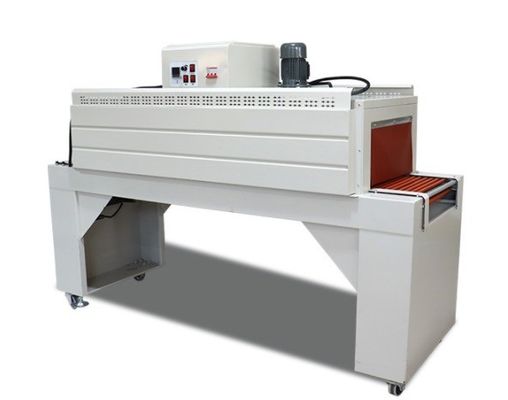

Heat shrinker details
Air jet constant temperature heat shrinkable
Adopts heat dissipation pipe heating and high-speed hot air circulation. It has good shrinkage effect. It is suitable for PVC, POF, PP and other shrinkable films, especially POF shrinkable films.
Control panel
The operation is simple and easy to understand, with speed regulation function. Press the emergency stop button to stop the machine.
High power fan
With high-power motor and strong wind force, hot air circulation is formed in the furnace.
Adopt new roller
The outer cover is made of silica gel, resistant to high temperature, high temperature, wear resistance, no scalding film and deformation, and can be used for a long time.
Sample
Certifications
Exhibition
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd.
1、Our company integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery.
2、The machine is affixed with CE certification, meets export standards and is exported to the world.
3、 It has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO.....
4、24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D
Packing & Delivery
Our Advantages
*Best product and factory price
*On-time delivery and the shortest delivery time.
*OEM and customized service.
*User manuals will go with relative machines.
*User manuals will go with relative machines.
*1-Year warranty If our product cannot function properly within 12 months,
we'll offer spare parts for free ; and you need to pay for the delivery.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us
without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us
without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
FAQ
Q: How to find a Packing machine suitable for my product? A:Tell me about your product details. 1. What kind of product you have.
2. The size of your product( the length, width, and height).
A:We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
