Nitrogen Gas Flushing Capsule Packaging Vacuum Skin Packing Machine for Meat Food
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Y-F |
| Certification: | CE/ISO9001 |
Payment & Shipping Terms:
| Price: | $800.00/sets 1-4 sets |
|---|---|
| Packaging Details: | Standard export wooden case |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Vacuum Packing Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case |
| Packaging Material: | Plastic | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric | Voltage: | 220V/380V, 220V/380V 50HZ/60HZ |
| Weight: | 250 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Product Name: | Double Chamber Vacuum Packing Machine |
| Usage: | Cartons, Bags, Film, Case, Bags, Film, Foil, Pouch | Function: | Vacuum Sealer |
| Chamber Material: | Stainless Steel | Model: | DZ-400/DZ-500/DZ-600 |
| Item: | Double Chamber Vacuum Packaging Machinery | Number Of Sealing Strips: | 2pcs/chamber |
| Sealing Length: | 400 Mm/500 Mm/600 Mm | Seal Width: | 10mm |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| Marketing Type: | New Product 2020 | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| Port: | Shanghai Ningbo Guangzhou | ||
Product Description
Product Description

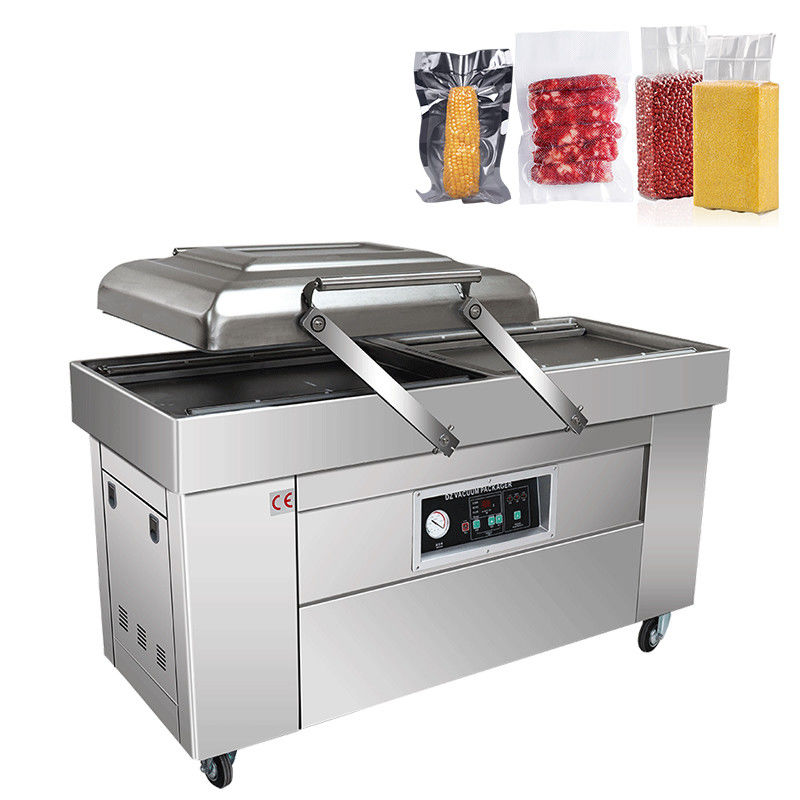

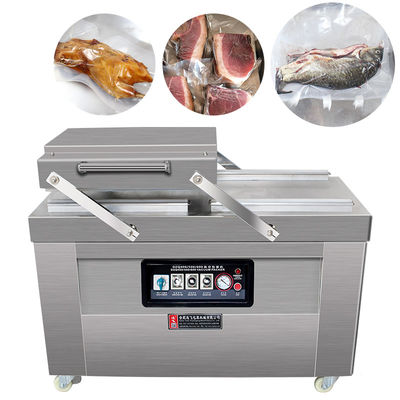

Industrial automatic double chamber vacuum bag packing packaging sealing sealer machine for food
PRODUCT STRUCTURE
PRODUCT PARAMETER
Flat type:
Model | DZ400/2S-P | DZ500/2S-P | DZ600/2S-P | ||
Chamber Size | 40*37*7cm | 50*43*7cm | 60*43*9cm | ||
Seal Size | 40*1cm | 50*1cm | 60*1cm | ||
Machine Size | 107*51*97cm | 120*57*97cm | 141*59*97cm | ||
Power | 0.9KW | 1.5KW | 1.5KW | ||
Voltage | 220V/50HZ | 380V/50HZ | 380V/50HZ | ||
Work Efficiency | 1~4times/min | ||||
Pumping Speed | 20m3/h | 40m3/h | 40m3/h | ||
Pump Qty. | 1 | 2 | 2 | ||
Weight | 150KG | 200KG | 255KG | ||
Model | 400/2S-X | 500/2S-X | 600/2S-X | 600/2S-XS | |||
Chamber Size | 40*40*12cm | 50*43*12cm | 60*43*12cm | 60*43*12cm | |||
Seal Size | 40*1cm | 50*1cm | 60*1cm | 60*1cm | |||
Machine Size | 107*54*97cm | 127*60*102cm | 145*60*103cm | 153*81*113 cm | |||
Power | 0.9KW | 380V/1.5KW 220V/1.8KW | 380V/1.5KW 220V/1.8KW | 2.25KW | |||
Voltage | 220V/50HZ | 380V/50HZ | |||||
Work Efficiency | 1~4 times/min | ||||||
Pumping Speed | 20m3/h | 40m3/h | 40m3/h | 60m3/h | |||
Pumps Qty. | 1 | 2 | 2 | 3 | |||
Weight | 120KG | 170KG | 210KG | 220KG | |||
Don't need special vacuum bag any more
Vacuum machine does not limit bags, all kinds of vacuum bags can be used
Main Features:
1. Double chamber, high efficient packing vacuum machine.
2.Material of Main Structure: 304 stainless steel body.
3.Electrical requirement and plug could be custom according to customer requirement.
4.The products can be prevented from oxidation, going mould,insects or getting damp, thus can be kept fresh for longer time.
5.Can finish the whole programs of vacuum extraction, gas flushing (optional) , sealing, cooling and exhaust automatically.
6.The vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work.
4.The products can be prevented from oxidation, going mould,insects or getting damp, thus can be kept fresh for longer time.
5.Can finish the whole programs of vacuum extraction, gas flushing (optional) , sealing, cooling and exhaust automatically.
6.The vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work.
7.We can provide OEM & ODM for different company with deep vacuum chamber, automatic swing lid, control panel, vacuum pump, gas filling, full 304SS etc.
Detailed description of the method of operation:
1. Plug in the power (220V or 380V).
2. Turn on the power button.
3. Adjust the pumping time (about 20-30 seconds).
4. Adjust the sealing time (about 3 seconds).
5. Adjust the cooling time (about 3 seconds).
6. Installed items, placed inside the bag sealed.
7. Press the top cover to operate the vacuum gauge back to zero to complete the work.
1. Plug in the power (220V or 380V).
2. Turn on the power button.
3. Adjust the pumping time (about 20-30 seconds).
4. Adjust the sealing time (about 3 seconds).
5. Adjust the cooling time (about 3 seconds).
6. Installed items, placed inside the bag sealed.
7. Press the top cover to operate the vacuum gauge back to zero to complete the work.
Product Details

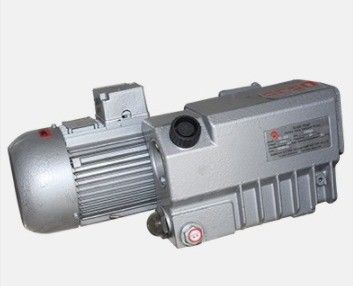

Industrial pump
Large industrial pump, stable operation,
full power, low noise
CE certifications
The machine with CE stickers.

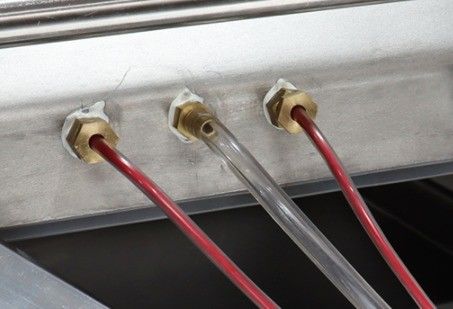

Copper three-way solar term mouth
good air tightness, long and durable.
Sealing strip & printing code
By loading the printing code into the small hole on the back of the silica gel strip, the date can be printed.The vacuum sealing printing can be completed at one time, which is convenient and quick, and greatly improves the efficiency.
Emergency stop switch
humanized design, to prevent emergency stop machine operation.
Double swing arm
More easily switch between two vacuum chambers.
Intelligent control panel
Easy operate and adjust.(The flat type is Knob control panel)
Two kinds of table surfaces
Including auxiliary pad and flat groove are presented according to your needs.

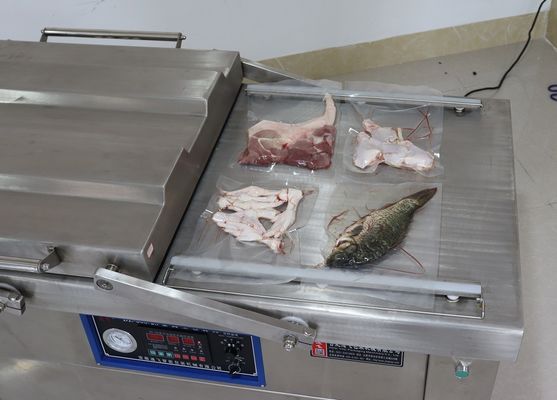

Sample
