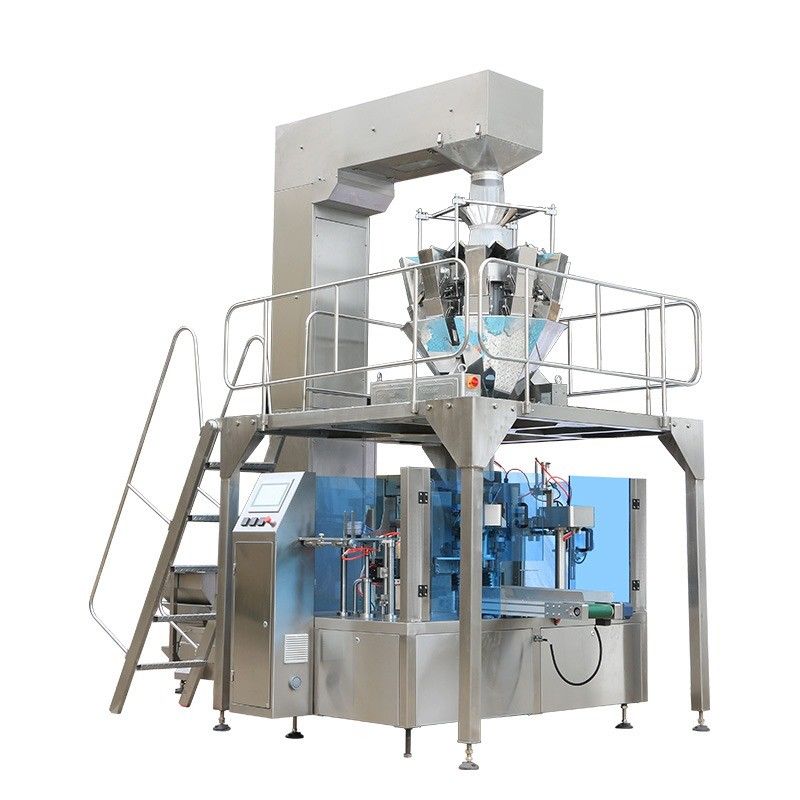

500g Ready Made Pouches Stand Up Bag Filling Seal Packing Machine for Mixed Oats
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
Payment & Shipping Terms:
| Price: | $28,000.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Automatic Production Line | Packaging Type: | Bags, Pouch |
|---|---|---|---|
| Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380V |
| Dimension(L*W*H): | 1645mm*1645mm*1640mm | Weight: | 2000 KG |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, 1 Year | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Gear, Motor, Engine, Bearing, Gearbox, Other |
| Product Name: | Rotary Packing Machine | Keyword: | Ready Made Bag Packing Machine |
| Packing Material: | Granule Liquid Powder | Packing Speed: | 20-70 Bags |
| Film Material: | PA/PE,PET/PE | Machine Type: | Multi-function Packing Machine |
| Packing Type: | Ready Made Bags | Advantage: | High Packing Speed |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Condition: | New |
Product Description
Product Description
Ready-bag packaging machine, suitable for already made bag packaging, 20-70 bags per minute, the packaging effect is good
Specification

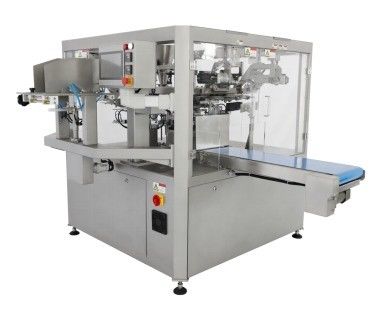

Name | Rotary bag feeder |
Model | YF-210C |
Material | 304 stainless steel |
Pneumatic component | SMC AirTAC |
Bags size | W:160-300mm L:100-400mm Printer require bags length more than 140mm |
Bag material | PA/PE、PET/PE Aluminum film and other heat sealing film |
Filling weight | 5-1500g |
Packing speed | 10-50 bags/minute |
Weighing accuracy | <+- 1% |
Workflow | 1,Feeding bags 2,Printer date 3,Open bag 4,Blanking 5,Poke material 6,Poke material 7,Sealing bag 8, Sealing bag |
Voltage | 380V 3 phase 50hz |
Air compress | >0.35m3/minute |
Machine weight | 2000kg |
Machine size | 1645*1645*1640mm |
Optional equipment | Screw weighing, linear weighing, measuring cup, screw feeding machine, weight sorting machine, metal detector, vacuum |
Select the right machine configuration according to the material
Product Details
Bag bin size can be adjusted
Eight station bag width can be adjusted, take the bag smoothly
Automatic assembly line coding printer
Open bag suction cup is non-slip, high success rate
When empty bags and unopened bags are detected, the machine will automatically stop feeding
Automatic blanking position, customized according to different products
Bag full detection device, detected empty bag, will automatically discard the bag without sealing, can be used twice bag
Stainless steel Teflon edge seal, neat and beautiful
Belt conveyor finished products, customized according to the product
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd.
YIFEI integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
Warmly welcome to visit YIFEI factory.
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
