PLC Touch Screen
 |
20-1000ml Measuring Range Sachet Coffee Powder Filling Machine at 960*720*2100mm Size
Product Details:
| Place of Origin: | Anhui, China |
Payment & Shipping Terms:
| Price: | $6,000.00/sets 1-2 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Chemical | Packaging Type: | Stand-up Pouch, Bags, Pouch |
|---|---|---|---|
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/50HZ, 220V/50HZ/1.5KW |
| Dimension(L*W*H): | 960*720*2100mm, 960*720*2100mm | Weight: | 650 KG, 650kg |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Not Available | Core Components: | Other |
| Model: | YFP-80 | Measuring Range: | 20-1000ml |
| Bag Length: | 40-250mm | Bag Width: | 40-200mm |
| Packaging Speed: | 10-20Bags/Min | Gas Source: | ≥0.4m³/ Min |
| After Warranty Service: | Video Technical Support, Online Support | Condition: | New |
Product Description
Product Paremeter

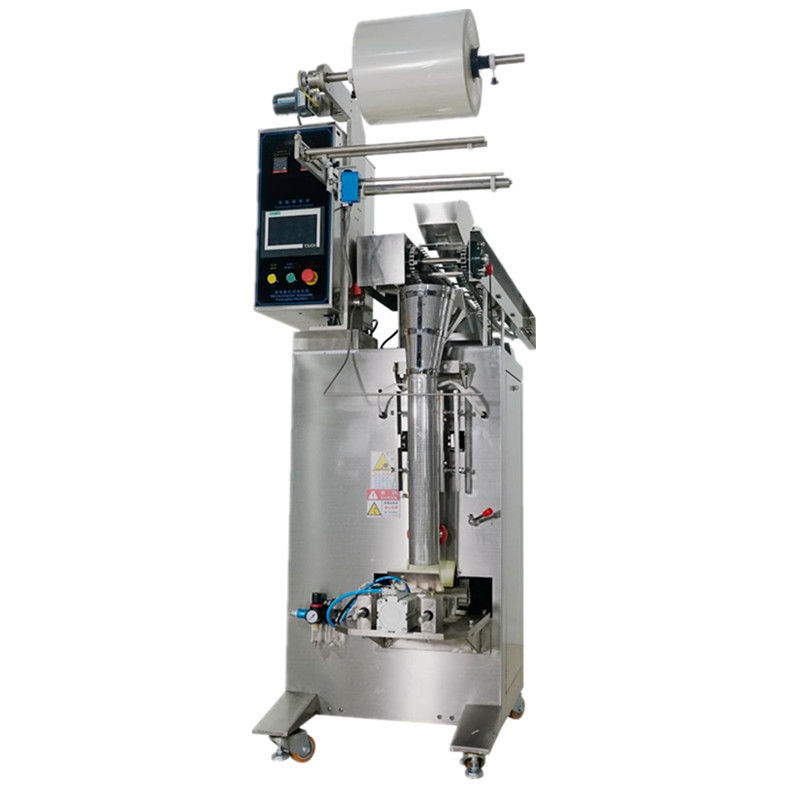

YFP-80 Conveyor Hopper Packing Machine | ||
Model | YFP-80 | |
Measuring Range | 20-1000ml | |
Bag Length | 40-250mm | |
Bag Width | 40-200mm | |
Packaging Speed | 10-20Bags/Min | |
Dimension | 960*720*2100 mm | |
Weight | 650kg | |
Voltage | 220V/50HZ/1.5KW | |
Product Features
1.The machine is suitable for manual measurement packaging of irregular materials.
2.All the works of bag making,measuring,filling,sealing,cutting and counting can be done
automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3.The touch screen operation,PLC control,drive stepper motor to control the bag
length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4.Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,
Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

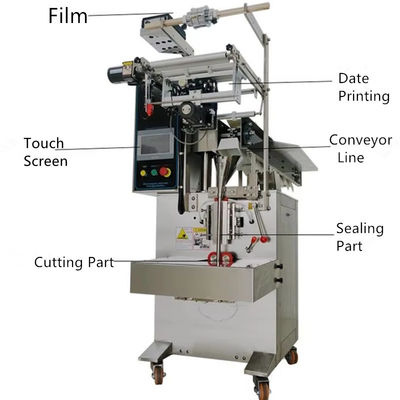

Product Details

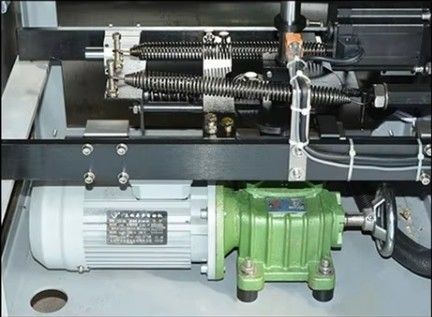

Smart Engine
Packaging&Shipping
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
Certifications
FAQ
Q1.Why Choose Us?
1). 20+ years manufacture in packing machine
2). 100% QC inspection before shipment
3). 12 months warranty
4). Product Certificated by CE
3). 12 months warranty
4). Product Certificated by CE
Q2.Are you trading company or manufacturer ?
We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q3:How to find a Packing machine suitable for my product?
Please let us know your product and size so that we can recommend the suitable model for you.
Q4:How can I know your machine works well?
Before delivery, we shall test the machine working condition for you.
