0.8L Vertical Powder Granule Sachet Bag Packing Machine for Coffee Beans Milk Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Y-F |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $11,400.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Food & Beverage Factory, Dried Fruits Packing Machine | Packaging Type: | Stand-up Pouch, Bags, Film, Foil, Pouch, Case |
|---|---|---|---|
| Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/50HZ |
| Dimension(L*W*H): | 1350*1000*2350 | Weight: | 350 KG |
| After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Warranty: | 1 Year |
| Key Selling Points: | High Efficiency And High Yield | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Pressure Vessel, Gear, Motor, Engine, Bearing, Gearbox, Pump |
| Type: | Multi-Function Granule Packaging Machine, Wrapping Machine | Product Name: | Granule Powder Liquid Packaging Machinery |
| Name: | Vaccum Sealing Machine | Keyword: | Granule Packing Machine |
| Sealing Form: | Heat Sealing | Function: | FILLING, Sealing, Wrapping, Other Packaging Machines |
| Packing Speed: | 20-100pcs/min | Packing Film Width: | 120-320mm |
| Voltage Type: | 220V/50HZ Single Phase | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Warranty Of Core Components: | 2 Years | Marketing Type: | New Product 2021 |
Product Description
Granule liquid powder packing machine with three servo control, high precision, wide range and fast speed. Multi-heads weighing and roll film packaging machine, does not take up space . We have experience more than 20 years in R & D and we can customize packaging solutions according to your product characteristics.
Just tell us: packing granule liqiud or podwer?
how many bags of per minute?
packing weigh and film width or bags size?
Technical Parameters
Unit type | YF-180 | M12 L0.8 | |
Specification of equipment | Film width 110mm—320mm | 12 Heads 0.8LHopper | |
Productivity effect | 20-100 bag/minute | 20-100 bag/minute | |
Tare | 3-300g（Depending on the material） | 20-100 bag/minute | |
Packaging deviation | (Refer to the matching metering device) | 3-300g（Depending on the material） | |
Navar | servo controller + 10-inch color touch screen | MCU + 10-inch color touch screen | |
Bag shape | Back bag, back foot bag / three sealing bag type | ||
Bag size | L:50—190mm，W:50—150mm/ L:50—190mm，W:50—130mm | ||
Volume film thickness | 0.06—0.09mm | ||
Working power supply | AC220V/50Hz/5KW | ||
Work gas source | 0.4-0.6Mpa/0.2m³/min | ||
Packaging material | PP、PE、PVC、PS、EVA、PET、PVDC+PVC、OPP+CPP ； | ||
Equipment material | Main body 304 Stainless steel material（Packaging Machine & Combination scale） | ||
Equipment size | 1500x900x2500mm | ||
Packing size | 1500*1200*2300mm | ||
Weight of equipment | 800kg | ||
Packing weight | 900kg | ||
Features
1. Products dosing, Filling, Laminate heat sealable pouch making and sealing; 2. Machine frame made of 3mm & 5mm thickness 304 stainless steel with nice appearance realizing strong protection and steady operation.
3. Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting; 4. Simple changing of pouch former, to adapt different pouch size requirement; 5. Intelligent temperature controlling configuration, ensure the artistic and neat sealing; 6. Configure with packaging film pre-pulling device, to enable stable pouch making; 7. easy to change the packaging film.
Application
Suitable for packing for all kinds of grain material,sheet material,strip material and abnormity material which such as
candy,melon seeds, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, fibert,cornpet foodstuff,dilatant foodstuff,hardware and plastic can be weighed by theration.
candy,melon seeds, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, fibert,cornpet foodstuff,dilatant foodstuff,hardware and plastic can be weighed by theration.
Any thermoplastic bag can be packed without limiting the bag type
Product details
1>The intelligent control panel adopts large-size touch control, with simple operation and clear functions
Support language switching, easy to change packaging and set size.
3>Famous electrical configuration equipped , with stable packaging process and long service life and safer use.
4>Air source processor is used to deal with the pressure release during the operation of the machine. The interface is made of stainless steel which is durable and not easy to be damaged.
5>Make bags and sealing process depend on servo controls ,the bag making speed and sealing temperature to form back sealing, three side sealing, four side sealing and other types of bag sealing mouth. Quick out of bag, perfect packaging and sealing.

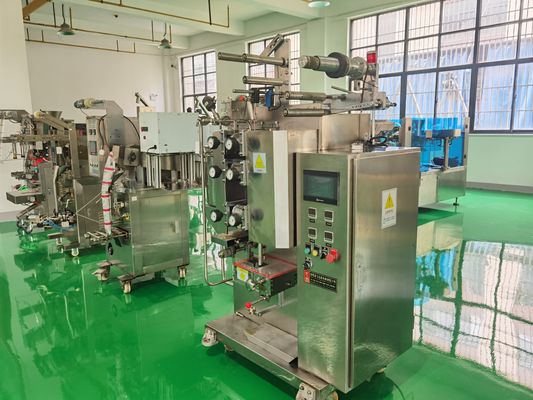

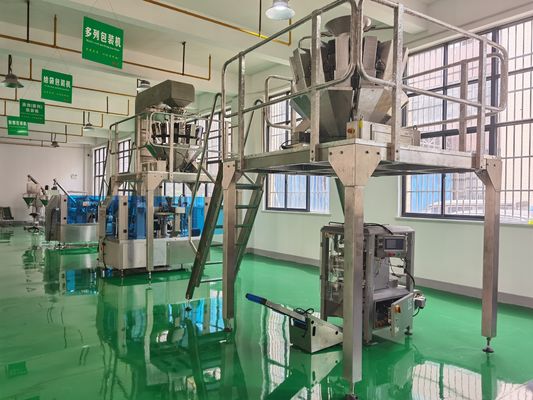

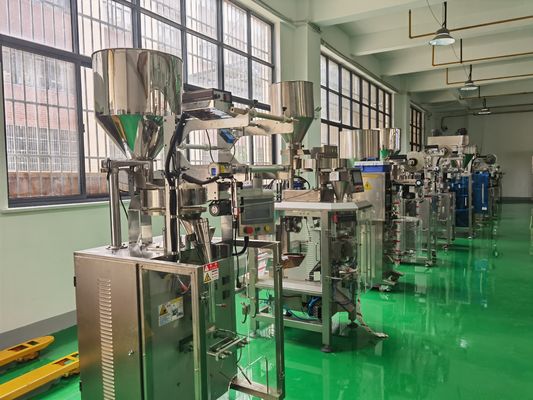

Our Workshop
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd.
YIFEI integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
Warmly welcome to visit YIFEI factory.
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
Customer comments
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
