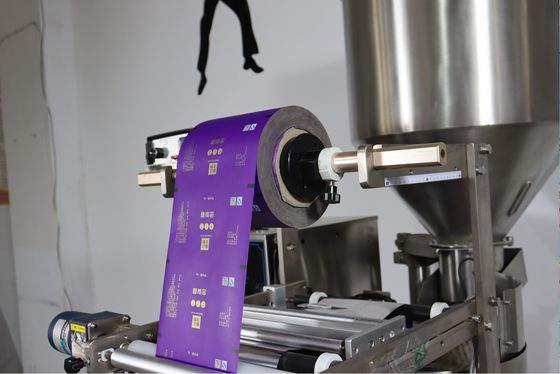

2.Feeding the material to material hopper then start the packing machine
 |

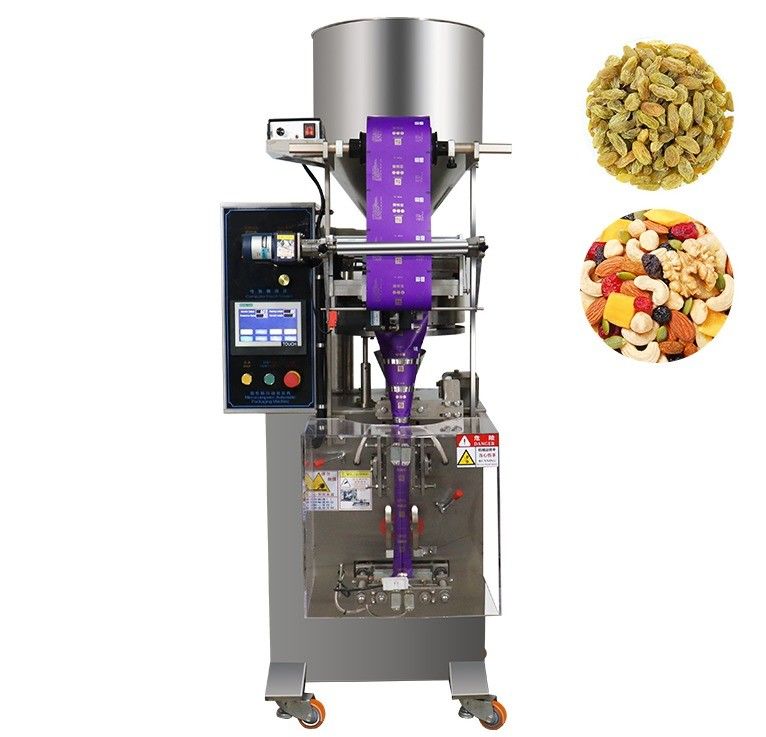

Automatic Vertical Packaging Machine for 1-100g Seeds Easy to Operate and Maintain
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | YF |
Payment & Shipping Terms:
| Price: | $2,598.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Weight (KG): | 400 | Function: | FILLING, Wrapping, Labeling, Sealing |
|---|---|---|---|
| Application: | Food, Beverage, Chemical, Machinery & Hardware | Packaging Type: | Bags, Pouch |
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V |
| Dimension(L*W*H): | 900 * 1100 * 1900 Mm | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | Motor, PLC, Other, Gear, Bearing, Engine, Gearbox |
| After-sales Service Provided: | Video Technical Support, Online Support, Free Spare Parts | Product Name: | Vertical Packing Machine |
| Keyword: | Automatic Snack Food Sugar Packing | Suitable For: | Powder Granule Filling Packing Machine |
| Packing Material: | BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene | Packing Speed: | 30-60bags |
| After Warranty Service: | 1 Year Service | Advantage: | Easy Operation High Efficiency |
| Sealing Type: | 3/4 Sides Sealing/ Backing Sealing | Display: | PLC |
| Customize: | Logo , Forming Molds, Printer | ||
Product Description
Product Description
Granule use cup measuring device
Powder use screw feeding
Liquid use pump filling
Mode | YF-61 |
Speed | 30-60bags/min |
Capacity | 1-100g |
Accuracy | ±0.2g |
Pouch size | L30-170mm W30-130mm |
Power | 220V/50HZ 1.4KW |
Weight | 400KG |
Dimension | L900 * W1100 * H1900 mm |
Support customization, please provide packaging bag size and weight to recommend the right machine model for you
Product details
1.Set the packaging parameters and wait for the sealing temperature to reach the set value.

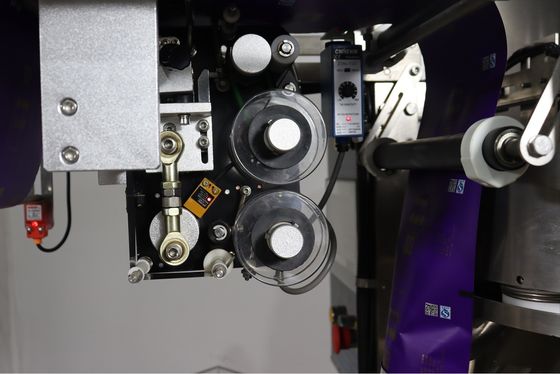

3. Automatically print production date and EXP, auto make bags
4.Screw measuring automatic weighing, auto filling to bags.
5. Automatic sealing bag, automatic pulling film,.
6. Cutter automatic cutting and finished product output, Get the nice finished product
CPU intelligent single chipcomputer system for efficient running.

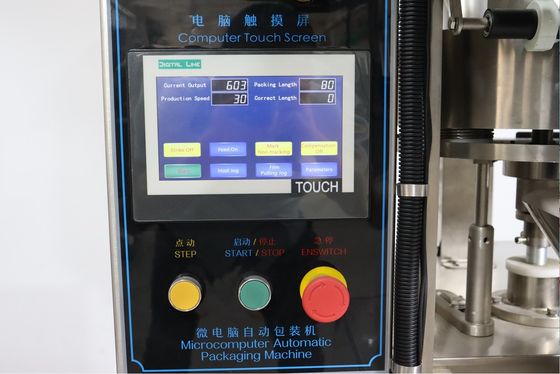

Use large size touch control, simple operation, various functions at a glance
Main Features:

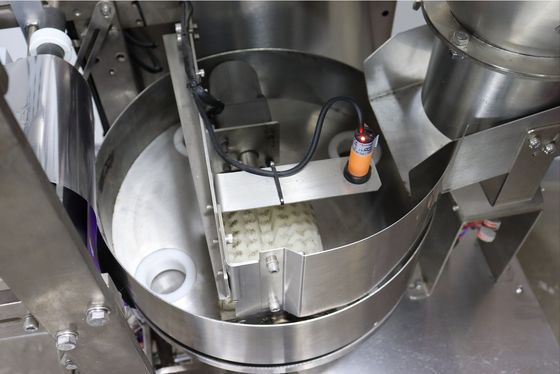

A. 304 volumetric cups for metering, high accuracy and easy operation.
B. CPU intelligent single chip computer system for efficient running.

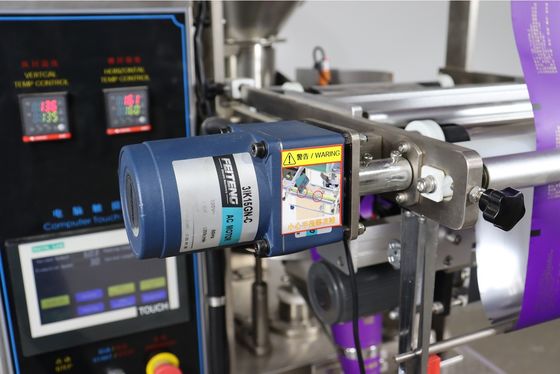

C. Step motor for film drag structure, smooth film running and accurate bag cutting.
D. 7inch touch screen, easy operation and multiple language for choice.
E. Separate PID temperature controller, suitable for various packing materials. Such as aluminium film, paper film, PE
film,water-soluble film and composite film.
F. Articulated bag former structure, enable stable bag forming for perfect bag shape.
G.Sophisticated vertical and horizontal sealing framework achieve the consistency of bag sealing and cutting.
H.Machine automatically finish the process of filling, metering, bag forming, air exhaust, sealing, packing and date printing.
I. Machine is simple operation, holding small space and easy moving.
A. 304 volumetric cups for metering, high accuracy and easy operation.
B. CPU intelligent single chip computer system for efficient running.
C. Step motor for film drag structure, smooth film running and accurate bag cutting.
D. 7inch touch screen, easy operation and multiple language for choice.
E. Separate PID temperature controller, suitable for various packing materials. Such as aluminium film, paper film, PE
film,water-soluble film and composite film.
F. Articulated bag former structure, enable stable bag forming for perfect bag shape.
G.Sophisticated vertical and horizontal sealing framework achieve the consistency of bag sealing and cutting.
H.Machine automatically finish the process of filling, metering, bag forming, air exhaust, sealing, packing and date printing.
I. Machine is simple operation, holding small space and easy moving.
Company Profile
Anhui YIFEI Intelligent Packaging Machinery Co., Ltd.
YIFEI integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
Warmly welcome to visit YIFEI factory.
Packing & Delivery
All machines packing with standard export wooden box in case of the damage during the transportation.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: Wearing parts are given as gifts. If you cooperate for a long time, wearing parts will be provided free of charge for machine life (you need to pay the freight).
Customer comments
FAQ
Q: How to find a Packing machine suitable for my product? A:Please let us know your product and size so that we can recommend you suitable model.
A:We are factory, all machine is made by ourselves and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Want to Know more details about this product
